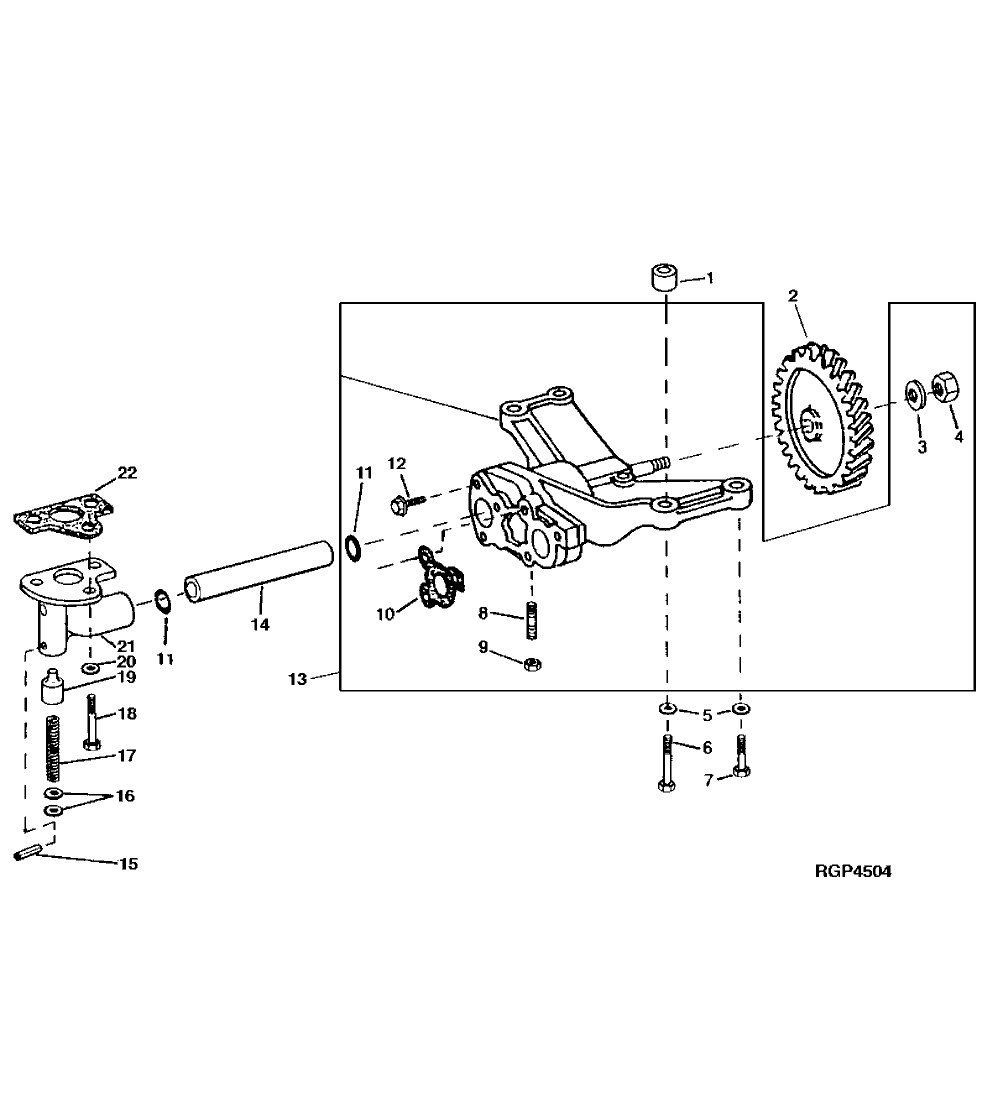

Запчасти John Deere 90 16 - ENGINE OIL PUMP (WITHOUT INTAKE) 407 - ENGINE 4

1

R62930

BUSHING

2шт.

2

R62938

GEAR

1шт.

3

T21242

WASHER

1шт.

4

14H826

NUT

1/2"

1шт.

5

R57696

WASHER

4шт.

6

19H2549

CAP SCREW

3/8" X 1-7/8"

2шт.

7

19H3219

CAP SCREW

3/8" X 1-3/8"

2шт.

8

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

9

14H785

NUT

5/16"

1шт.

10

R100569

GASKET

1шт.

11

R71732

O-RING

2шт.

12

R104628

SCREW

(OIL PUMP INTAKE TO COVER)

3шт.

R104628

SCREW

2шт.

13

RE60622

OIL PUMP

(MARKED R124328)

1шт.

14

R62947

TUBE

1шт.

15

34H283

SPRING PIN

3/16" X 1-1/8"

1шт.

16

24H1287

WASHER

9/32" X 5/8" X 0.065"

3шт.

17

T31636

SPRING

1шт.

18

19H3483

CAP SCREW

3/8" X 1-1/8"

3шт.

19

R63532

VALVE

1шт.

20

24M7239

WASHER

10.700 X 21 X 2.500 MM, (SUB FOR M72490)

3шт.

21

R82177

HOUSING

1шт.

22

R69418

GASKET

1шт.
