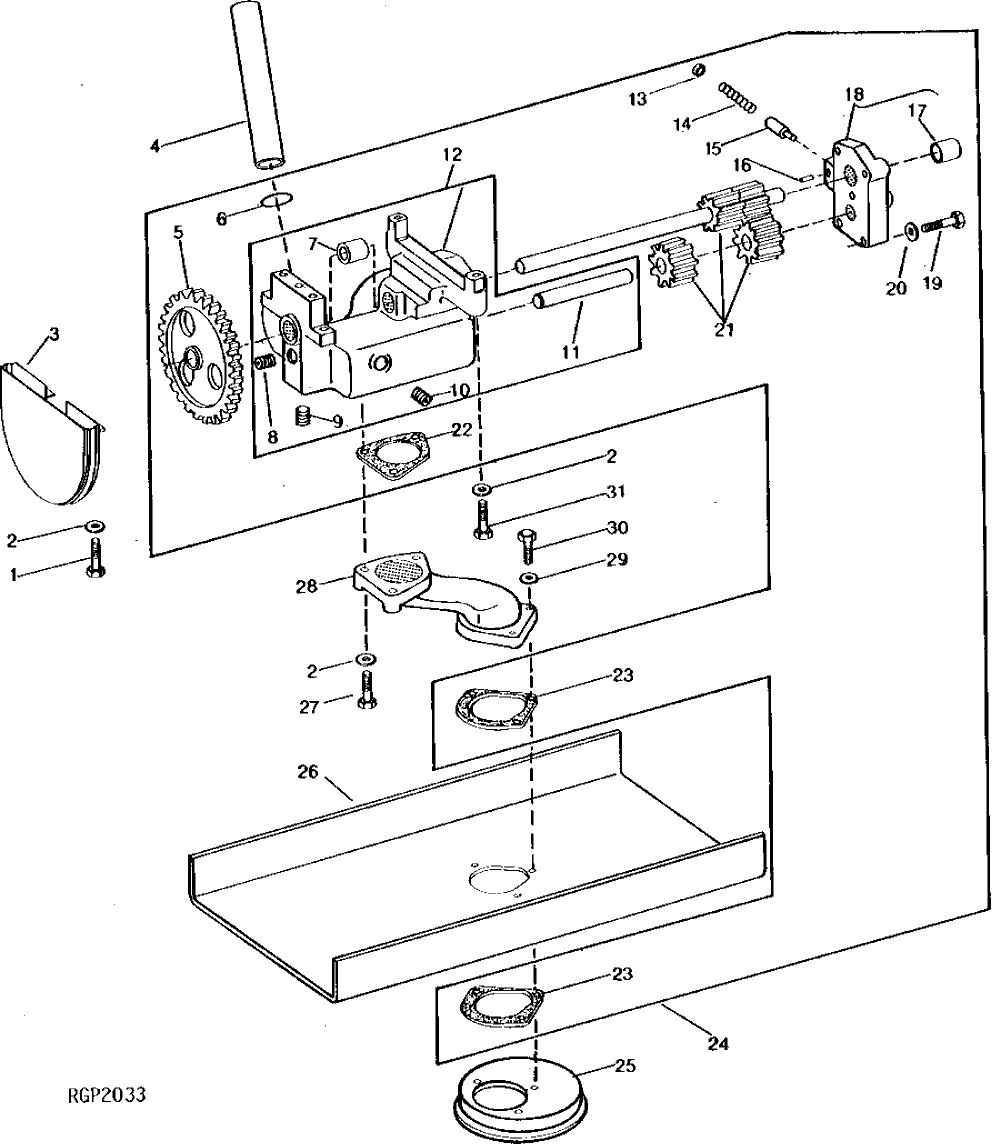

Запчасти John Deere 90 14 - ENGINE OIL PUMP AND INTAKE 407 - ENGINE 4

1

19M7166

CAP SCREW

M10 X 20

3шт.

2

24M7239

WASHER

10.700 X 21 X 2.500 MM, (SUB FOR R42729 OR M72490)

10шт.

3

AR73970

SHIELD

1шт.

4

R61014

LINE

1шт.

5

R61007

GEAR

1шт.

6

R61015

O-RING

1шт.

7

R61004

BUSHING

2шт.

8

R104592

PIPE PLUG

1шт.

9

15H666

PIPE PLUG

3/8"

1шт.

10

15H690

PIPE PLUG

3/4"

1шт.

11

R61003

DOWEL PIN

1шт.

12

RE16105

HOUSING

(MARKED R61002) (SUB FOR AR73966)

1шт.

13

24H1287

WASHER

9/32" X 5/8" X 0.065"

1шт.

14

T31636

SPRING

1шт.

15

R63532

VALVE

1шт.

16

34H284

SPRING PIN

3/16" X 1-1/4"

1шт.

17

R61004

BUSHING

1шт.

18

AR73969

COVER

(MARKED R61008)

1шт.

19

19M7572

CAP SCREW

M10 X 45

4шт.

20

24M7239

WASHER

10.700 X 21 X 2.500 MM, (SUB FOR R42729 OR M72490)

4шт.

21

RE22976

GEAR

(MATCHED SET) (SUB FOR AR89662)

1шт.

22

R61013

GASKET

1шт.

23

R66695

GASKET

2шт.

24

RE22977

PUMP

(SUB FOR AR89661 OR RE11041) ( RE22977 IS NO LONGER AVAILABLE)

1шт.

25

AR75851

OIL PUMP INTAKE

1шт.

26

R66490

ISOLATOR

1шт.

27

19M7358

CAP SCREW

M10 X 40

3шт.

28

R62958

HOUSING

1шт.

29

R40716

WASHER

3шт.

30

19M7513

CAP SCREW

M8 X 30

3шт.

31

19M7742

CAP SCREW

M10 X 65

4шт.
