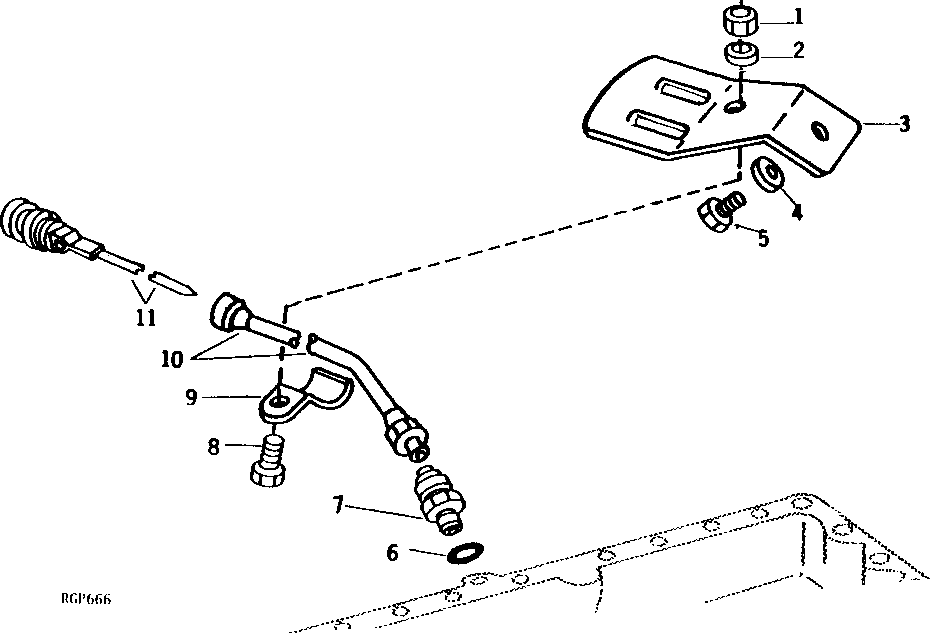

Запчасти John Deere 90 6 - ENGINE OIL DIPSTICK 407 - ENGINE 4

1

14M7274

NUT

M10, (SUB FOR 14M7294)

1шт.

2

12M7066

LOCK WASHER

10 MM

1шт.

3

R62962

BRACKET

1шт.

4

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

5

19M7932

CAP SCREW

M8 X 16, (SUB FOR 19M7162)

1шт.

6

R68718

O-RING

1шт.

7

R39249

ADAPTER FITTING

1шт.

8

19M7166

CAP SCREW

M10 X 20

1шт.

9

R28346

CLAMP

1шт.

10

AR77719

TUBE

1шт.

11

AR77718

DIPSTICK

1шт.
