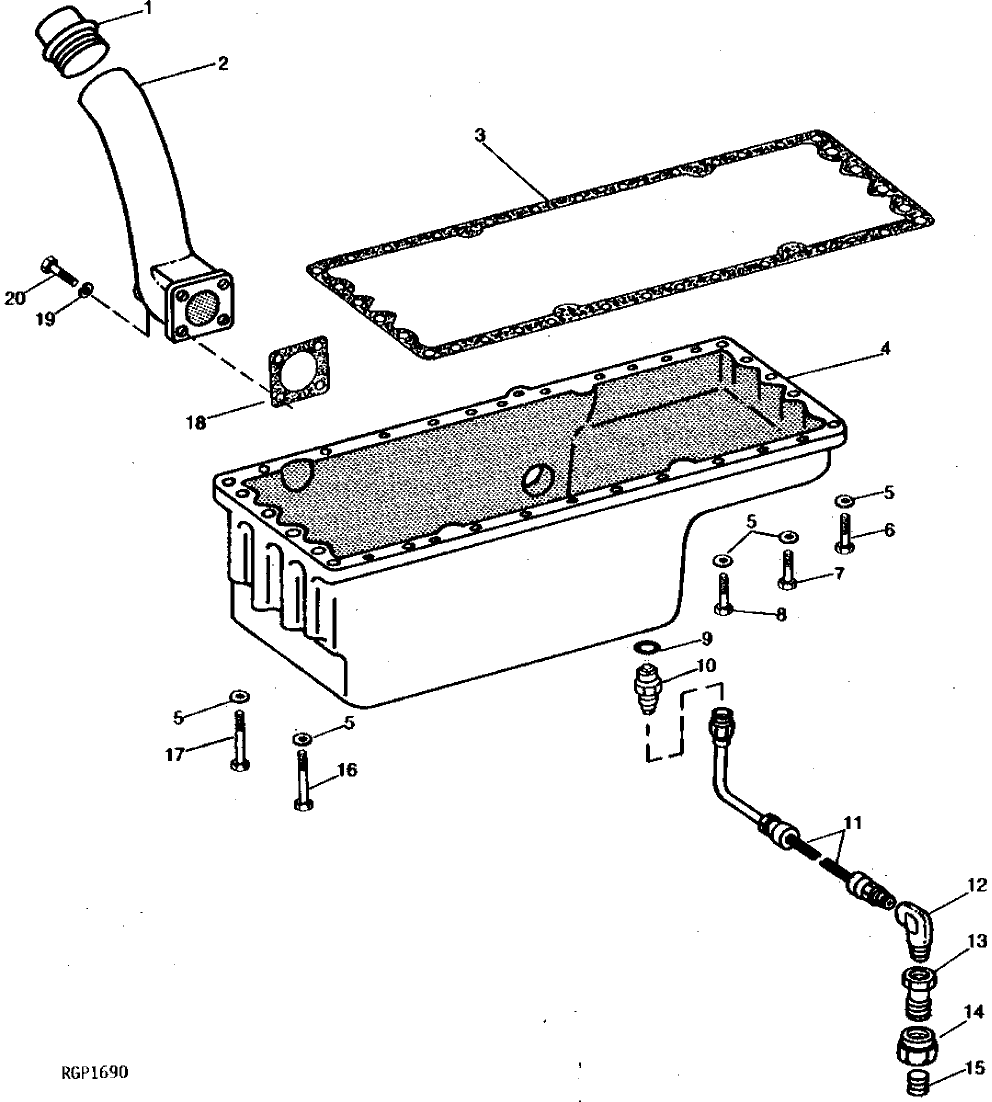

Запчасти John Deere 90 2 - OIL PAN, DRAIN LINE AND FILLER TUBE 407 - ENGINE 4

1

AR76699

PLUG

1шт.

2

R62960

FILLER NECK

1шт.

3

R61505

GASKET

1шт.

4

R62959

OIL PAN

1шт.

5

24H1305

WASHER

13/32" X 13/16" X 0.065"

34шт.

6

19M7658

CAP SCREW

M10 X 50

4шт.

7

19M7358

CAP SCREW

M10 X 40

24шт.

8

19M7572

CAP SCREW

M10 X 45

2шт.

9

R56751

O-RING

1шт.

10

R36075

FITTING

1шт.

11

AT56310

HOSE

1шт.

12

15H602

ELBOW FITTING

(SUB FOR 15H200)

1шт.

13

R56407

FITTING

1шт.

14

T38248

LOCK NUT

1шт.

15

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

1шт.

16

R65525

CAP SCREW

2шт.

17

R65524

CAP SCREW

2шт.

18

R62961

GASKET

1шт.

19

12M7066

LOCK WASHER

10 MM

4шт.

20

19M7358

CAP SCREW

M10 X 40, (LOWER)

2шт.

19M8166

CAP SCREW

M10 X 110, (SUB FOR 19M7346) (UPPER)

2шт.
