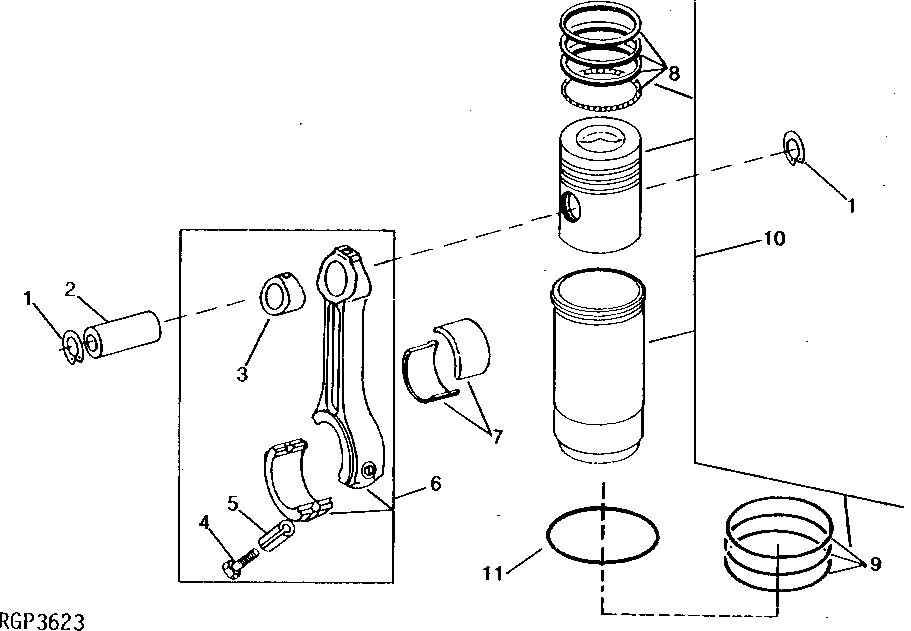

Запчасти John Deere 90 2 - PISTON, RINGS, LINERS AND CONNECTING RODS 403 - ENGINE 4

1

N51168

SNAP RING

12шт.

2

R64451

PISTON PIN

6шт.

3

R69045

BUSHING

(MARKED R63960)

6шт.

4

R66453

CAP SCREW

12шт.

5

R48317

SLEEVE

12шт.

6

CONNECTING ROD

( AR79366 NO LONGER AVAILABLE) (MARKED R63959) (SUB SE500499)

6шт.

SE500499

CONNECTING ROD REMAN

6шт.

7

AR101271

BEARING

STD (PKG. OF (2) R74671)

ARшт.

AR104129

BEARING

0.05 MM (.002") US (PKG (2) R76649)

ARшт.

AR104130

BEARING

0.25 MM (.010") US (PKG (2) R76650)

ARшт.

AR104131

BEARING

0.50 MM (.020") US (PKG (2) R76651)

ARшт.

AR104132

BEARING

0.75 MM (.030") US (PKG (2) R76652)

ARшт.

8

AR82355

PISTON RING KIT

1шт.

9

AR72351

O-RING KIT

6шт.

10

RE53215

PISTON-LINER KIT

(A) (MARKED RE57949)

6шт.

11

R81276

SHIM

0.05 MM

ARшт.

R81277

SHIM

0.10 MM

ARшт.
