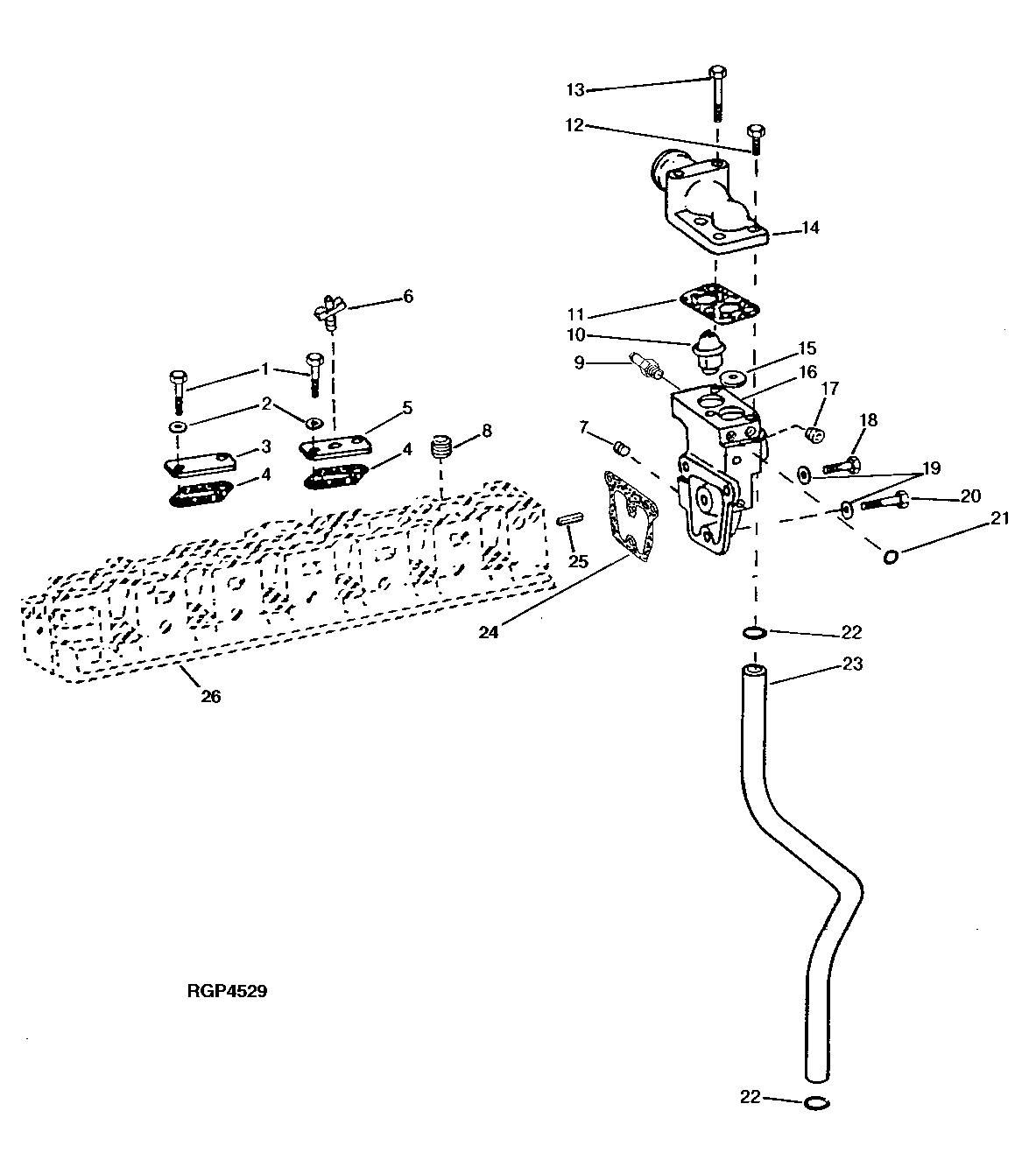

Запчасти John Deere 92ELC 65 - Water Manifold / Thermostat 0418 Thermostats, Housing And Water Piping 6076AT030 6076AT030

1

19H2284

Cap Screw

3/8" X 7/8"

4шт.

2

24H1305

Washer

13/32" X 13/16" X 0.065"

4шт.

3

R86061

Strap

1шт.

R86061

Strap

1шт.

4

R88397

Gasket

2шт.

5

R114160

Cover

1шт.

6

AT13740

Drain Valve

1шт.

7

R104592

Pipe Plug

1шт.

8

15H691

Pipe Bushing

1/8"

1шт.

9

H33801

Hose Fitting

1шт.

10

AR48675

Thermostat

82°C (180°F)

1шт.

11

R124607

Gasket

(SUB FOR R46479)

1шт.

12

19H3239

Cap Screw

3/8" X 1-1/4"

2шт.

13

19H2639

Cap Screw

3/8" X 3-3/8"

1шт.

14

R89439

Cover

1шт.

15

R100671

Plug

1шт.

16

R519578

Manifold

(MARKED R519578) (ALSO ORDER R77673 AN D R82719) (SUB FOR R109859 OR R108604)

1шт.

17

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

2шт.

18

19H3175

Cap Screw

3/8" X 3-5/8"

2шт.

19

R57696

Washer

3шт.

20

19H3217

Cap Screw

3/8" X 1-3/4"

1шт.

21

R77673

O-Ring

1шт.

R82719

Fitting Plug

1шт.

22

R72328

O-Ring

2шт.

23

R108630

Tube

1шт.

24

R86062

Gasket

Not As Shown

1шт.

25

34H329

Spring Pin

5/16" X 1-1/4"

1шт.

26

Cylinder Head

1шт.
