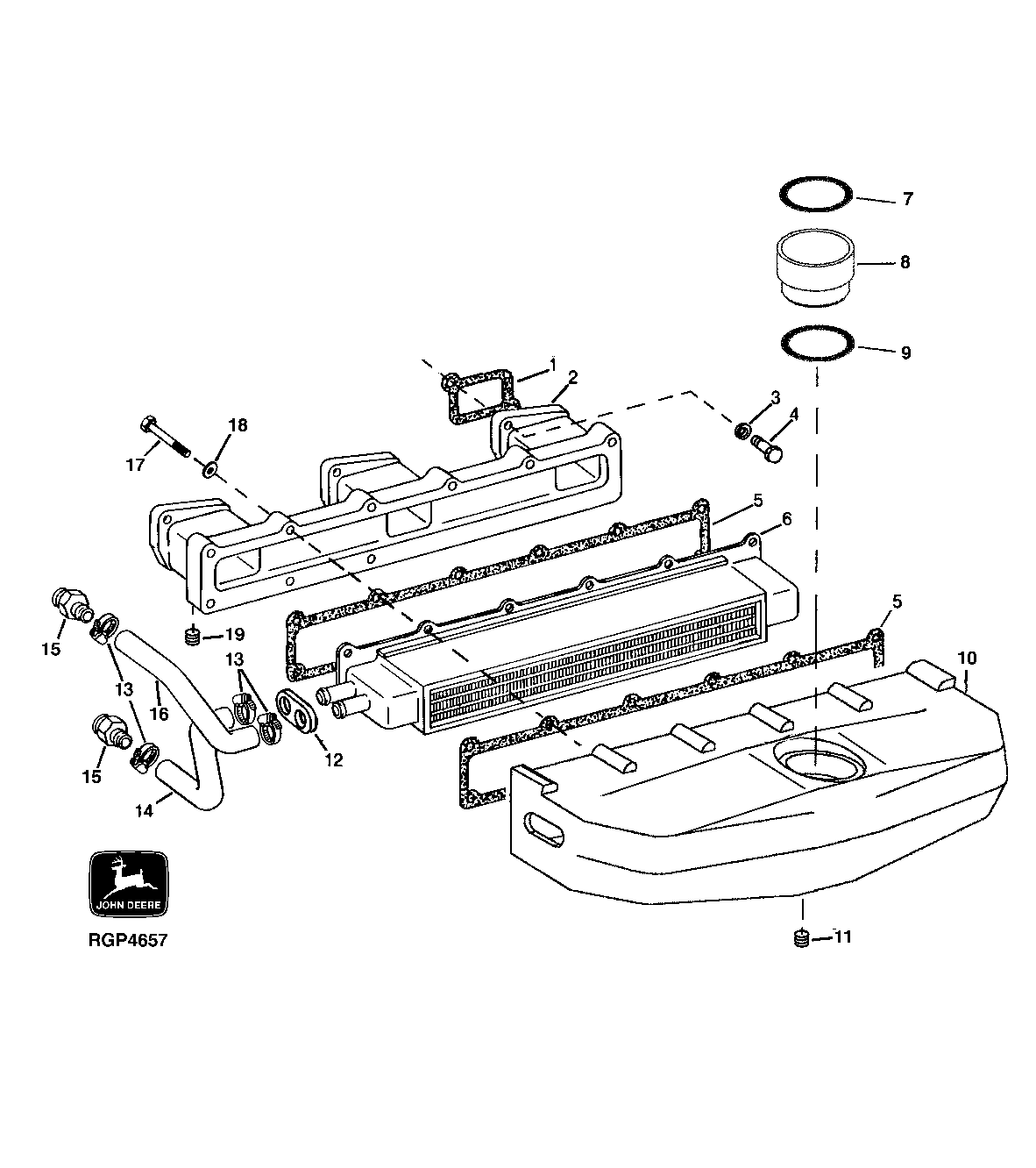

Запчасти John Deere 92ELC 59 - Aftercooler And Intake Manifold (574871 - ) 0414 Intake Manifold 6076AT030 6076AT030

1

R130573

Gasket

(SUB FOR R102838, APPL)

3шт.

2

R127427

Intake Manifold

(SUB R131652) (AS SHOWN)

1шт.

R131652

Intake Manifold

Not As Shown

1шт.

3

24H1682

Washer

13/32" X 7/8" X 0.120"

6шт.

4

19H1651

Cap Screw

3/8" X 1-1/2"

6шт.

5

R88993

Gasket

2шт.

6

RE31029

Intercooler

1шт.

7

R49424

O-Ring

1шт.

8

R127429

Coupling

1шт.

9

R57517

O-Ring

1шт.

10

R127428

Cover

1шт.

11

15H690

Pipe Plug

3/4" (TO INTAKE MANIFOLD)

1шт.

12

R100911

Seal

1шт.

13

RE38535

Clamp

4шт.

14

R108660

Hose

(INLET)

1шт.

15

H33801

Hose Fitting

2шт.

16

R108661

Hose

Outlet

1шт.

17

19H3132

Cap Screw

5/16" X 2-1/4"

12шт.

18

24H1136

Washer

11/32" X 11/16" X 0.065"

12шт.

19

R104592

Pipe Plug

2шт.
