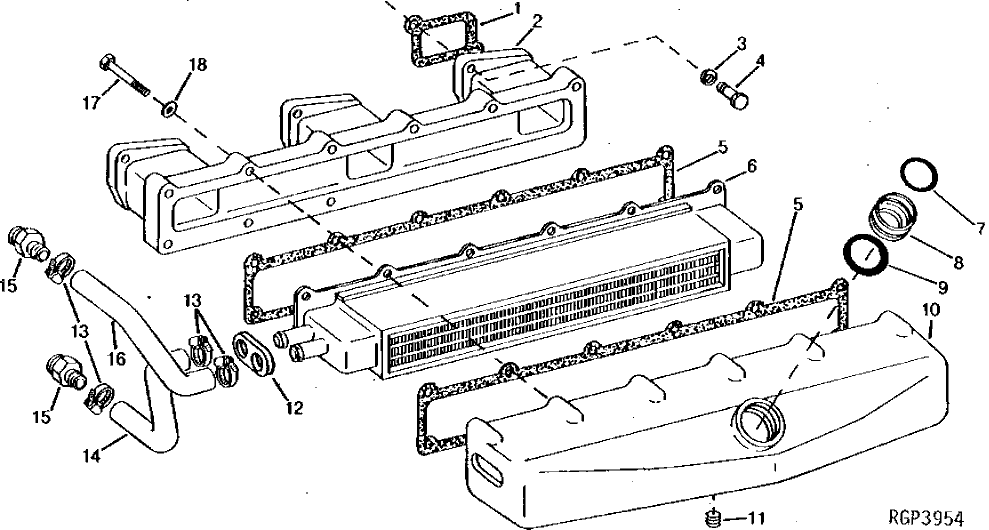

Запчасти John Deere 92ELC 58 - Aftercooler And Intake Manifold ( - 574870) 0414 Intake Manifold 6076AT030 6076AT030

1

R120646

Gasket

3шт.

2

R107633

Intake Manifold

1шт.

3

24H1682

Washer

13/32" X 7/8" X 0.120"

6шт.

4

19H1651

Cap Screw

3/8" X 1-1/2"

6шт.

5

R88993

Gasket

2шт.

6

RE31029

Intercooler

1шт.

7

R57517

O-Ring

1шт.

8

R107635

Bushing

1шт.

9

R86743

O-Ring

1шт.

10

R107634

Cover

1шт.

11

RE57836

Pipe Plug

12.700 mm (1/2") (TO INTAKE MANIFOLD) (SUB FOR 15H624)

1шт.

12

R100911

Seal

1шт.

13

RE38535

Clamp

4шт.

14

R108660

Hose

Inlet

1шт.

15

H33801

Hose Fitting

2шт.

16

R108661

Hose

Outlet

1шт.

17

19H3132

Cap Screw

5/16" X 2-1/4"

12шт.

18

24H1136

Washer

11/32" X 11/16" X 0.065"

12шт.
