Запчасти John Deere 92ELC 49 - Fuel Injection Nozzles and Lines ( - 558133) 0413 Fuel Injection System 6076AT030 6076AT030

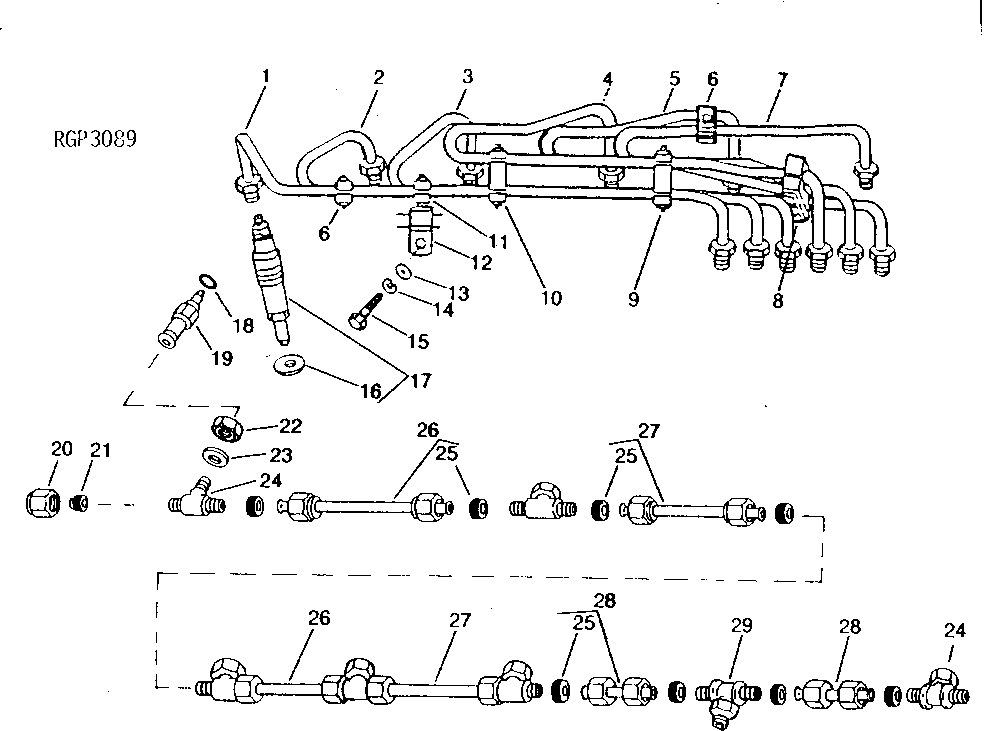

Схема запчастей John Deere 92ELC - 49 - Fuel Injection Nozzles and Lines ( - 558133) 0413 Fuel Injection System 6076AT030 6076AT030

Артикул

Название

Примечание

Количество

1

RE47728

Fuel Line

NO. 6, (SUB FOR RE29512, THIS APPLICATION)

1шт.

2

RE47727

Fuel Line

NO. 5, (SUB FOR RE29511, THIS APPLICATION)

1шт.

3

RE47726

Fuel Line

NO. 4, (SUB FOR RE29510, THIS APPLICATION)

1шт.

4

RE47725

Fuel Line

NO. 3, (SUB FOR RE29509, THIS APPLICATION)

1шт.

5

R59305

Strap

2шт.

R58186

Clamp

4шт.

R61144

Strap

2шт.

21H1463

Cap Screw

0.190" X 7/8"

2шт.

6

RE47724

Fuel Line

NO. 2, (SUB FOR RE29508, THIS APPLICATION)

1шт.

7

RE47723

Fuel Line

NO. 1, (SUB FOR RE29507, THIS APPLICATION)

1шт.

8

R59298

Strap

1шт.

R59297

Half Clamp

2шт.

R61145

Strap

1шт.

21H1463

Cap Screw

0.190" X 7/8"

2шт.

9

R59298

Strap

1шт.

R71212

Clamp

1шт.

R59297

Half Clamp

2шт.

R61145

Strap

1шт.

R71398

Screw

4.826 X 38.100 mm (0.190" X 1-1/2")

2шт.

10

R59305

Strap

1шт.

R58186

Clamp

1шт.

R74030

Clamp

1шт.

R74804

Clamp

1шт.

R61144

Strap

1шт.

R71398

Screw

4.826 X 38.100 mm (0.190" X 1-1/2")

1шт.

11

R59298

Strap

1шт.

R59297

Half Clamp

2шт.

21H1463

Cap Screw

0.190" X 7/8"

2шт.

12

RE47120

Absorber

(SUB FOR RE12766)

1шт.

13

24H1305

Washer

13/32" X 13/16" X 0.065"

1шт.

14

12M7066

Lock Washer

10 mm

1шт.

15

19M7166

Cap Screw

M10 X 20

1шт.

16

R84472

Washer

7.360 X 18.160 X 2 mm (0 .290" X 0.715" X 0.079")

6шт.

17

RE46364

Injection Nozzle

(ROBERT BOSCH) (USE W/ RE46898)

6шт.

SE500178

Injection Nozzle Reman

(PKG OF 6) (ROBERT BOSCH) (NLA)

1шт.

SE501119

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE46364)

ARшт.

RE30159

Injection Nozzle

Denso (USE W/ RE46898) (SUB RE52109 AND R84472)

6шт.

SE500349

Injection Nozzle Reman

(PKG OF 6) (NLA)

1шт.

SE501135

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE30159)

ARшт.

RE52109

Injection Nozzle

Denso

6шт.

SE501136

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE52109)

ARшт.

18

R77551

O-Ring

6шт.

19

R87082

Fitting

(ALSO ORDER R77551)

6шт.

20

R51937

Tube Nut

1шт.

21

AR85519

Plug

1шт.

22

R79604

Tube Nut

6шт.

23

R79605

Washer

6шт.

24

R79606

Tee Fitting

6шт.

25

R51936

Sealing Washer

12шт.

26

RE15807

Fuel Line

2шт.

27

RE15808

Fuel Line

2шт.

28

RE36421

Fuel Line

2шт.

29

R97061

Tee Fitting

1шт.

Выбрано товаров: 53
