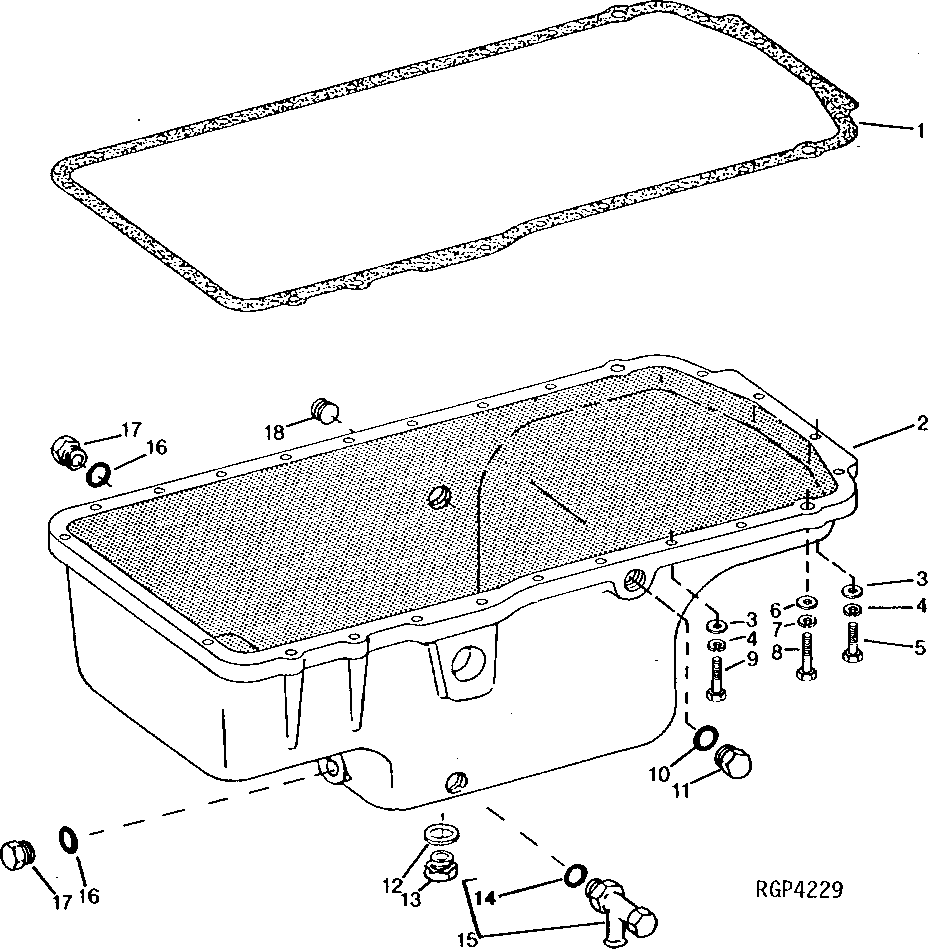

Запчасти John Deere 92ELC 40 - Oil Pan 0407 Engine Oiling System 6076AT030 6076AT030

1

RE504822

Gasket

(SUB FOR R49377)

1шт.

2

RE52147

Oil Pan

(USE W/ RE60819 OR RE42749 INTA KE AND RE33951 DIPSTICK) (SUB R13 2477, RE62144 AND RE61500, APPL.)

1шт.

R132477

Pan

(USE W/ RE62144 INTAKE AND RE61500 DIPSTICK)

1шт.

3

24H1305

Washer

13/32" X 13/16" X 0.065"

22шт.

4

12H304

Lock Washer

3/8"

22шт.

5

19H3485

Cap Screw

3/8" X 2"

4шт.

6

24H1756

Washer

1/2" X 1" X 0.060"

2шт.

7

12H301

Lock Washer

1/2"

2шт.

8

19H2473

Cap Screw

1/2" X 1-3/4"

2шт.

9

19H3267

Cap Screw

3/8" X 1-5/8"

18шт.

10

R47151

O-Ring

(SUB FOR R26906)

1шт.

11

R27474

Drain Plug

1шт.

12

A4827R

Washer

25.400 X 31.700 X 1.500 mm (1" X 1.248" X 0.059")

1шт.

13

R26727

Drain Plug

1шт.

14

R47151

O-Ring

1шт.

15

AT152180

Drain Valve

1шт.

16

F3171R

O-Ring

1шт.

17

R27175

Drain Plug

1шт.

18

15H690

Pipe Plug

3/4"

1шт.
