25 - Camshaft And Gear (6076) (Early Engine)

Запчасти John Deere 92ELC 25 - Camshaft And Gear (6076) (Early Engine) 0402 Camshaft And Valve Actuating Means 6076AT030 6076AT030

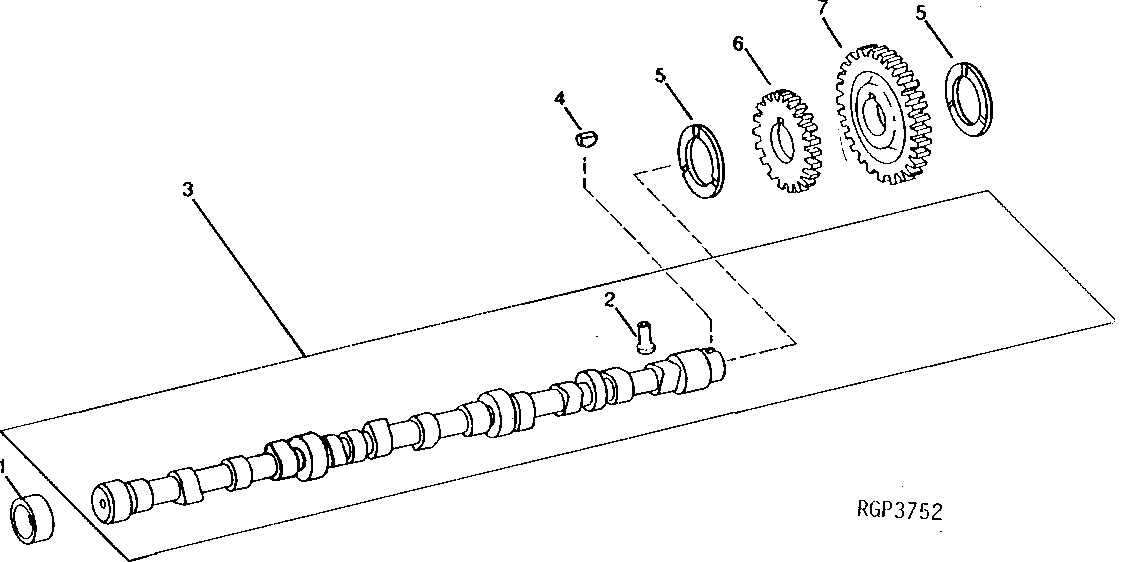

Схема запчастей John Deere 92ELC - 25 - Camshaft And Gear (6076) (Early Engine) 0402 Camshaft And Valve Actuating Means 6076AT030 6076AT030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R527877

Bushing

SUB FOR R87561

4шт.

2

R110126

Follower

12шт.

3

RE42383

Camshaft

MARKED R109717; SUB RE57054

1шт.

RE57054

Camshaft

MARKED R120872

1шт.

SE501638

Camshaft Reman

MARKED R120872; REMAN FOR RE57054

1шт.

4

26H91

Shaft Key

3/16" X 1-1/4"

1шт.

5

R504811

Washer

2шт.

6

R104589

Gear

1шт.

7

R528098

Gear

SUB FOR R112053 OR R518212

1шт.
