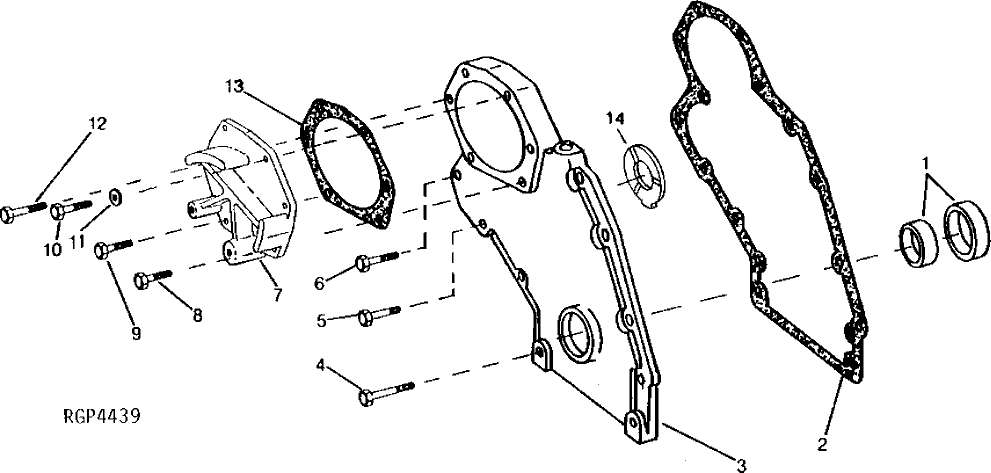

Запчасти John Deere 92ELC 24 - Timing Gear Cover and Front Oil Seal 0402 Camshaft And Valve Actuating Means 6076AT030 6076AT030

1

AR49025

Seal

1шт.

2

R104623

Gasket

1шт.

3

R116465

Cover

1шт.

4

R104859

Screw

7шт.

5

R104861

Screw

To Water Pump Bottom

1шт.

12H303

Lock Washer

5/16"

1шт.

6

R112269

Screw

1шт.

7

R108373

Cover

1шт.

8

19H1905

Cap Screw

5/16" X 1"

1шт.

9

19H2342

Cap Screw

5/16" X 4-1/2"

1шт.

12H303

Lock Washer

5/16"

1шт.

10

19H1904

Cap Screw

5/16" X 3"

3шт.

11

24H1292

Washer

11/32" X 3/4" X 0.120"

1шт.

12

19H2657

Cap Screw

5/16" X 3-1/8" (SLOTTED HOLE)

1шт.

R56397

Washer

(SLOTTED HOLE CAP SCREW ONLY R108373 TO T.G.C.)

1шт.

13

R99464

Gasket

1шт.

14

R104656

Thrust Washer

1шт.
