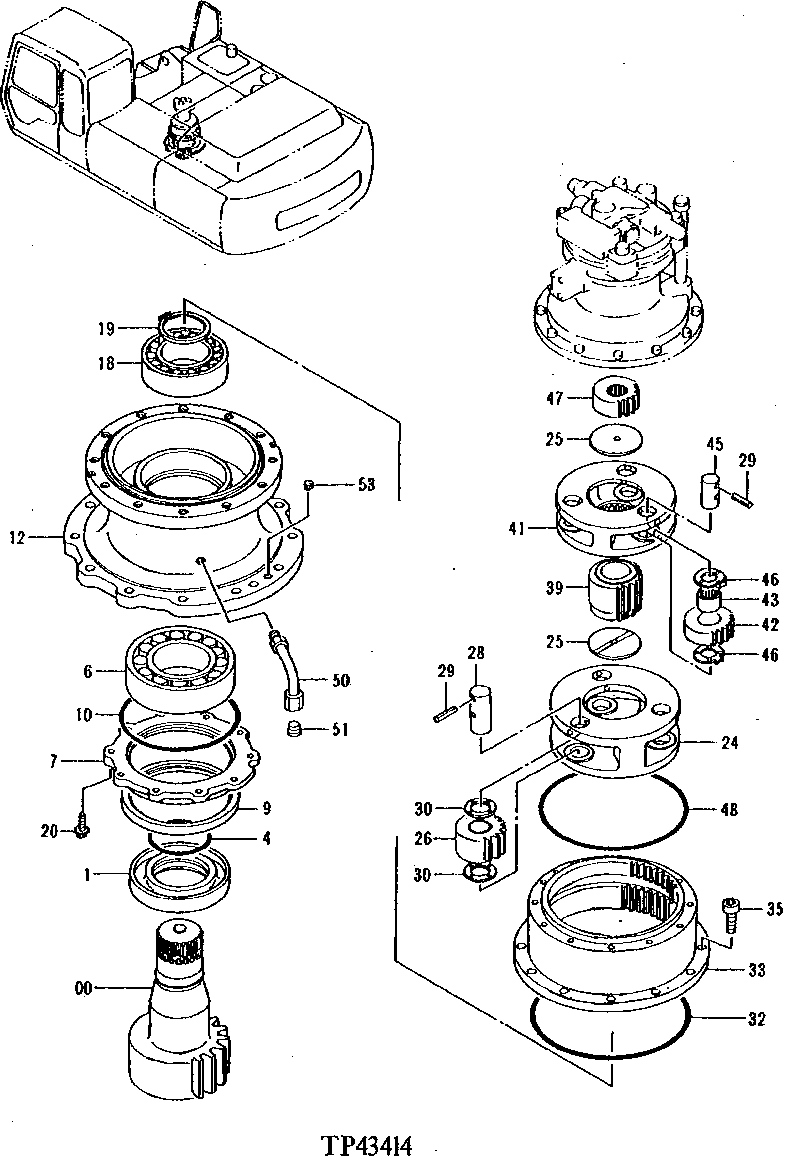

Запчасти John Deere 92ELC 318 - Swing Device 4360 Hydraulics

0

2029055

Shaft

(SUB FOR AT200958)

1шт.

1

4256346

Sleeve

(SUB FOR AT200996)

1шт.

4

A811140

O-Ring

139.400 X 3.100 mm (5.488" X 0.122") (SUB FOR TH111062)

1шт.

6

AT160517

Spherical Roller Bearing

1шт.

7

3060561

Cover

(SUB FOR AT158507)

1шт.

9

4424511

Seal

1шт.

10

AT154714

O-Ring

275 X 3 mm (10.827" X 0.118")

1шт.

12

1014810

Housing

(SUB FOR AT200953)

1шт.

18

TH104674

Spherical Roller Bearing

1шт.

19

991354

Snap Ring

(SUB FOR TH111641)

1шт.

20

19M7493

Cap Screw

M12 X 40

10шт.

12H301

Lock Washer

1/2"

10шт.

24

1014808

Planet Pinion Carrier

(SUB FOR AT200951)

1шт.

25

4194454

Washer

(SUB FOR TH111267)

2шт.

26

9734405

Gear

(SUB FOR AT201190)

3шт.

28

4244694

Pin Fastener

(SUB FOR TH109481)

3шт.

29

34M5564

Spring Pin

6 X 70 mm

6шт.

30

4266934

Plate

(SUB FOR AT154772)

6шт.

32

4254449

O-Ring

(SUB FOR AT200993)

1шт.

33

1014811

Ring Gear

(SUB FOR AT200954)

1шт.

35

19M8609

Cap Screw

M20 X 55

12шт.

39

3050683

Sun Gear

(SUB FOR AT200969)

1шт.

41

1014809

Planet Pinion Carrier

(SUB FOR AT200952)

1шт.

42

3050684

Gear

(SUB FOR AT200970)

3шт.

43

4183818

Needle Bearing

(SUB FOR T107728)

3шт.

45

4203533

Pin

(SUB FOR AT200997) (SUB FOR AT131753)

3шт.

46

4273336

Plate

(SUB FOR AT201013)

6шт.

47

3050685

Sun Gear

(SUB FOR AT200971)

1шт.

48

4271596

O-Ring

325 X 3.530 mm (12.795" X 0.139") (SUB FOR AT131752)

1шт.

50

8050212

Pipe

(SUB FOR AT154836)

1шт.

51

94-2013

Fitting Plug

(SUB FOR TH100648)

1шт.

53

19M7010

Cap Screw

M16 X 250 (SUB FOR TH109402)

2шт.
