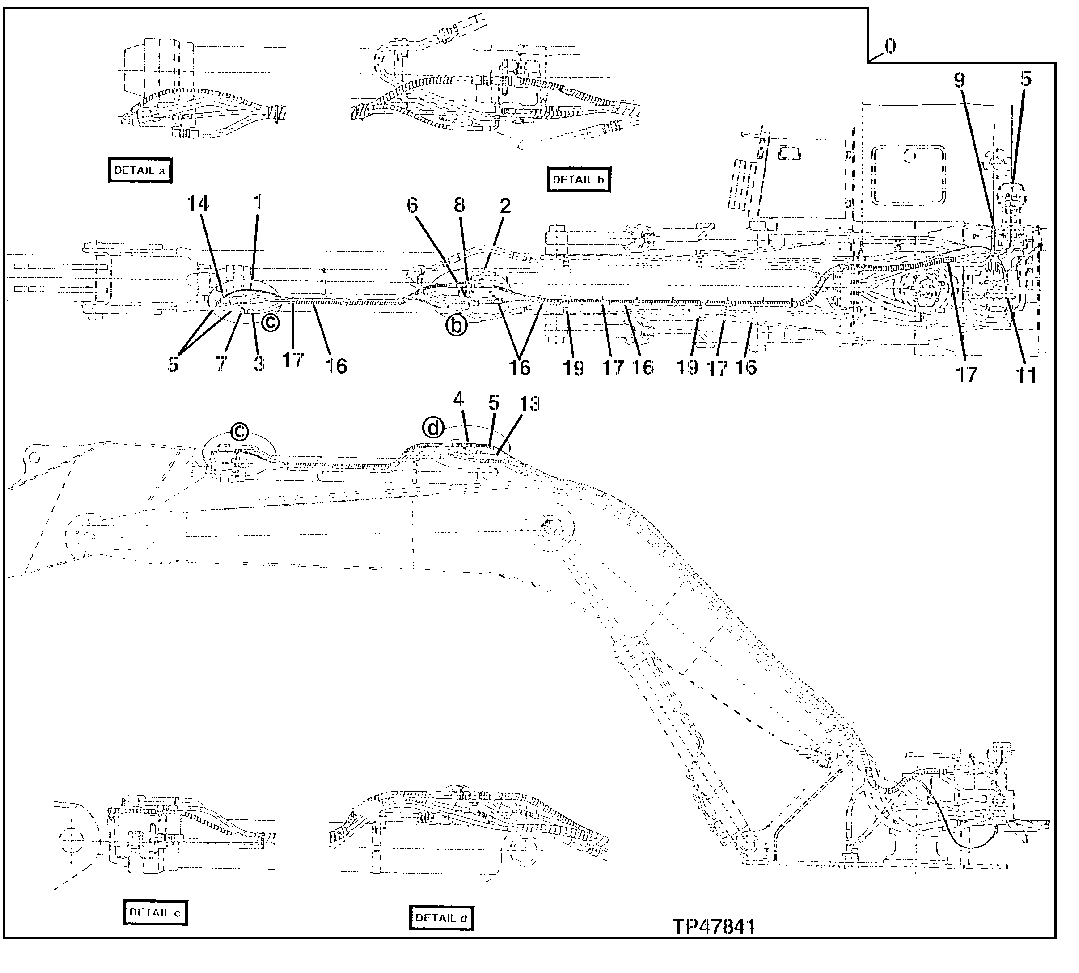

Запчасти John Deere 92ELC 316 - LOAD LOWERING VALVE ARM CYLINDER KIT 3360 Hydraulic System

0

AT171165

Kit

LOAD LOWERING ARM CYLINDER, CONTAI NS ALL ITEMS LISTED ON THIS PAGE, A DDITIONAL COMPONENTS ON PREVIOUS PA GE, KIT DOES NOT CONTAIN CYLINDERS

1шт.

1

AT201257

Hydraulic Hose

9/16" X 2050 mm (80-3/4") X 9/16"

1шт.

AE24616

Elbow Fitting

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

3шт.

2

AT174586

Hydraulic Hose

1-1/16" X 5800 mm (228-1/4") X 1-1/16"

1шт.

Hose Guard

MF XHG-075, BULK MATERIA L, CTL, SUB FOR AT138222

1шт.

3

AT174587

Hydraulic Hose

1-1/16" X 1900 mm (74-3/4") X 1-1/16"

1шт.

Hose Guard

MF XHG-075, BULK MATERIA L, CTL, SUB FOR AT138222

10шт.

4

AT174584

Hydraulic Hose

9/16" X 6100 mm (240-1/4") X 9/16" AL SO ORDER (10) TH106022 HOSE PROTECTORS

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

1шт.

5

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

4шт.

6

4205363

Tee Fitting

SUB FOR AT126362

1шт.

7

4190246

Elbow Fitting

SUB FOR TH101008, THIS APP LICATION, SUB FOR TH106154

1шт.

8

4346016

Tee Fitting

SUB FOR AT174588

1шт.

9

4346505

Adapter Fitting

SUB FOR AT174589

1шт.

11

8039468

Line

SUB FOR AT127914

2шт.

13

AA35110

Hydraulic Hose

9/16" X 5994 mm (236") X 9/16"

1шт.

AU43156

Elbow Fitting

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

10шт.

14

AT174592

Hydraulic Hose

9/16" X 8000 mm (315") X 9/16" ALSO ORDER (13) TH106022 HOSE PROTECTORS

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

13шт.

16

Hose Guard

MF XHG-075, BULK MATERIA L, CTL, SUB FOR AT138222

18шт.

17

H77698

Tie Band

12шт.

19

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

2шт.
