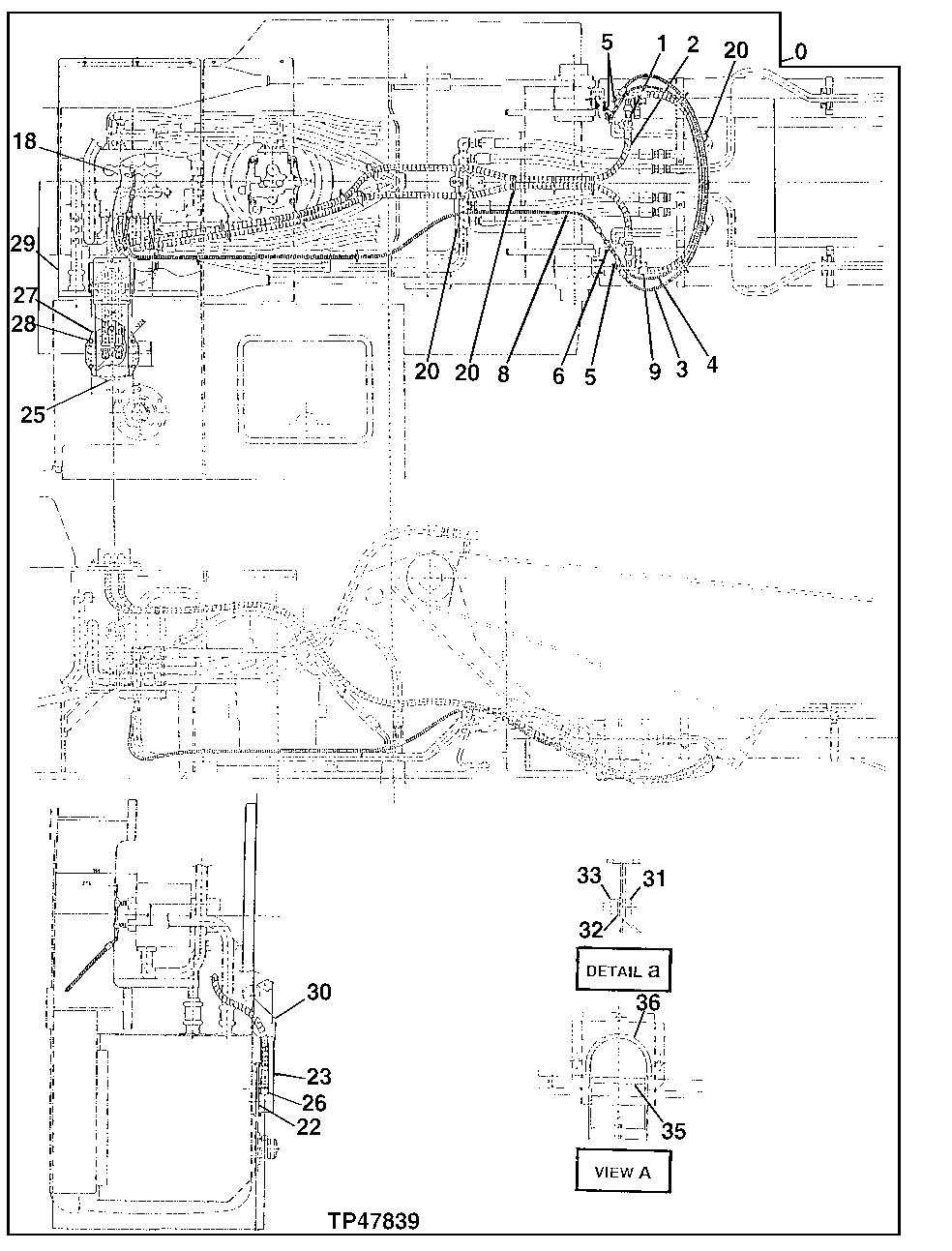

Запчасти John Deere 92ELC 314 - LOAD LOWERING VALVE BOOM CYLINDER KIT 3360 Hydraulic System

0

Kit

AT171164 NLA, LOAD LOWERING BOOM CYLI NDER, CONTAINS ALL ITEMS LISTED ON THIS PAGE, ADDITIONAL COMPONENTS ON PREVIOU S PAGES, KIT DOES NOT CONTAIN CYLINDERS

1шт.

1

4221272

Tee Fitting

SUB FOR AT205862

2шт.

2

AT77903

Hydraulic Hose

1-1/16" X 3556 mm (140") X 1-1/16"

2шт.

Hose Guard

MF XHG-075, BULK MATERIA L, CTL, SUB FOR AT138222

2шт.

3

AT174567

Hydraulic Hose

11.1252" X 1500 mm (59") X 11.1252" A LSO ORDER (3) TH106022 HOSE PROTECTORS

1шт.

4

AT30743

Hydraulic Hose

11.1252" X 1625 mm (64") X 11.1252"

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

3шт.

5

4154670

Elbow Fitting

SUB FOR TH100951

3шт.

6

4226388

Tee Fitting

SUB FOR AT205878

1шт.

8

AT174569

Hydraulic Hose

9/16" X 2600 mm (102-1/4") X 9/16" AL SO ORDER (4) TH106022 HOSE PROTECTORS

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

4шт.

9

AT174563

Hydraulic Hose

1-1/16" X 1200 mm (47-1/4") X 1-1/16" ALSO ORDER (2) XHG-075 HOSE GUARDS CTL

1шт.

XHG-075

Hose Guard

2шт.

18

8039468

Line

SUB FOR AT127914

1шт.

20

H77698

Tie Band

20шт.

22

3041809

Cover

SUB FOR AT205825

1шт.

23

3068369

Cover

SUB FOR AT174570

1шт.

25

19M7402

Cap Screw

M10 X 25

2шт.

26

4190246

Elbow Fitting

SUB FOR TH106154

2шт.

27

15M7036

Drain Plug

SUB FOR 0309805, SUB FOR 4217653, ALONG W/ CH11570

1шт.

28

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

29

7028272

Cover

SUB FOR AT174572

1шт.

30

3068370

Cover

SUB FOR AT174573

1шт.

31

19M7881

Screw

M8 X 20

3шт.

32

12M7056

Lock Washer

8 mm SUB FOR 12M7065

3шт.

33

14M7273

Nut

M8

3шт.

35

4331697

Isolator

SUB FOR AT174574

1шт.

36

4331698

Isolator

SUB FOR AT174575

1шт.
