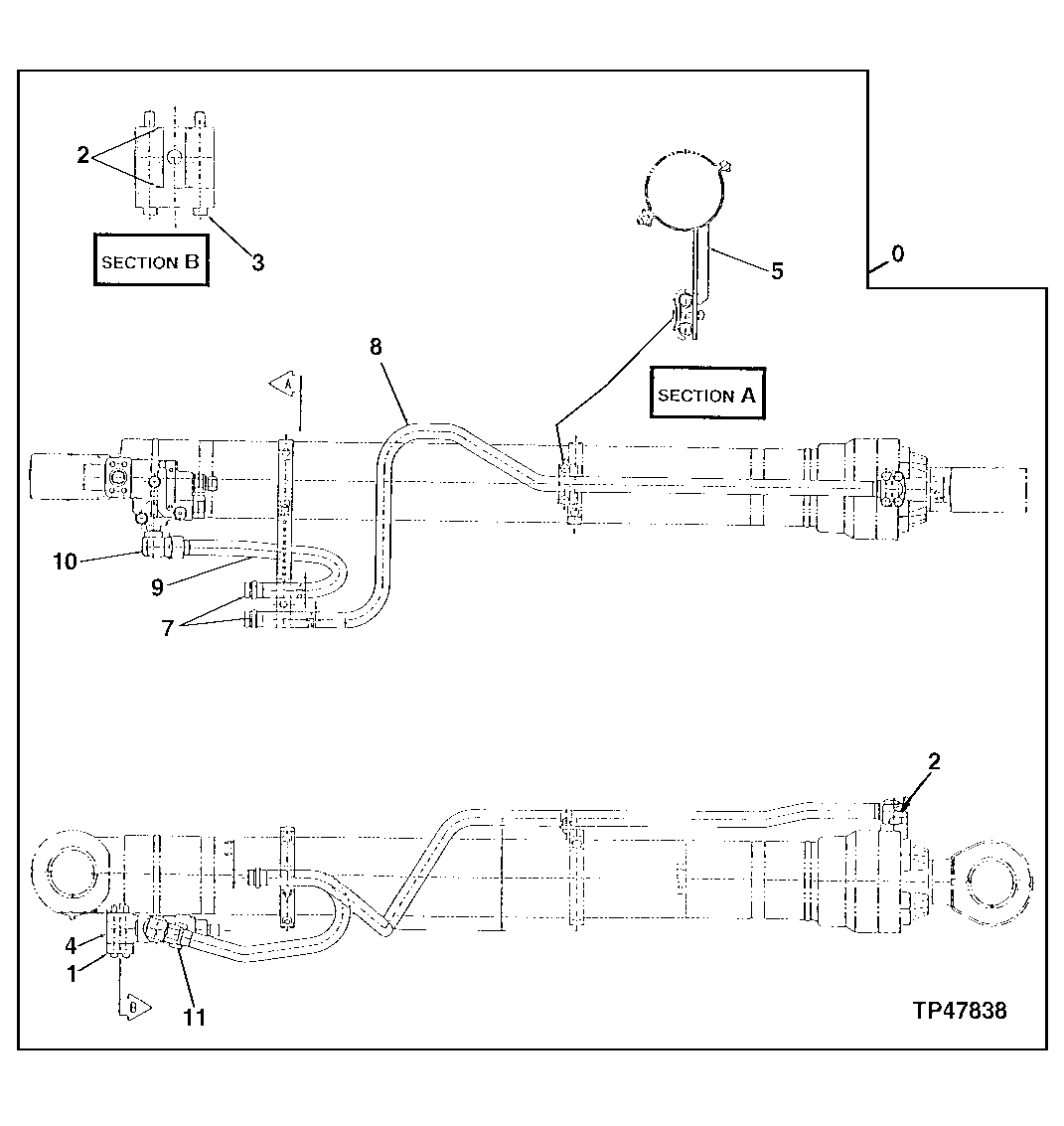

Запчасти John Deere 92ELC 313 - LOAD LOWERING VALVE LEFT BOOM CYLINDER KIT 3360 Hydraulic System

0

Kit

( AT171164 NLA) (LOAD LOWERING BOOM CYLINDE R) (CONTAINS ALL ITEMS LISTED ON THIS PAGE, ADDITIONAL COMPONENTS ON PREVIOUS AND FOLLOW ING PAGES) (KIT DOES NOT CONTAIN CYLINDERS)

1шт.

1

3039864

Cover

(SUB FOR AT205822)

1шт.

2

AT264324

O-Ring

(SUB FOR TH100044)

3шт.

3

4086072

Screw

(SUB FOR AT205828)

4шт.

4

4326086

Flow Control Hyd. Valve

(SUB FOR AT174550)

1шт.

5

8058536

Clamp

(SUB FOR AT174551)

1шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

8

8058540

Line

(SUB FOR AT174561) Rod

1шт.

9

8058538

Line

(SUB FOR AT174562) Bottom

1шт.

10

4222074

Elbow Fitting

(SUB FOR AT174555) (SUB FOR AT205863)

1шт.

11

T78612

O-Ring

(SUB FOR AT174557)

1шт.
