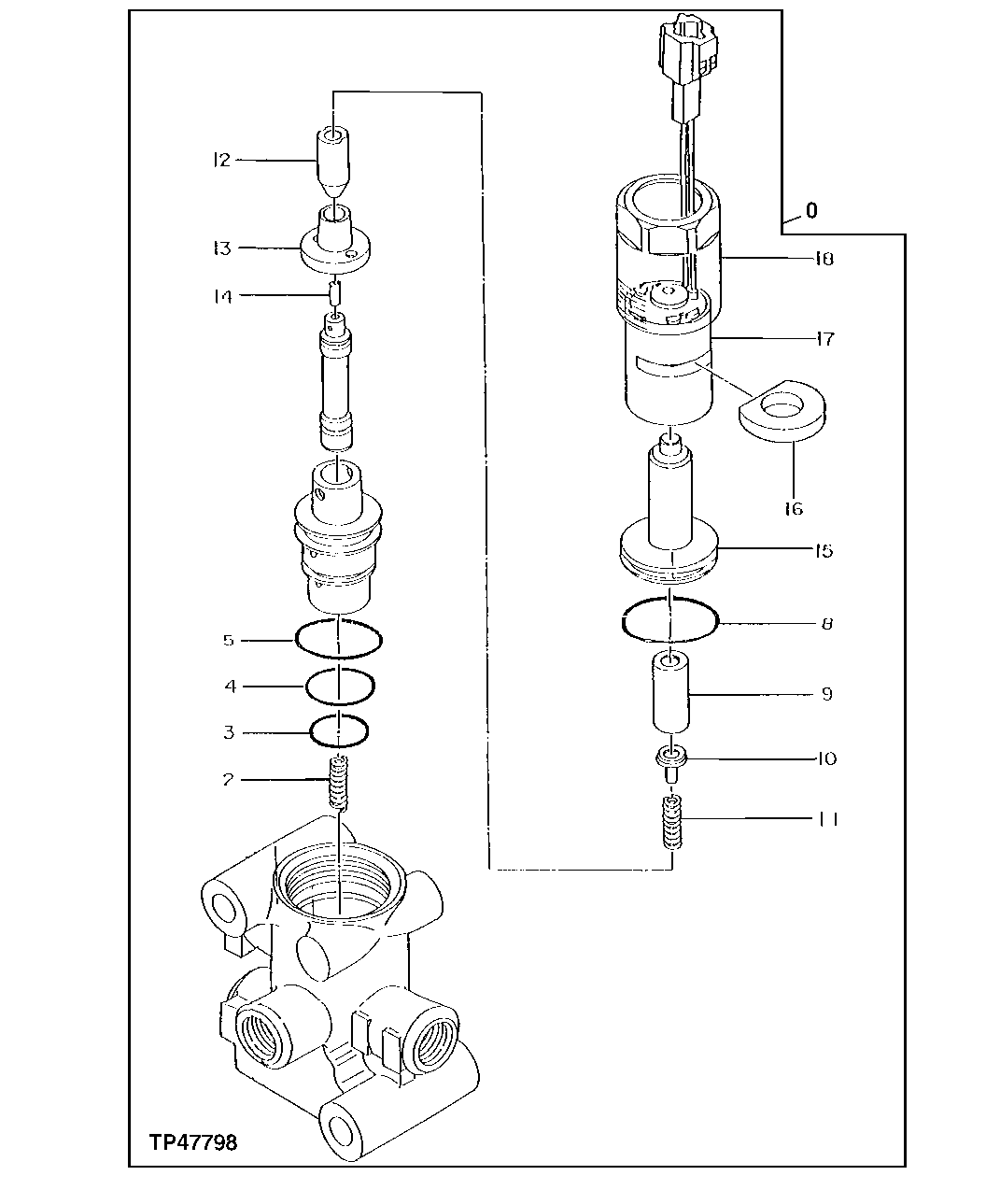

Запчасти John Deere 92ELC 311 - Solenoid Valve (011000 - ) 3360 Hydraulic System

0

4342946

Solenoid Valve

(SUB FOR AT202574)

1шт.

2

0308711

Spring

(SUB FOR TH109259)

1шт.

3

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

4

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)

1шт.

5

AT264333

O-Ring

(SUB FOR TH100096)

1шт.

8

0308713

O-Ring

28.500 X 2 mm (1.122" X 0 .079") (SUB FOR TH109261)

1шт.

9

Pipe

( 0308714 NLA) (SUB FOR TH109262)

1шт.

4488303

Line

1шт.

10

4488306

Valve Seat

(SUB FOR TH109263, 4605187 OR 4488306)

1шт.

11

4488310

Spring

(SUB FOR TH109264 OR 0308716)

1шт.

12

3096332

Plunger

(SUB FOR TH109265 OR 0308717)

1шт.

13

0308718

Stop

(SUB FOR TH109266)

1шт.

14

4488302

Rod

(SUB FOR 0308719) (SUB FOR TH109267)

1шт.

15

TH109268

Housing

1шт.

16

4488304

Spacer

(SUB FOR TH109269 OR 0308721)

1шт.

17

9229339

Spool

(SUB FOR AT174516, 0655401)

1шт.

18

0308724

Screw

(SUB FOR TH109272)

1шт.
