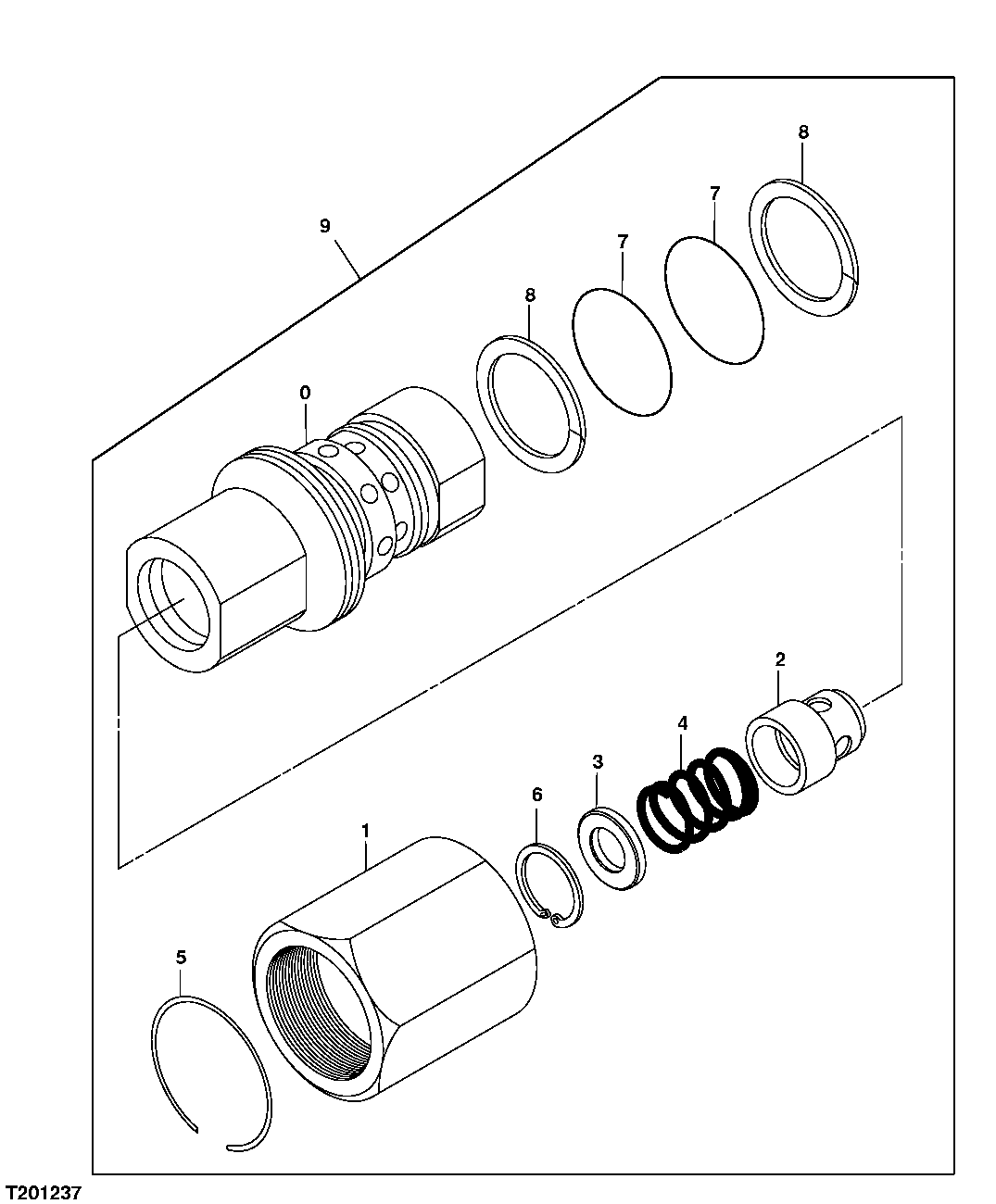

Запчасти John Deere 92ELC 309 - SUPER LONG FRONT SLOW RETURN VALVE (011000 - ) 3360 Hydraulic System

0

Case

( 2024865 NLA)

1шт.

1

Housing

( 3012238 NLA)

1шт.

2

4077177

Piston

(SUB FOR TH106360) This Application

1шт.

3

4077179

Plate

(SUB FOR TH106361) This Application

1шт.

4

4077178

Spring

(SUB FOR TH106362) This Application

1шт.

5

4077180

Ring

(SUB FOR TH106363)

1шт.

6

40M1855

Snap Ring

1шт.

7

985096

O-Ring

(SUB FOR TH106365)

2шт.

8

4079355

Back-Up Ring

(SUB FOR TH106366)

2шт.

9

9075046

Flow Control Hyd. Valve

(SUB FOR AT120774)

1шт.

20

Sideboom

Not Illustrated Contains All Items On This Page - Additional Components Listed On Separ ate Pages (ALSO INCLUDES RIGHT AND LEFT BOOM CYLINDERS AND ARM CYLINDER) ( AT166407 NLA)

1шт.
