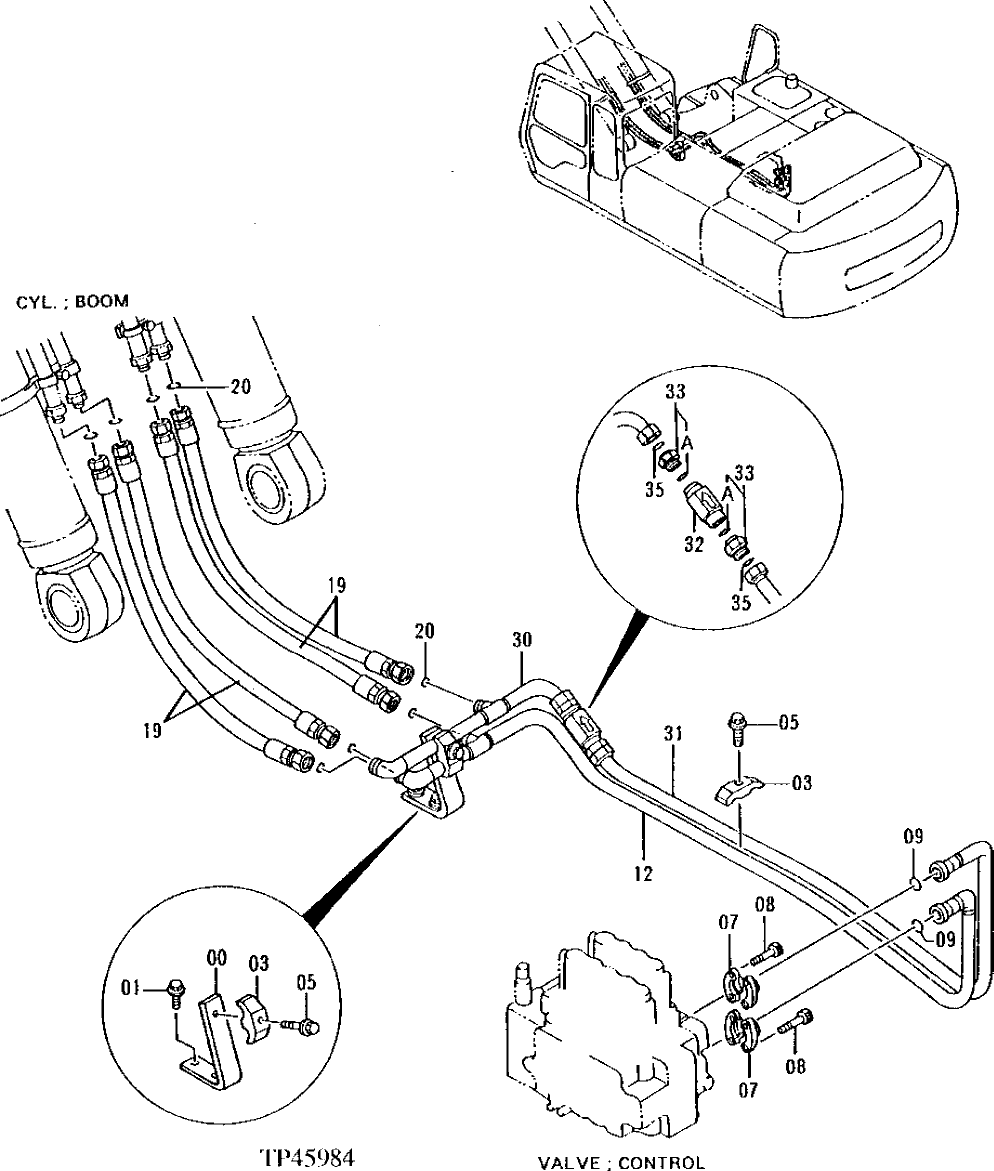

Запчасти John Deere 92ELC 307 - SUPER LONG FRONT (011000 - ) 3360 Hydraulic System

0

9766967

Support

(SUB FOR TH111310, 4206060) (USE W/ J271270 AND J271285)

1шт.

1

19M8011

Cap Screw

M12 X 30

2шт.

12H301

Lock Washer

1/2"

2шт.

3

4189860

Clamp

(SUB FOR TH108314)

2шт.

5

19M8348

Cap Screw

M12 X 65

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

Bolt

( J271270 NLA)

1шт.

19M7753

Cap Screw

M12 X 70

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

1шт.

Bolt

( J271285 NLA)

1шт.

19M8122

Cap Screw

M12 X 85

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

1шт.

7

R29424

Flange Fitting

4шт.

8

19M8337

Screw

M10 X 30

8шт.

9

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

12

8056546

Line

(SUB FOR AT201155)

1шт.

19

4314976

Hydraulic Hose

(SUB FOR AT201232)

4шт.

20

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

8шт.

30

8042956

Oil Line

(SUB FOR TH111827)

1шт.

31

8059475

Line

(SUB FOR AT168287)

1шт.

32

9075046

Flow Control Hyd. Valve

(SUB FOR AT120774) Slow Return

1шт.

33

4207425

Adapter Fitting

(SUB FOR TH111740)

2шт.

33A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

35

T78612

O-Ring

2шт.

40

Sideboom

Super Long Front Not Illustrated Cont ains All Items On This Page - Addition al Components Listed On Separate Pages (ALSO INCLUDES RIGHT AND LEFT BOOM CY LINDERS AND ARM CYLINDER) ( AT166407 N LA)

1шт.
