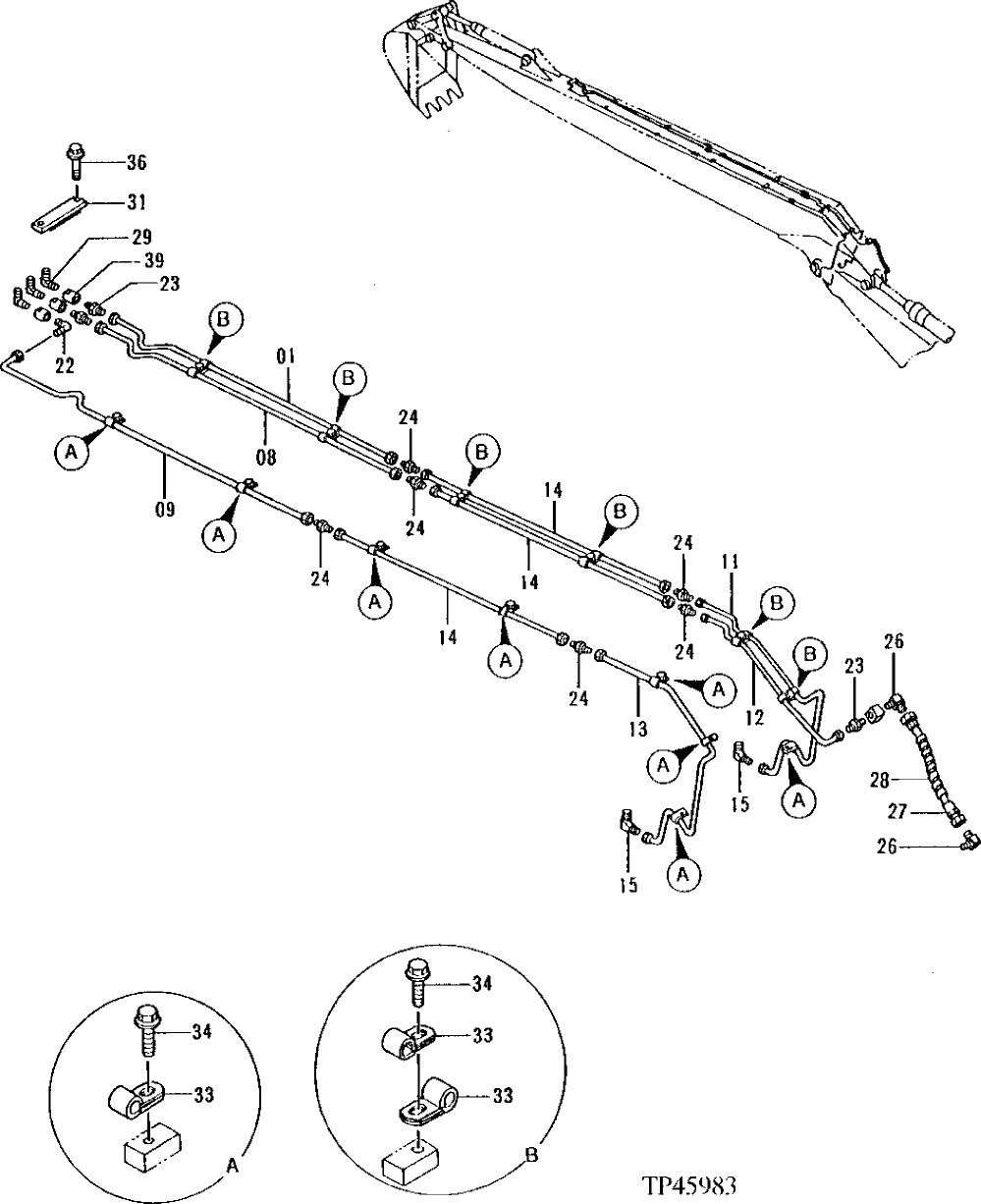

Запчасти John Deere 92ELC 306 - SUPER LONG FRONT LUBRICATION PIPINGS (011000 - ) 3360 Hydraulic System

1

3035725

Tube

(SUB FOR AT120781)

1шт.

8

3035724

Oil Line

(SUB FOR AT120782)

1шт.

9

3035723

Tube

(SUB FOR AT120783)

1шт.

11

3062363

Tube

(SUB FOR AT168283)

1шт.

12

4326647

Tube

(SUB FOR AT168284)

1шт.

13

3062362

Oil Line

(SUB FOR AT168285)

1шт.

14

4201791

Oil Line

(SUB FOR TH111778)

3шт.

15

4130174

Fitting

(SUB FOR TH103262)

2шт.

22

4130175

Fitting

(SUB FOR TH101392)

1шт.

23

4130169

Fitting

(SUB FOR TH101391)

3шт.

24

Z32962

Fitting

6шт.

26

4154656

Elbow Fitting

(SUB FOR TH101588)

2шт.

27

AT120788

Hydraulic Hose

1шт.

28

Cover

(NLA)

1шт.

29

T116334

Lubrication Fitting

3шт.

31

4054024

Strap

(SUB FOR TH100363)

1шт.

33

TH101388

Clip

20шт.

34

19M7923

Cap Screw

M6 X 12

14шт.

12M7006

Lock Washer

6 mm

14шт.

36

19M7358

Cap Screw

M10 X 40

2шт.

39

4060162

Adapter Fitting

(SUB FOR T115095)

3шт.

50

Sideboom

Super Long Front Not Illustrated Cont ains All Items On This Page - Addition al Components Listed On Separate Pages (ALSO INCLUDES RIGHT AND LEFT BOOM CY LINDERS AND ARM CYLINDER) ( AT166407 N LA)

1шт.
