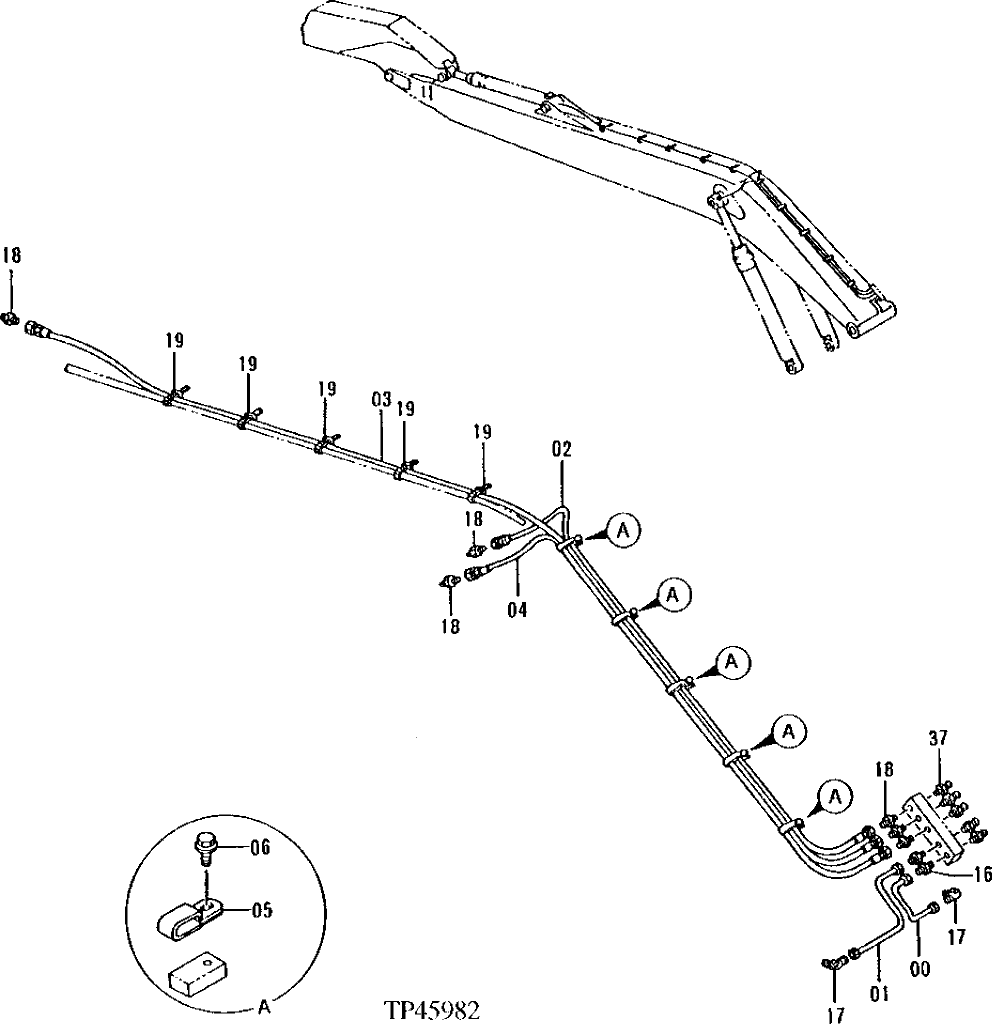

Запчасти John Deere 92ELC 305 - SUPER LONG FRONT LUBRICATION PIPINGS (011000 - ) 3360 Hydraulic System

0

4318473

Tube

(SUB FOR AT201057)

1шт.

1

4318474

Tube

(SUB FOR AT201058)

1шт.

2

4314982

Hydraulic Hose

(SUB FOR AT201237)

1шт.

3

AT168312

Hydraulic Hose

11.1252" X 6900 mm (271-3/4") X 11.1252"

1шт.

4

4314982

Hydraulic Hose

(SUB FOR AT201237)

1шт.

5

T152608

Clamp

(SUB FOR AT154207)

5шт.

6

19M8324

Cap Screw

M10 X 16

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

16

4130169

Fitting

(SUB FOR TH101391)

2шт.

17

4130174

Fitting

(SUB FOR TH103262)

2шт.

18

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4) (SUB FOR TH100963)

6шт.

19

H77698

Tie Band

5шт.

37

JD7769

Lubrication Fitting

(SUB FOR TH100364)

5шт.

40

Sideboom

Super Long Front Not Illustrated Cont ains All Items On This Page - Addition al Components Listed On Separate Pages (ALSO INCLUDES RIGHT AND LEFT BOOM CY LINDERS AND ARM CYLINDER) ( AT166407 N LA)

1шт.
