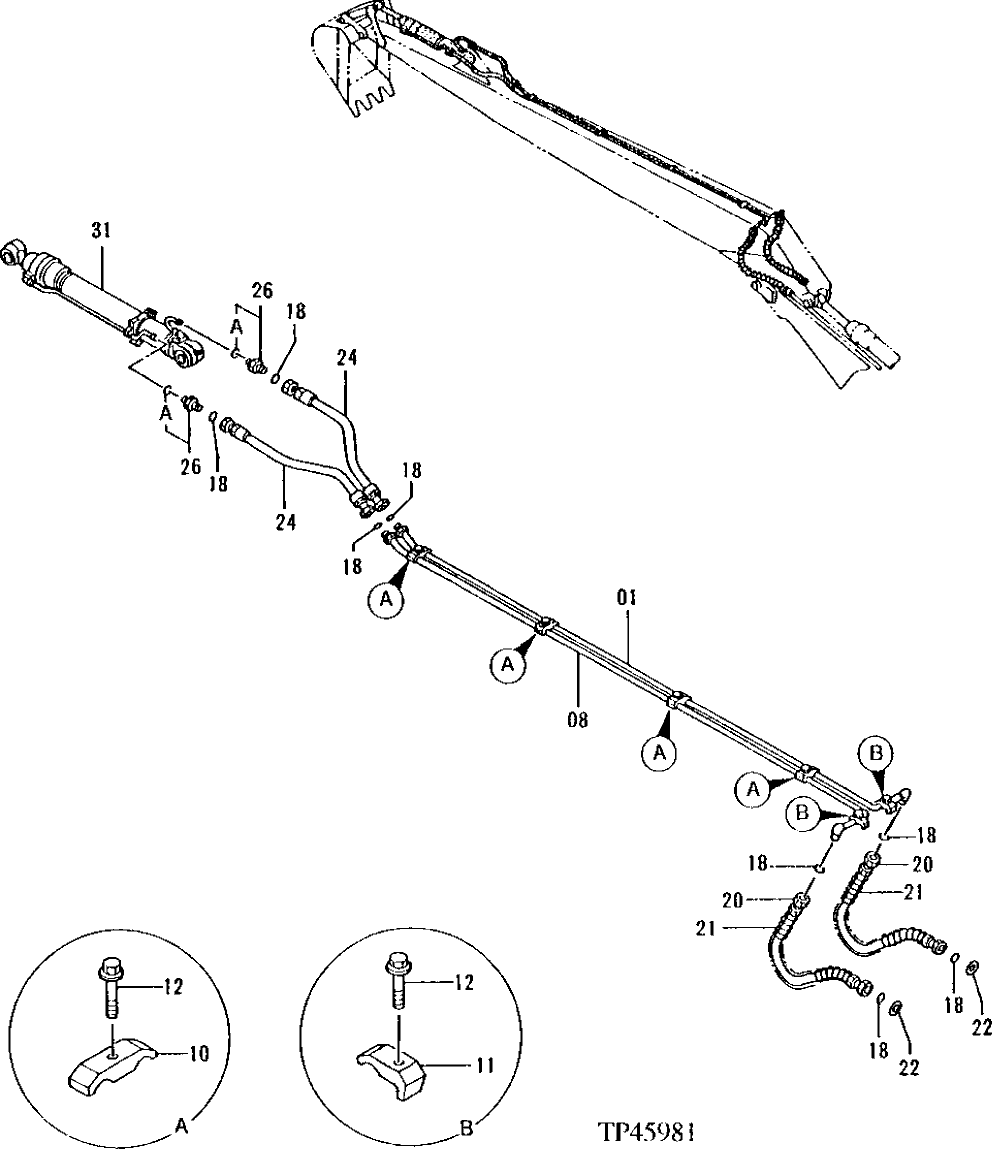

Запчасти John Deere 92ELC 304 - SUPER LONG FRONT PIPINGS (011000 - ) 3360 Hydraulic System

1

8054966

Line

(SUB FOR AT168280)

1шт.

8

8054967

Line

(SUB FOR AT168281)

1шт.

10

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

4шт.

11

4190126

Clamp

(SUB FOR TH109830)

2шт.

12

19M7363

Cap Screw

M12 X 60

6шт.

12H301

Lock Washer

1/2"

6шт.

18

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

20

AT168310

Hydraulic Hose

30.1752" X 1400 mm (55") X 30.1752"

2шт.

21

4055191

Hose Guard

(SUB FOR TH111808)

2шт.

22

4203220

Washer

(SUB FOR TH109827)

2шт.

24

AT168311

Hydraulic Hose

30.1752" X 850 mm (33-1/2") X 30.1752"

2шт.

26

4197530

Adapter Fitting

(SUB FOR TH109595)

2шт.

26A

4506418

O-Ring

(SUB FOR U46489)

1шт.

31

Cylinder

Bucket Cylinder See Se parate Page For Detail

1шт.

40

Sideboom

Super Long Front Not Illustrated Cont ains All Items On This Page - Addition al Components Listed On Separate Pages (ALSO INCLUDES RIGHT AND LEFT BOOM CY LINDERS AND ARM CYLINDER) ( AT166407 N LA)

1шт.
