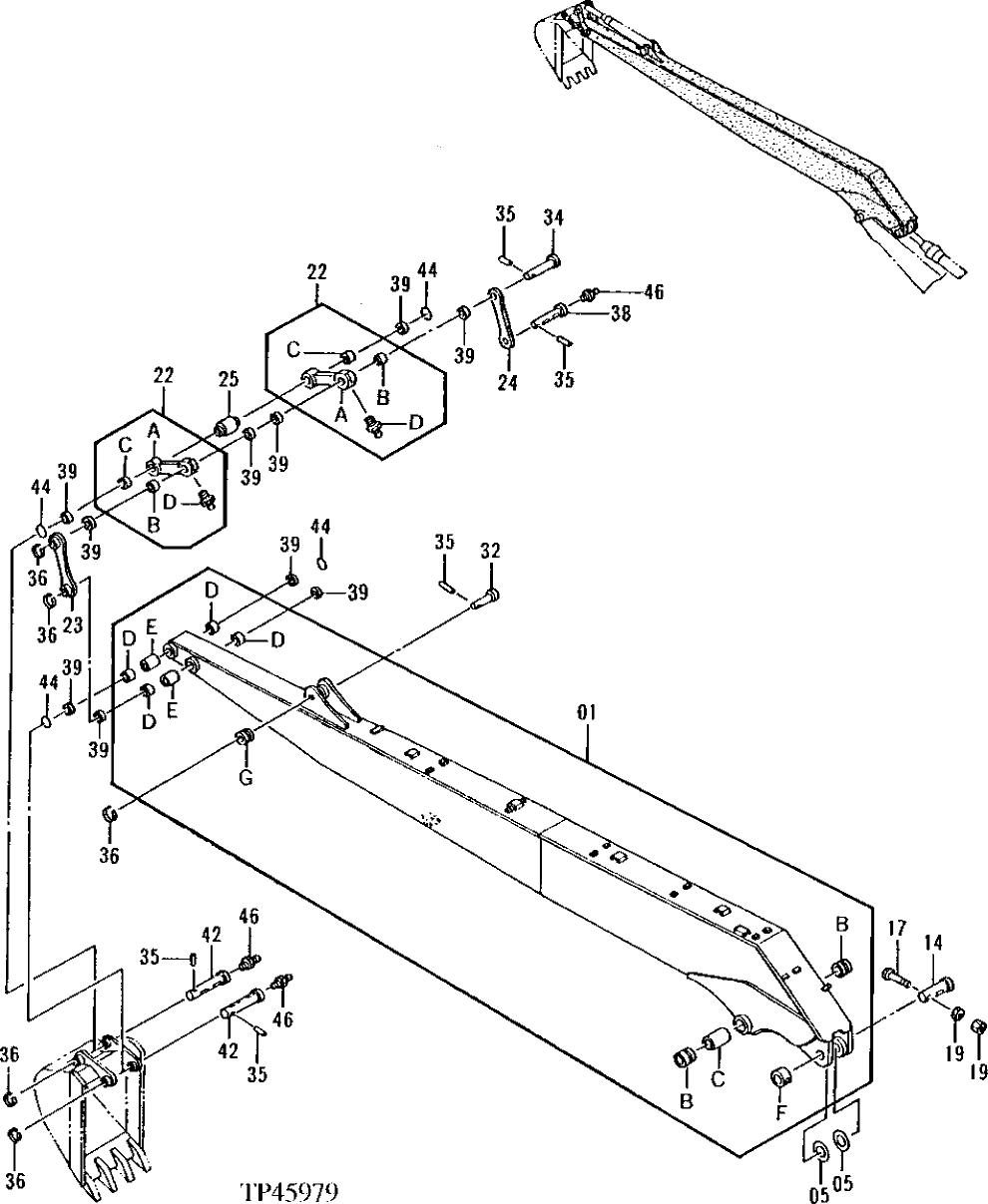

Запчасти John Deere 92ELC 302 - SUPER LONG FRONT ARM (011000 - ) 3360 Hydraulic System

1

7026355

Arm

NLA, SUB FOR AT168243

1шт.

1B

3061371

Bushing

SUB FOR AT168249

2шт.

1C

4293418

Bushing

SUB FOR AT159594

1шт.

1D

AT122209

Bushing

65 X 80 X 50 mm (2.559 " X 3.150" X 1-31/32")

4шт.

1E

4287248

Bushing

SUB FOR AT159595

2шт.

1F

Plate

TH103198 NLA

1шт.

1G

TH108649

Bushing

1шт.

5

4144513

Washer

SUB FOR TH102423

2шт.

14

3062399

Pin Fastener

SUB FOR AT168247

1шт.

17

19M8100

Cap Screw

M20 X 180

1шт.

19

14M7277

Nut

M20

2шт.

22

8052470

Link

SUB FOR AT159596

2шт.

22A

Link

AT159597 NLA

1шт.

22B

4196557

Bushing

SUB FOR TH108934

1шт.

22C

AT122209

Bushing

65 X 80 X 50 mm (2.559 " X 3.150" X 1-31/32")

1шт.

22D

TH100074

Lubrication Fitting

1шт.

23

9741838

Link

SUB FOR AT168245

1шт.

24

4326774

Link

SUB FOR AT168246

1шт.

25

4287249

Spacer

SUB FOR AT159600

1шт.

32

3044367

Pin

SUB FOR AT134035

1шт.

34

AT159601

Pin

1шт.

35

4065689

Pin Fastener

SUB FOR TH100625

5шт.

36

4065688

Retainer

SUB FOR TH100624

5шт.

38

AT318041

Pin Fastener

SUB FOR 3058763, AT159602

1шт.

39

TH100374

Seal

10шт.

42

AT159603

Pin

2шт.

44

4066923

O-Ring

95 X 10 mm (3.740" X 0 .394") SUB FOR AT121233

4шт.

46

TH100074

Lubrication Fitting

3шт.

50

Sideboom

Super Long Front Not Illustrated Cont ains All Items On This Page - Addition al Components Listed On Separate Pages ALSO INCLUDES RIGHT AND LEFT BOOM CYL INDERS AND ARM CYLINDER, AT166407 NLA

1шт.
