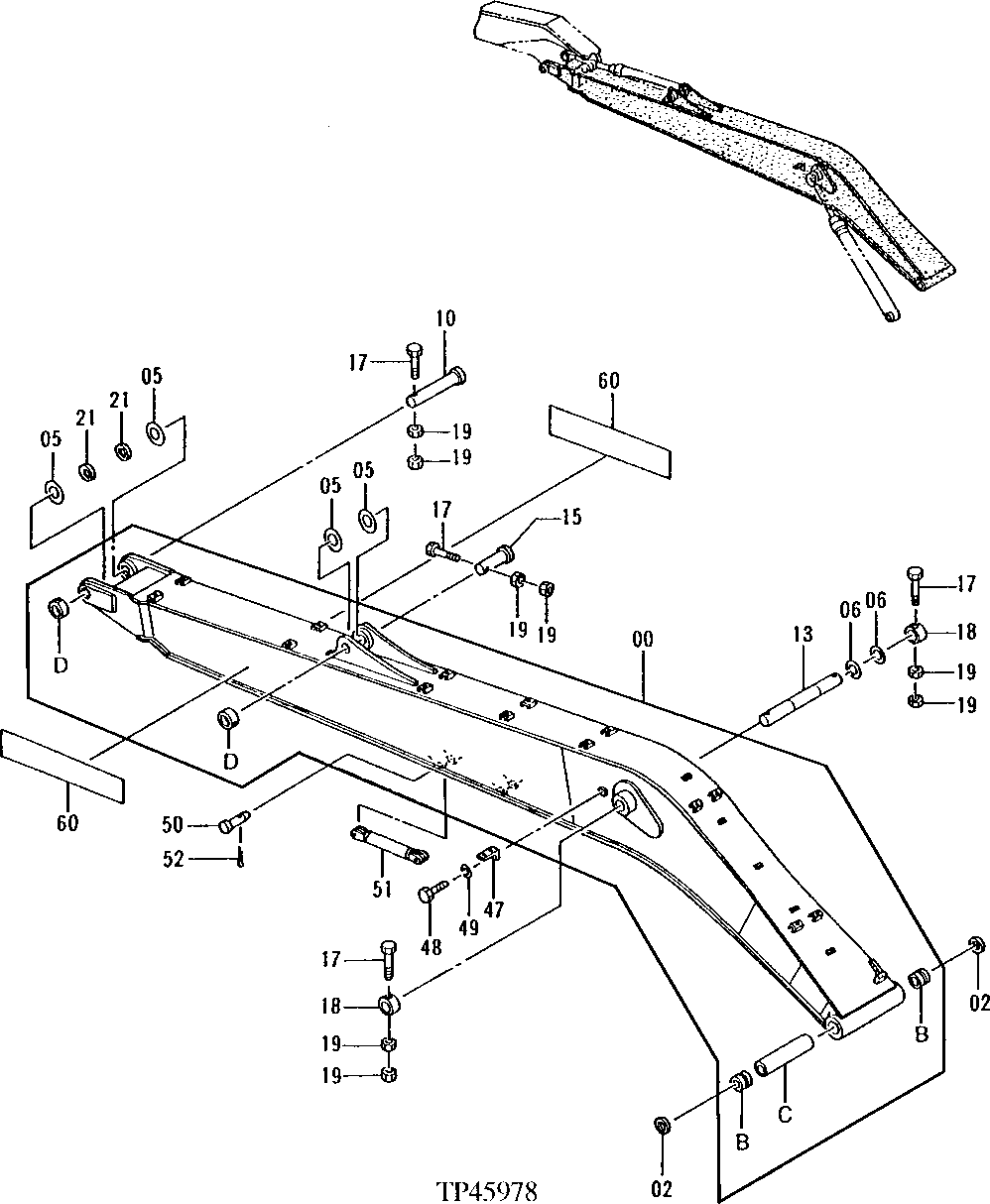

Запчасти John Deere 92ELC 301 - SUPER LONG FRONT BOOM (011000 - ) 3360 Hydraulic System

0

7026354

Excavator Boom

(SUB FOR AT168234)

1шт.

0B

3055478

Bushing

(SUB FOR AT200978)

2шт.

0C

4272437

Spacer

(SUB FOR AT201010)

1шт.

0D

Plate

( TH103198 NLA)

2шт.

2

TH103200

Seal

2шт.

5

4144513

Washer

(SUB FOR TH102423)

ARшт.

6

4189839

Washer

(SUB FOR TH106305)

2шт.

10

AT318055

Pin

(SUB FOR 3060072, AT159564)

1шт.

13

TH103202

Pin Fastener

1шт.

15

TH111180

Pin Fastener

100 X 293 mm (3-15/16" X 11.535")

1шт.

17

19M8100

Cap Screw

M20 X 180

4шт.

18

Plate

( TH103198 NLA)

2шт.

19

14M7277

Nut

M20

8шт.

20

T153672

Label

Long Front Operation Not Illustrated ( SEE LABEL AND DECAL PAGE FOR LOCATION)

1шт.

T153708

Label

Long Front Operation French Not Illustrat ed (SEE LABEL AND DECAL PAGE FOR LOCATION)

1шт.

T153709

Label

Long Front Operation Spanish Not Illustrat ed (SEE LABEL AND DECAL PAGE FOR LOCATION)

1шт.

21

TH102411

Seal

2шт.

22

T153673

Label

(LONG FRONT PERIODIC MAINTNENA CE) (NOT ILLUSTRATED) (SEE LABE L AND DECAL PAGE FOR LOCATION)

1шт.

T153710

Label

(LONG FRONT PERIODIC MAINTENANCE - FRENCH) (NOT ILLUSTRATED) (SEE L ABEL AND DECAL PAGE FOR LOCATION)

1шт.

T153711

Label

(LONG FRONT PERIODIC MAINTENANCE - SPANISH) (NOT ILLUSTRATED) (SEE LABEL AND DECAL PAGE FOR LOCATION)

1шт.

47

4224631

Angle

(SUB FOR TH111685)

1шт.

48

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

49

12H317

Lock Washer

9/16"

1шт.

50

AT159565

Pin

2шт.

51

9738224

Cylinder

(SUB FOR AT159566)

1шт.

52

11M7034

Cotter Pin

5 X 63 mm

2шт.

60

T146685

Label

Model Designation

2шт.

61

JD5628

Label

Leaping Deere Not Illustrated

2шт.

62

T151229

Label

Not Illustrated (LIFT DECAL FO R SUPER LONG FRONT) (SEE DECALS AND LABELS PAGE FOR LOCATION)

1шт.

70

Sideboom

Super Long Front Not Illustrated Cont ains All Items On This Page - Addition al Components Listed On Separate Pages (ALSO INCLUDES RIGHT AND LEFT BOOM CY LINDERS AND ARM CYLINDER) ( AT166407 N LA)

1шт.
