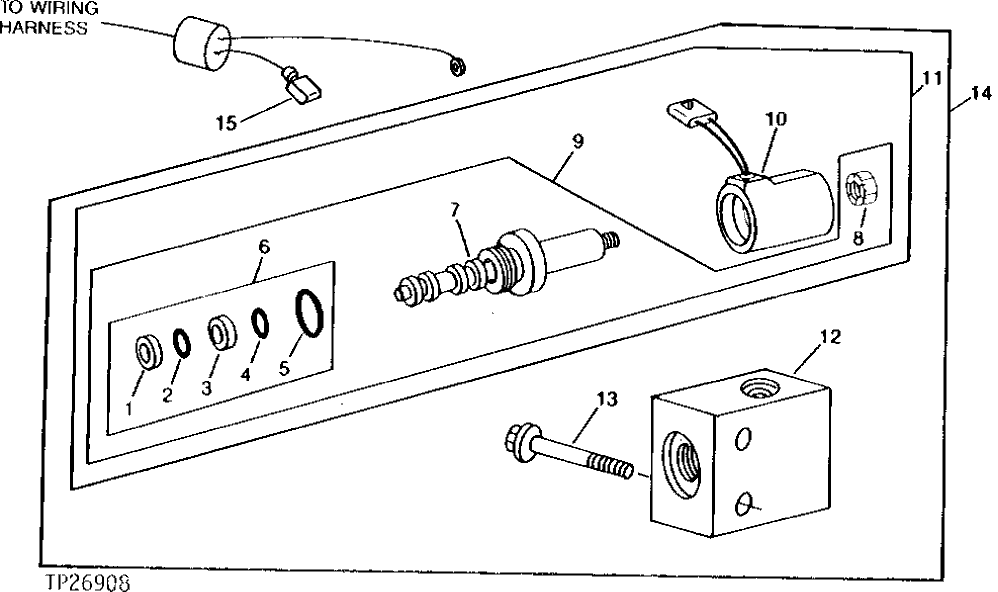

Запчасти John Deere 92ELC 300 - Low Speed Solenoid Valve 3360 Hydraulic System

1

R42926

Back-Up Ring

13.157 X 15.850 X 1.143 mm (0.518" X 0.624" X 0.045")

1шт.

2

T40308

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

1шт.

3

R45187

Back-Up Ring

16.332 X 19.025 X 1.143 mm (0.643" X 0.749" X 0.045")

1шт.

4

R45638

O-Ring

15.596 X 1.778 mm (0.614" X 0.070")

1шт.

5

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

6

R42926

Back-Up Ring

13.157 X 15.850 X 1.143 mm (0.518" X 0.624" X 0.045") (SUB FOR AT66730)

1шт.

7

Valve

1шт.

8

M63707

Lock Nut

6.350 mm (1/4")

1шт.

9

AH130949

Solenoid Valve

1шт.

10

RE24904

Electrical Coil

1шт.

11

Valve

( AT115457 NLA)

1шт.

12

Housing

(SUB AT306723) ( T107202 NLA)

1шт.

13

19M7808

Screw

M10 X 65

2шт.

14

AT306723

Elec.Proportional Valve

(INCLUDES ELECTRICAL COIL) (SUB FOR A T115437) (SUB FOR AT116486, AT140041)

1шт.

15

Wiring Harness

( AT66692) No Longer Required

1шт.
