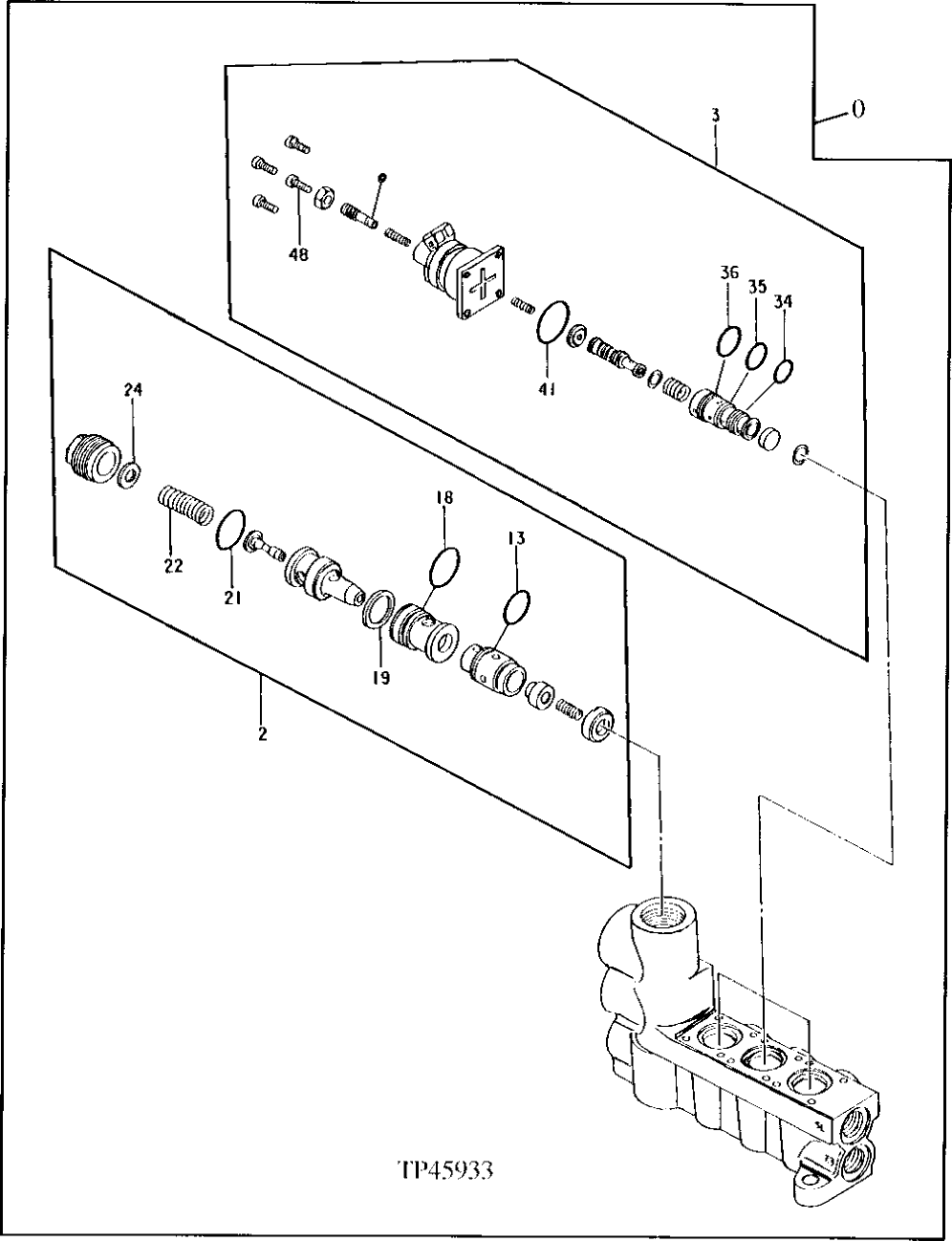

Запчасти John Deere 92ELC 297 - Solenoid Valve (011000 - ) 3360 Hydraulic System

0

4335667

Solenoid Valve

(SUB FOR AT202573)

1шт.

2

0627001

Pressure Relief Valve

(SUB FOR AT204928)

1шт.

3

0627002

Valve Spool

(SUB FOR AT204929)

3шт.

13

985582

O-Ring

(SUB FOR AT205000)

1шт.

18

CH11563

Packing

(SUB FOR AT153900)

1шт.

19

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

21

4487138

O-Ring

(SUB FOR TH109253 OR 0308705)

1шт.

22

0308710

Spring

(SUB FOR TH109258)

1шт.

24

9228867

Shim

(SUB FOR AT204792 OR 4293211)

1шт.

34

4185600

O-Ring

(SUB FOR AT153902)

1шт.

35

R99052

O-Ring

14.800 X 1.900 mm (0.583" X 0.075")

1шт.

36

4163873

O-Ring

(SUB FOR AT153904, 0408411 OR TH106081)

1шт.

41

0408412

O-Ring

27.500 X 2 mm (1.083" X 0 .079") (SUB FOR AT153905)

1шт.

48

0408413

Screw

(SUB FOR AT153906)

4шт.
