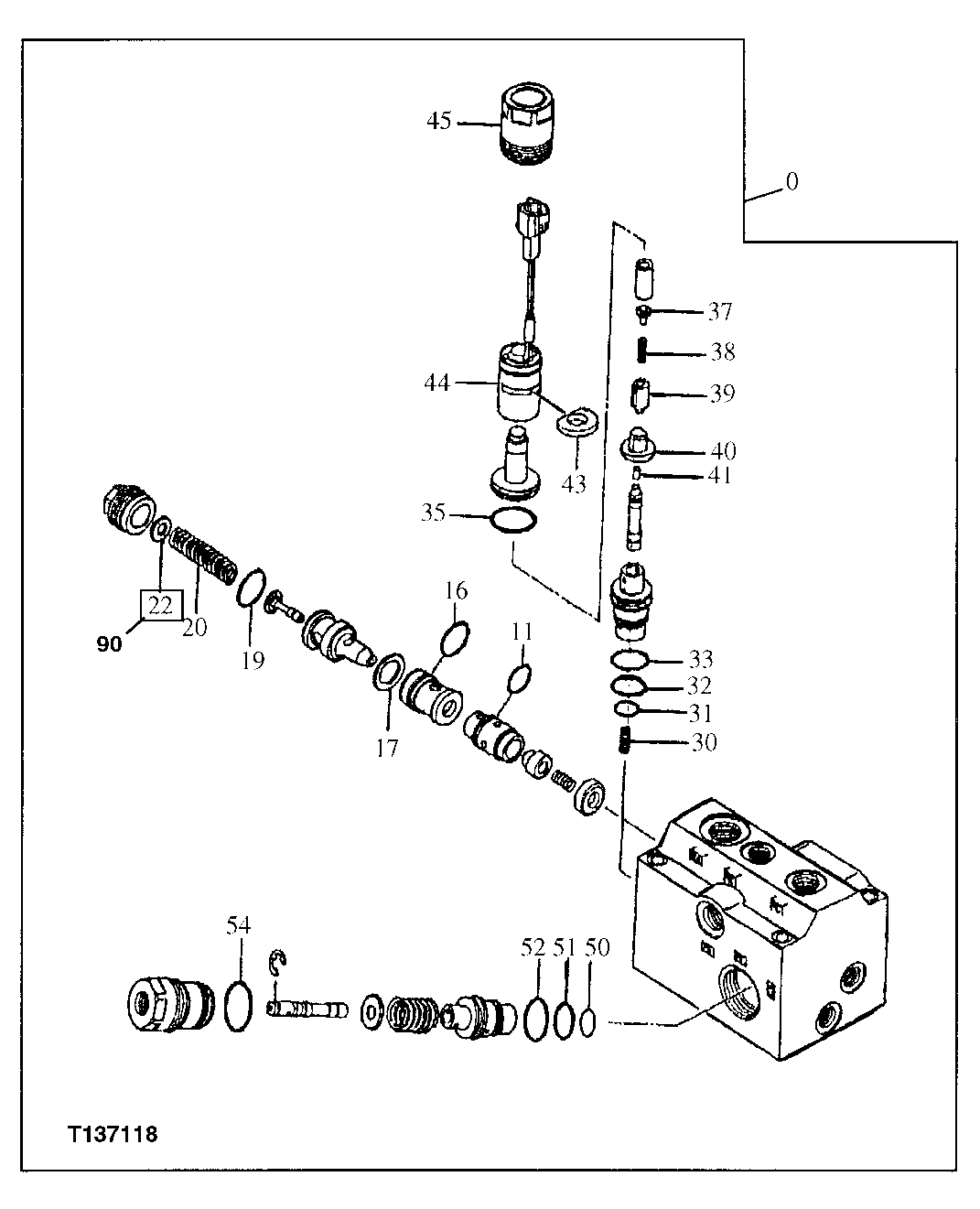

Запчасти John Deere 92ELC 296 - Solenoid Valve ( - 010999) 3360 Hydraulic System

0

TH9238584

Valve

(SUB FOR AT201052)

1шт.

11

4201993

O-Ring

(SUB FOR AT204778 OR 0601201)

1шт.

16

CH11563

Packing

(SUB FOR AT153900)

1шт.

17

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

19

4487138

O-Ring

(SUB FOR TH109253 OR 0308705)

1шт.

20

0308710

Spring

(SUB FOR TH109258)

1шт.

22

Gasket

(K)

1шт.

30

0308711

Spring

(SUB FOR TH109259)

1шт.

31

CH11570

O-Ring

1шт.

32

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)

1шт.

33

AT264333

O-Ring

(SUB FOR TH100096)

1шт.

35

0308713

O-Ring

28.500 X 2 mm (1.122" X 0 .079") (SUB FOR TH109261)

1шт.

37

Valve Seat

(SUB FOR AT201981) ( 0433302 NLA)

1шт.

4488306

Valve Seat

1шт.

38

4488310

Spring

(SUB FOR TH109264 OR 0308716)

1шт.

39

3096332

Plunger

(SUB FOR TH109265 OR 0308717)

1шт.

40

0397602

Stop

(SUB FOR AT201975)

1шт.

41

4488302

Rod

(SUB FOR 0308719) (SUB FOR TH109267)

1шт.

43

4488304

Spacer

(SUB FOR TH109269 OR 0308721)

1шт.

44

0601205

Electrical Coil

(SUB FOR AT191441)

1шт.

45

0308724

Screw

(SUB FOR TH109272)

1шт.

50

CH11570

O-Ring

1шт.

51

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)

1шт.

52

AT264333

O-Ring

(SUB FOR TH100096)

1шт.

54

0308713

O-Ring

28.500 X 2 mm (1.122" X 0 .079") (SUB FOR TH109261)

1шт.

90

AT146246

Shim Kit

(INCLUDES ALL (K) PARTS)

1шт.
