Запчасти John Deere 92ELC 295 - ONE SOLENOID AUXILIARY CONTROL 3360 Hydraulic System

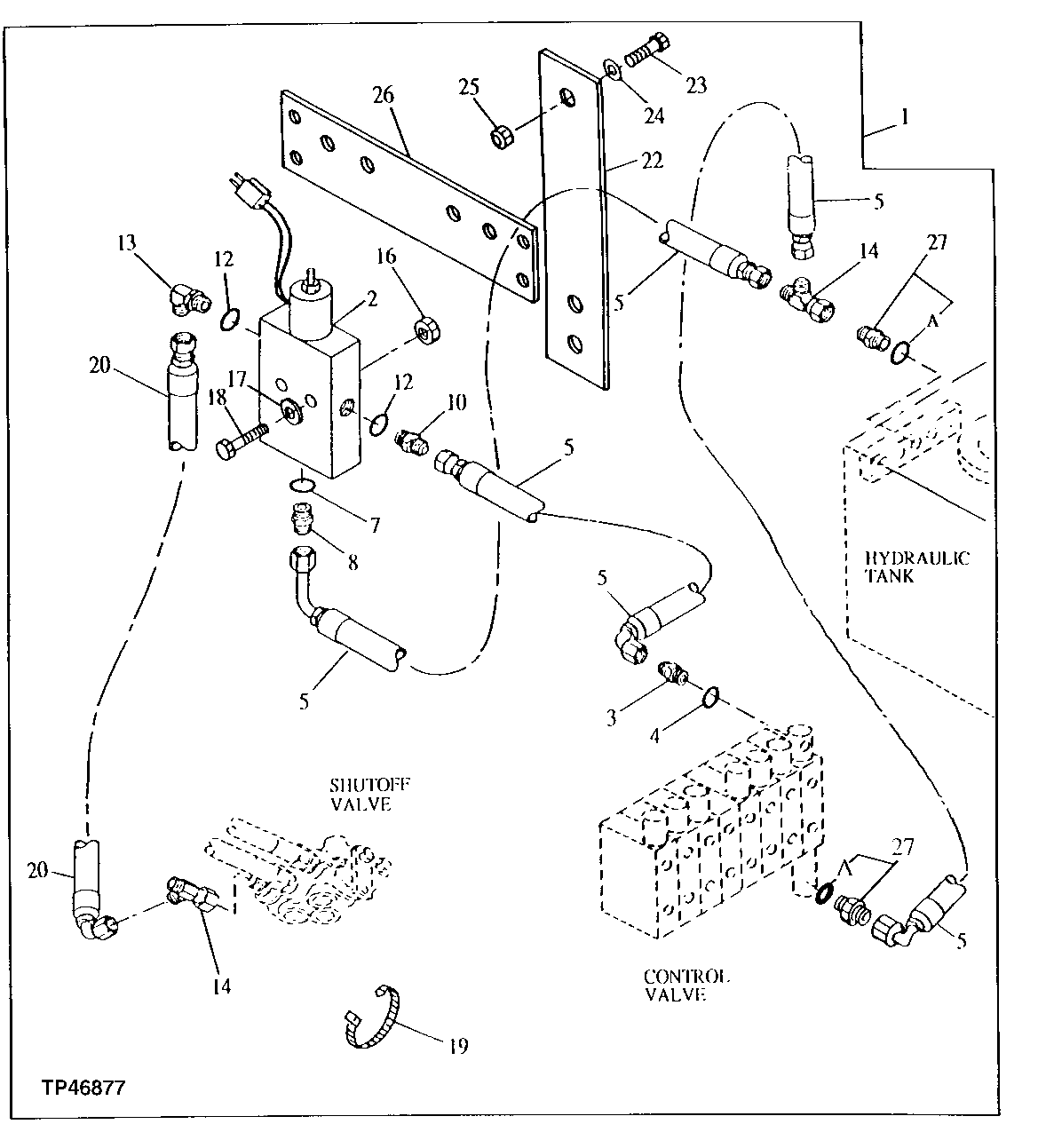

Схема запчастей John Deere 92ELC - 295 - ONE SOLENOID AUXILIARY CONTROL 3360 Hydraulic System

Артикул

Название

Примечание

Количество

1

Control

(WHOLEGOODS) (AUXILIARY - O NE SOLENOID) ( AT165330 NLA)

1шт.

2

AT306723

Elec.Proportional Valve

(INCLUDES ELECTRICAL COIL) (SUB FOR A T115437) (SUB FOR AT116486, AT140041)

1шт.

3

AT130053

Adapter Fitting

(SUB FOR AT131445) This Application

1шт.

4

CH11570

O-Ring

3шт.

5

AT71732

Hydraulic Hose

9/16" X 1422 mm (56") X 9/16"

3шт.

7

R26375

O-Ring

16.358 X 2.210 mm (0.644" X 0.087")

1шт.

8

R36426

Fitting

1шт.

10

R27212

Fitting

1шт.

12

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

2шт.

13

AT35121

Elbow Fitting

1шт.

14

AT36921

Tee Fitting

2шт.

16

14M7167

Lock Nut

M10

2шт.

17

24M7346

Washer

11 X 20 X 2 mm

2шт.

18

19M7808

Screw

M10 X 65

2шт.

19

R44302

Tie Band

Use As Required

6шт.

20

AT71737

Hydraulic Hose

9/16" X 1612 mm (63-1/2") X 9/16"

1шт.

22

T146100

Support

1шт.

23

19M7881

Screw

M8 X 20

5шт.

24

24M7336

Washer

9 X 16 X 1.600 mm

5шт.

25

14M7273

Nut

M8

5шт.

26

T149117

Strap

1шт.

27

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

27A

CH11570

O-Ring

1шт.

Выбрано товаров: 23
