293 - Electric Foot Switch For Auxiliary Control (One Solenoid)

Запчасти John Deere 92ELC 293 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 Hydraulic System

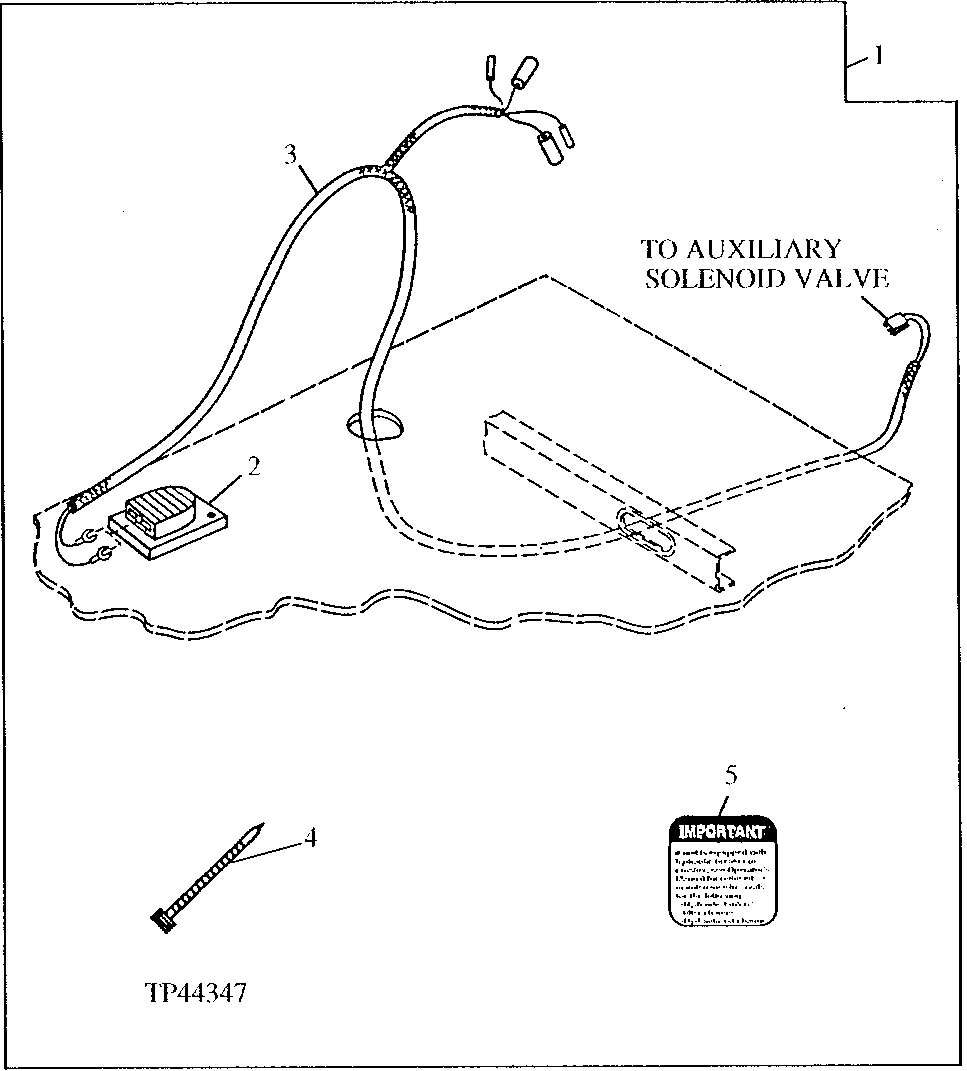

Схема запчастей John Deere 92ELC - 293 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT196587

Switch

(SUB FOR AT164896) (WHOLEGOODS) Elec tric Foot Switch For Auxiliary Valve

1шт.

2

AT82210

Switch

Electric Foot Control

1шт.

3

AT196588

Wiring Harness

1шт.

4

R44302

Tie Band

Use As Required

2шт.

5

T149434

Label

Important Auxiliary Electric Control

1шт.
