292 - Electric Foot Switch For Auxiliary Control (One Solenoid)

Запчасти John Deere 92ELC 292 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 Hydraulic System

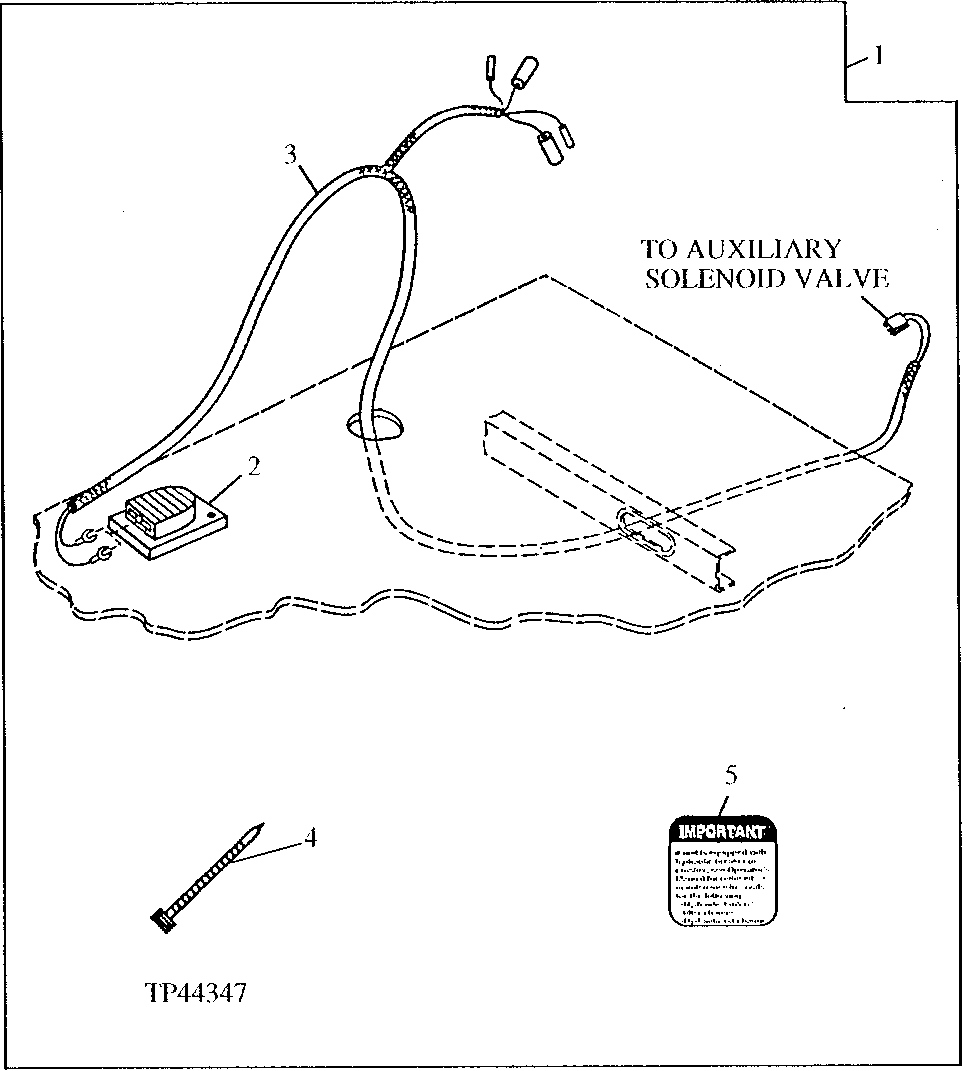

Схема запчастей John Deere 92ELC - 292 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Switch

(ALSO ORDER AT130053) (WHOLEGOODS) (ELECTRIC FOOT SWITCH FOR AUXILIARY VALVE) ( AT164896 NLA) (SUB AT196587 )

1шт.

2

AT82210

Switch

Electric Foot Control

1шт.

3

AT161183

Wiring Harness

1шт.

4

R44302

Tie Band

Use As Required

2шт.

5

T149434

Label

Important Auxiliary Electric Control

1шт.
