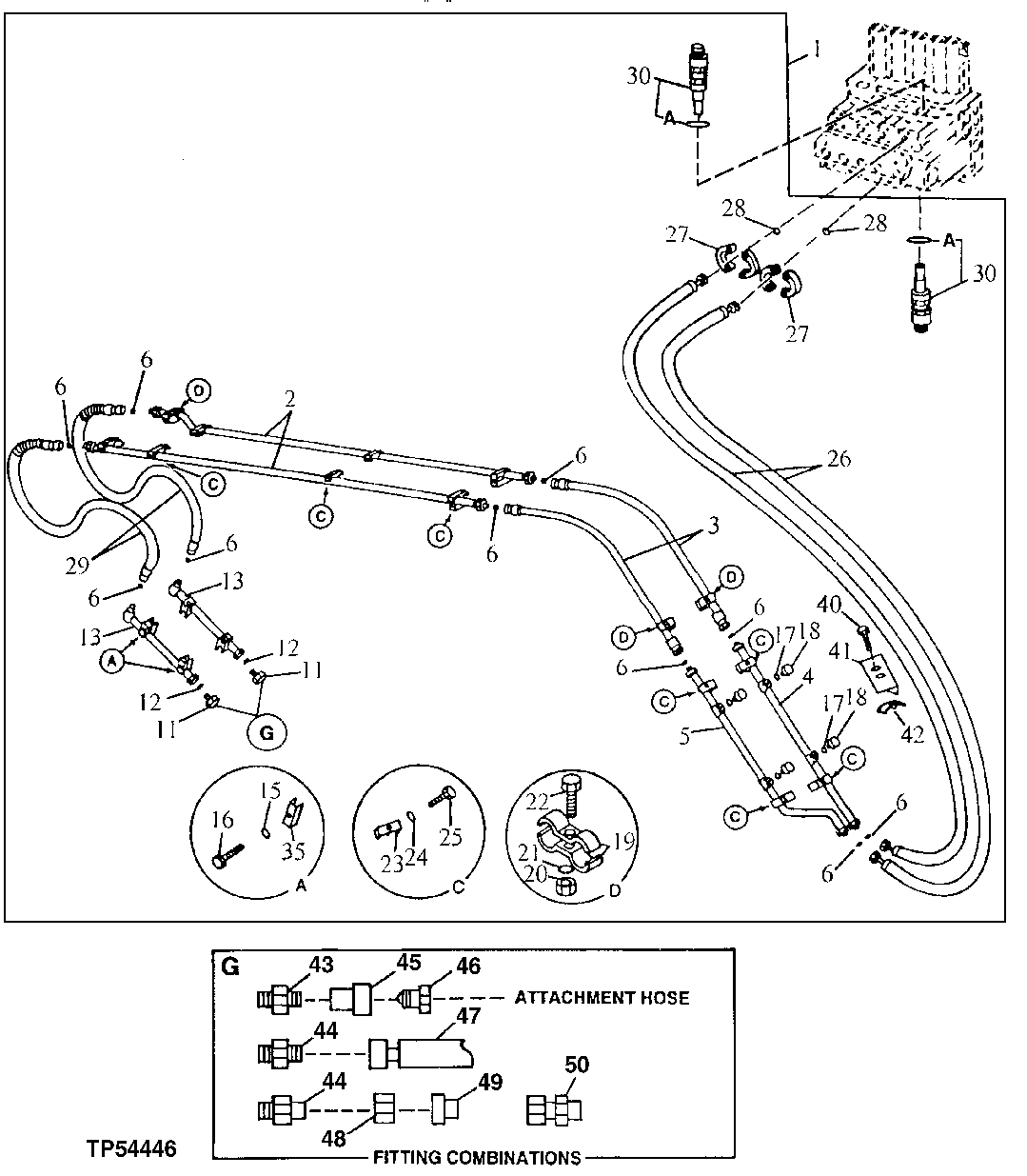

Запчасти John Deere 92ELC 289 - AUXILIARY HYDRAULIC PLUMBING 3360 Hydraulic System

1

AT163472

Kit

(USE W/ AT157667 HYDRAULIC FILTER RESTRI CTION INDICATOR KIT AND AT134347 INDICATO R COUPLER) (ALSO ORDER AT163483 HOSE FOR STANDARD ARM, OR AT163484 HOSE FOR LONG A RM) (ALSO ORDER AT168183 POPPET AND AT200 930 SPRING) (NOT FOR USE WITH SHORT ARM)

1шт.

2

AT163479

Line

2шт.

3

AT163473

Hydraulic Hose

36.5252" X 1612 mm (63-1/2") X 36.5252"

2шт.

4

AT163476

Line

1шт.

5

AT163474

Line

1шт.

6

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

10шт.

11

38H1151

Fitting Plug

2шт.

12

T78612

O-Ring

2шт.

13

AT159934

Oil Line

2шт.

15

12H301

Lock Washer

1/2"

4шт.

16

19M7753

Cap Screw

M12 X 70

4шт.

17

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

18

38H1418

Fitting

4шт.

19

4202103

Clamp

(SUB FOR TH108302)

8шт.

20

14M7275

Nut

M12

4шт.

21

12H301

Lock Washer

1/2"

4шт.

22

19M7361

Cap Screw

M12 X 50

4шт.

23

4189860

Clamp

(SUB FOR TH108314)

10шт.

24

12H301

Lock Washer

1/2"

10шт.

25

19M7753

Cap Screw

M12 X 70

10шт.

26

AT163481

Hydraulic Hose

3/4" X 1700 mm (67") X 36.5252"

2шт.

27

R29424

Flange Fitting

4шт.

28

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

29

AT163483

Hydraulic Hose

36.5252" X 1485 mm (58-1/2") X 36.5252" (ORD ER SEPARATELY FROM KIT) Use With Standard Arm

2шт.

AT163484

Hydraulic Hose

36.5252" X 2235 mm (88") X 36.5252" (ORD ER SEPARATELY FROM KIT) Use With Long Arm

2шт.

30

4228353

Pressure Relief Valve

(SUB FOR TH111705) (REL IEF SETTING AT 4270 PSI)

2шт.

30A

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

35

4190127

Clamp

(SUB FOR TH108313)

4шт.

40

19M8061

Cap Screw

M12 X 140

1шт.

41

8057220

Cover

(SUB FOR AT201158)

1шт.

42

4189860

Clamp

(SUB FOR TH108314)

1шт.

43

38H1196

Adapter Fitting

((-20) 1 11/16 ORFS X ( -16) 1 5/16 SAE O-RING)

2шт.

4207425

Adapter Fitting

((-20) 1 11/16 ORFS X (-16) 1 IN BSPP) (SUB FOR TH111740)

2шт.

38H1165

Adapter Fitting

((-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING)

2шт.

4267610

Adapter Fitting

((-20) 1 11/16 ORFS X (-20) 1 1/4 IN BSPP) (SUB FOR AT137960)

2шт.

44

38H1282

Union Fitting

((-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS)

2шт.

45

AT117364

Hydr. Quick Coupler Socket

Female Quick Coupler ( -12) 1 1/16 SAE O -Ring

2шт.

AT120499

Coupling

Female Quick Coupler ( -16) 1 5/16 SAE O -Ring

2шт.

46

AT117365

Hydr. Quick Coupler Plug

Male Quick Coupler (-12) 1 1/16 SAE O -Ring

2шт.

AT120498

Coupling

Male Quick Coupler (-16) 1 5/16 SAE O -Ring

2шт.

47

X1JS78-20-16

Hose Fitting

1 1/4 x1in., Hose End Straight

2шт.

X1J978-20-16

Elbow Fitting

90 DEG 1 1/4 x1in., Hose End

2шт.

48

X20BL-S

Tube Nut

ORFS (-20) 1 11/16

2шт.

49

38H1477

Reducer

ORFS (-20) TO (-12)

2шт.

50

38H1070

Fitting

(1 3/16 ORFS X 1 1/16 SAE O-RING)

2шт.
