20 - Servo Piston Assembly (011000 - )

Запчасти John Deere 92ELC 20 - Servo Piston Assembly (011000 - ) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

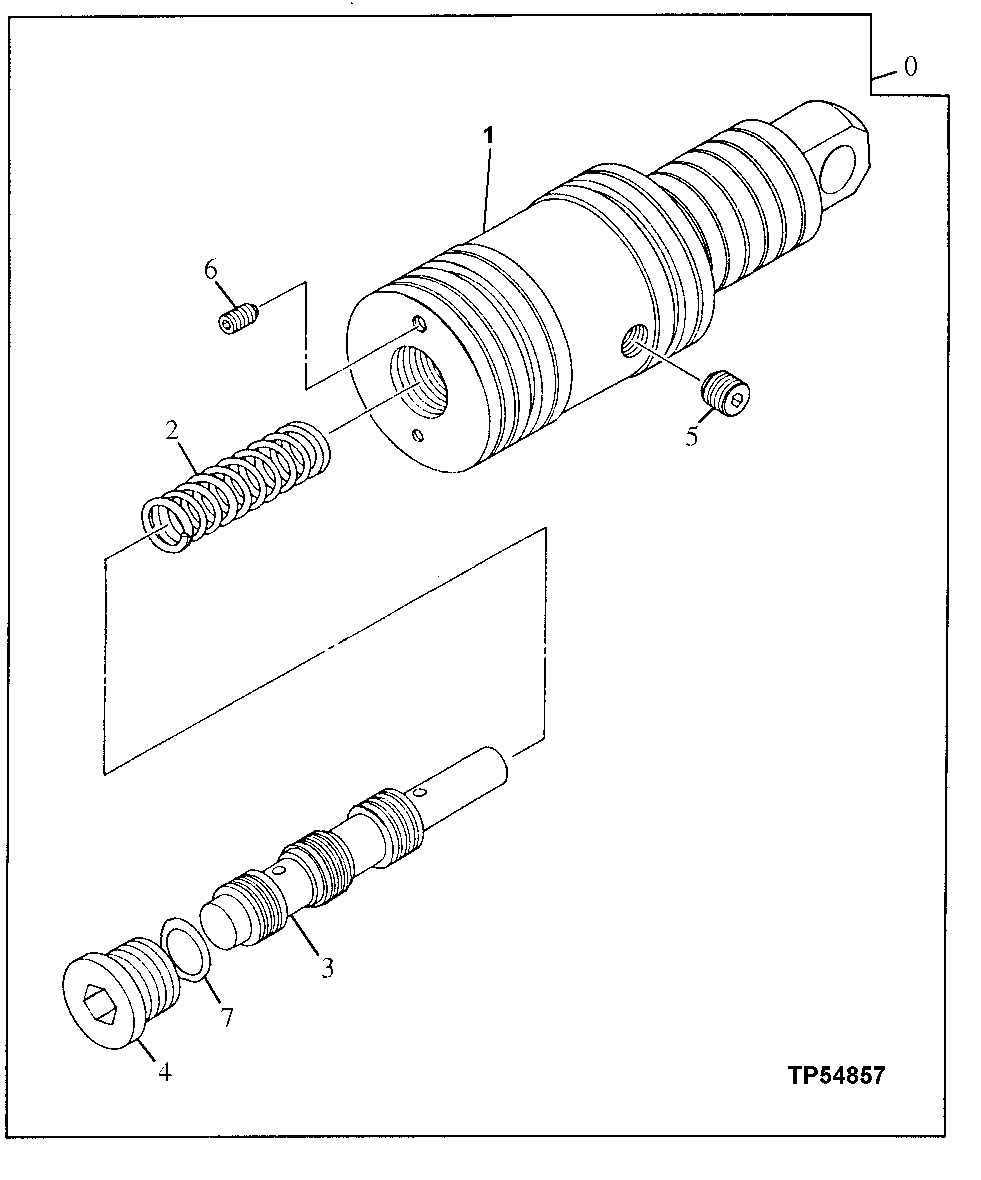

Схема запчастей John Deere 92ELC - 20 - Servo Piston Assembly (011000 - ) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

9098902

Piston

(SUB FOR AT203612)

1шт.

1

Piston

(SUB FOR AT217938) ( 3054013 NLA)

1шт.

2

4252599

Compression Spring

(SUB FOR AT154723)

1шт.

3

4255977

Spool

(SUB FOR AT154750)

1шт.

4

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

1шт.

5

4257661

Plug

(SUB FOR AT154756)

1шт.

6

4252655

Orifice

(SUB FOR AT154724)

1шт.

7

CH11570

O-Ring

1шт.
