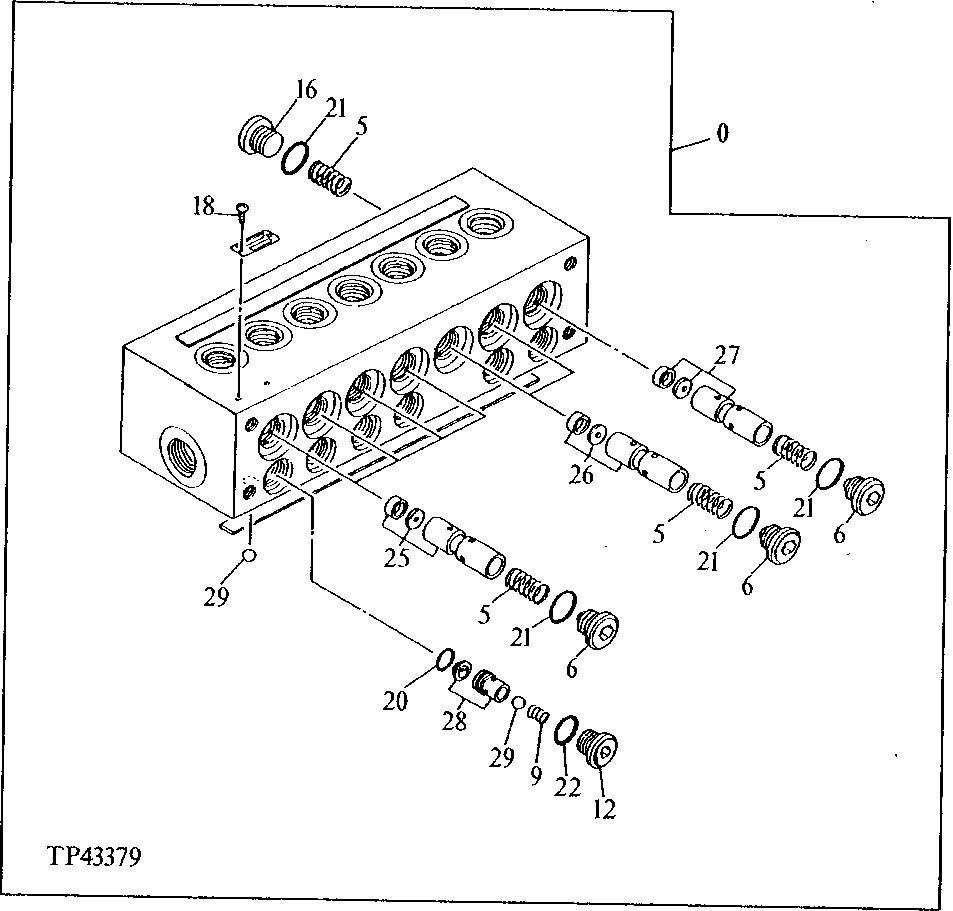

Запчасти John Deere 92ELC 283 - Flow Control Valve 3360 Hydraulic System

0

4188552

Flow Control Hyd. Valve

(SUB FOR TH109593)

1шт.

5

0309801

Spring

(SUB FOR TH109280)

14шт.

6

0309802

Pipe Plug

(SUB FOR TH109281)

7шт.

9

0309803

Spring

(SUB FOR TH109282)

6шт.

12

AT49216

Fitting Plug

6шт.

16

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

7шт.

18

0208717

Screw

(SUB FOR TH102697)

2шт.

20

CH11569

Packing

6шт.

21

CH11570

O-Ring

14шт.

22

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

6шт.

25

0309807

Plunger

(SUB FOR TH109287)

4шт.

26

4212780

Plunger

(SUB FOR TH111865)

2шт.

27

4212781

Plunger

(SUB FOR TH111866)

1шт.

28

0309810

Filter

(SUB FOR TH109290)

6шт.

29

L38718

Ball

6 mm (0.236")

12шт.
