281 - FRONT PIPINGS FOR SHORT ARM

Запчасти John Deere 92ELC 281 - FRONT PIPINGS FOR SHORT ARM 3360 Hydraulic System

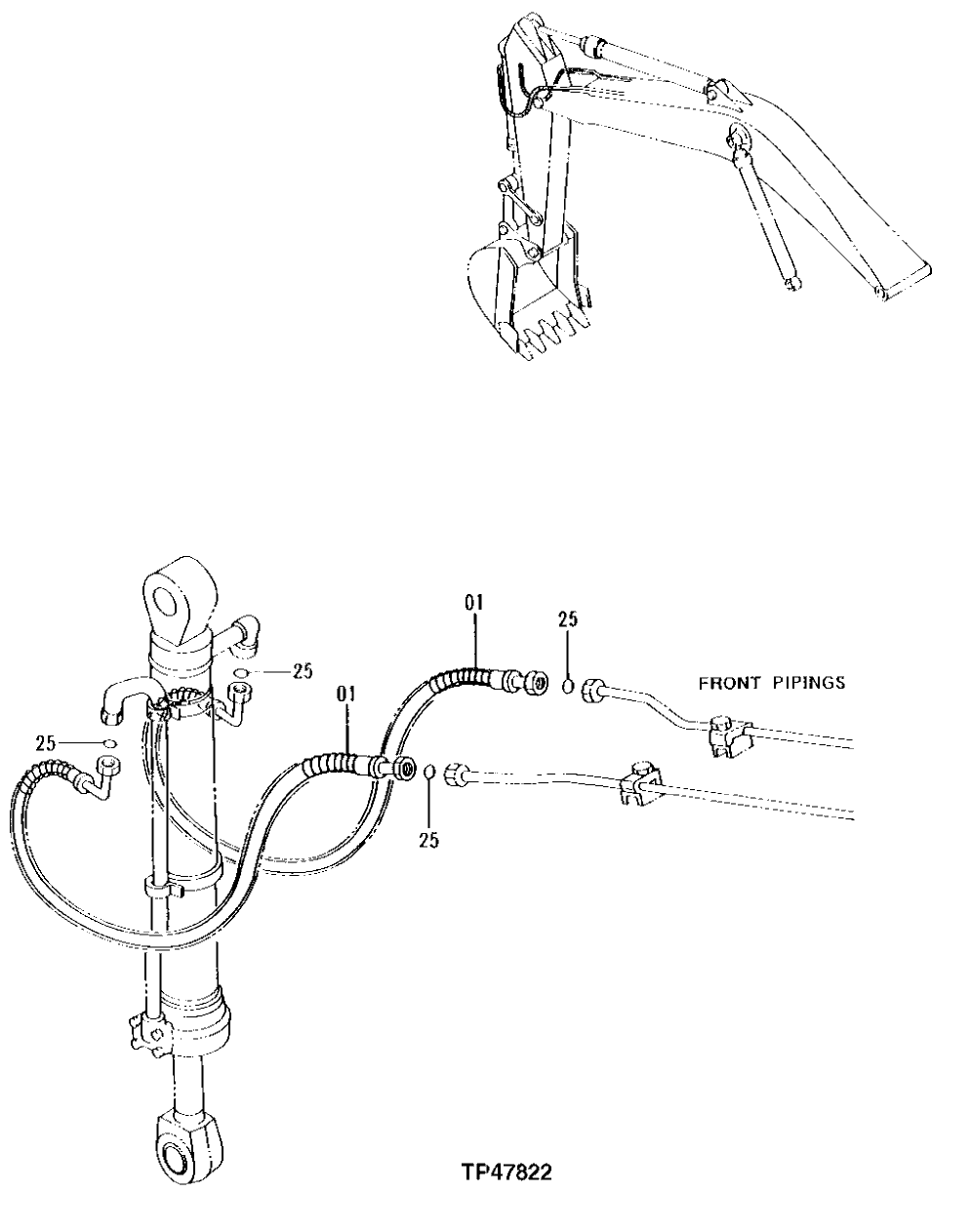

Схема запчастей John Deere 92ELC - 281 - FRONT PIPINGS FOR SHORT ARM 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4318814

Hose

(SUB FOR AT201260)

2шт.

25

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

30

AT176005

Arm

(WHOLEGOODS) (INCLUDES SHORT ARM, BUCKE T CYLINDER AND LINKAGE) Not Illustrated Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

Выбрано товаров: 3
