279 - FRONT PIPINGS FOR STANDARD ARM

Запчасти John Deere 92ELC 279 - FRONT PIPINGS FOR STANDARD ARM 3360 Hydraulic System

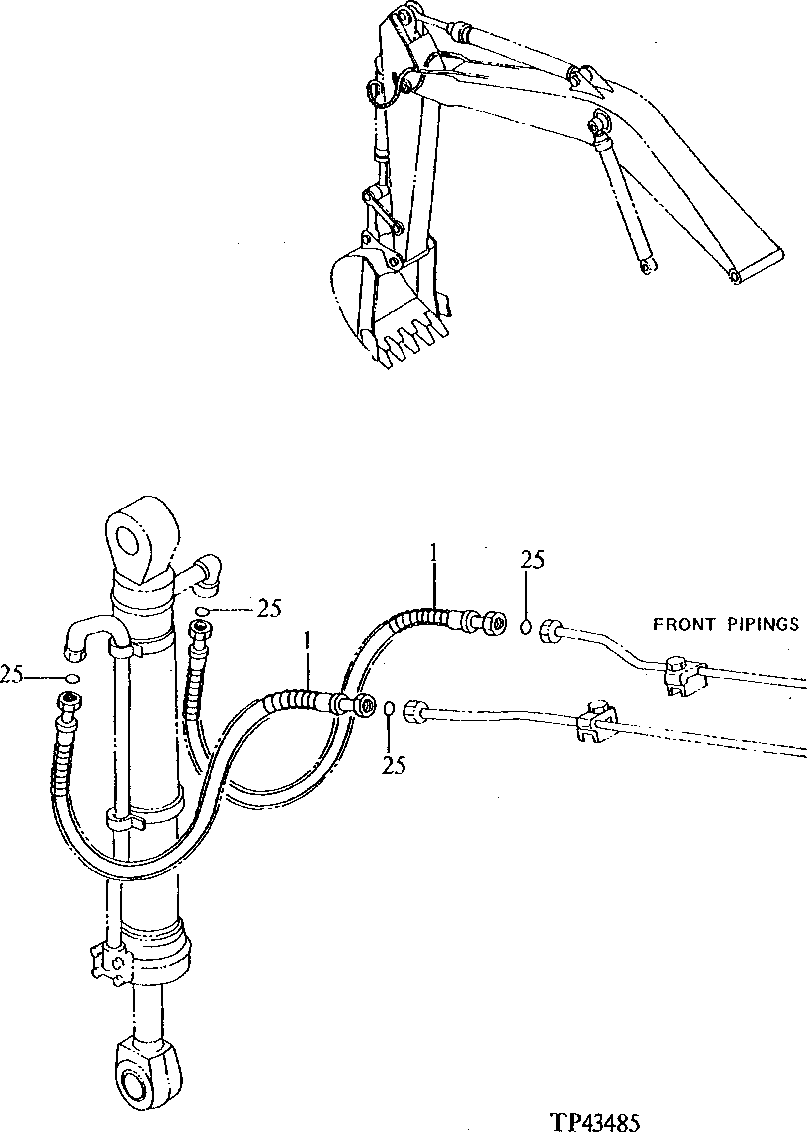

Схема запчастей John Deere 92ELC - 279 - FRONT PIPINGS FOR STANDARD ARM 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT201217

Hydraulic Hose

36.5252" X 1300 mm (51-1/4") X 36.5252"

2шт.

4055191

Hose Guard

(SUB FOR TH111808)

2шт.

25

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

30

AT175816

Arm

(WHOLEGOODS) (INCLUDES STANDARD ARM, BUC KET CYLINDER AND LINKAGE) Not Illustrated Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.
