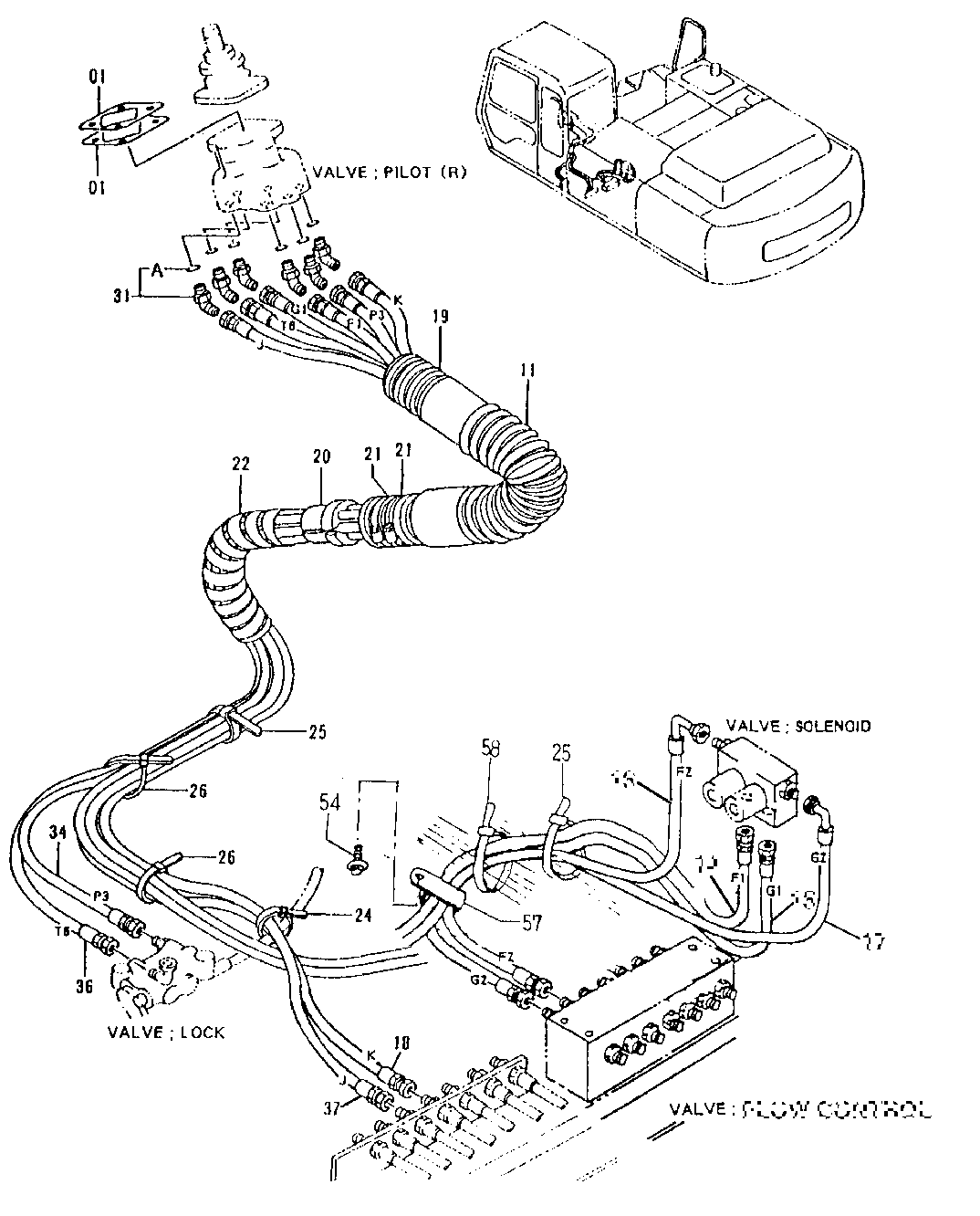

Запчасти John Deere 92ELC 277 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

1

4317301

Spacer

(SUB FOR AT165109)

2шт.

11

4329965

Tube

(SUB FOR AT202328)

1шт.

14

4328976

Hydraulic Hose

(SUB FOR AT204766)

1шт.

15

4328977

Hydraulic Hose

(SUB FOR AT204767)

1шт.

16

4328983

Hydraulic Hose

(SUB FOR AT204757)

1шт.

17

4328984

Hydraulic Hose

(SUB FOR AT201258) (SUB FOR AT204758)

1шт.

18

AT201257

Hydraulic Hose

1шт.

19

4333133

Tube

(SUB FOR AT202463)

1шт.

20

3056040

Stop

(SUB FOR AT154140)

1шт.

21

TY22472

Clamp

(SUB FOR AT145651)

2шт.

22

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

1шт.

24

H77698

Tie Band

1шт.

25

H77698

Tie Band

2шт.

26

H77698

Tie Band

2шт.

31

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

31A

M800650

Packing

1шт.

34

AT161995

Hydraulic Hose

9/16" X 1600 mm (63") X 9/16"

1шт.

36

AT161995

Hydraulic Hose

9/16" X 1600 mm (63") X 9/16"

1шт.

37

AH132373

Hose

9/16" X 2199 mm (86-1/2") X 9/16"

1шт.

38

AT23504

Hydraulic Hose

9/16" X 612 mm (24") X 9/16" Not Illustra ted (USE FOR CONVERSTION FROM SAE PATTERN TO JOHN DEERE PATTERN - SEE OPERATOR'S MAN UAL PAGE 35-2 FOR INSTALLATION INSTRUCTION S)

1шт.

54

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

57

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

58

H77698

Tie Band

1шт.
