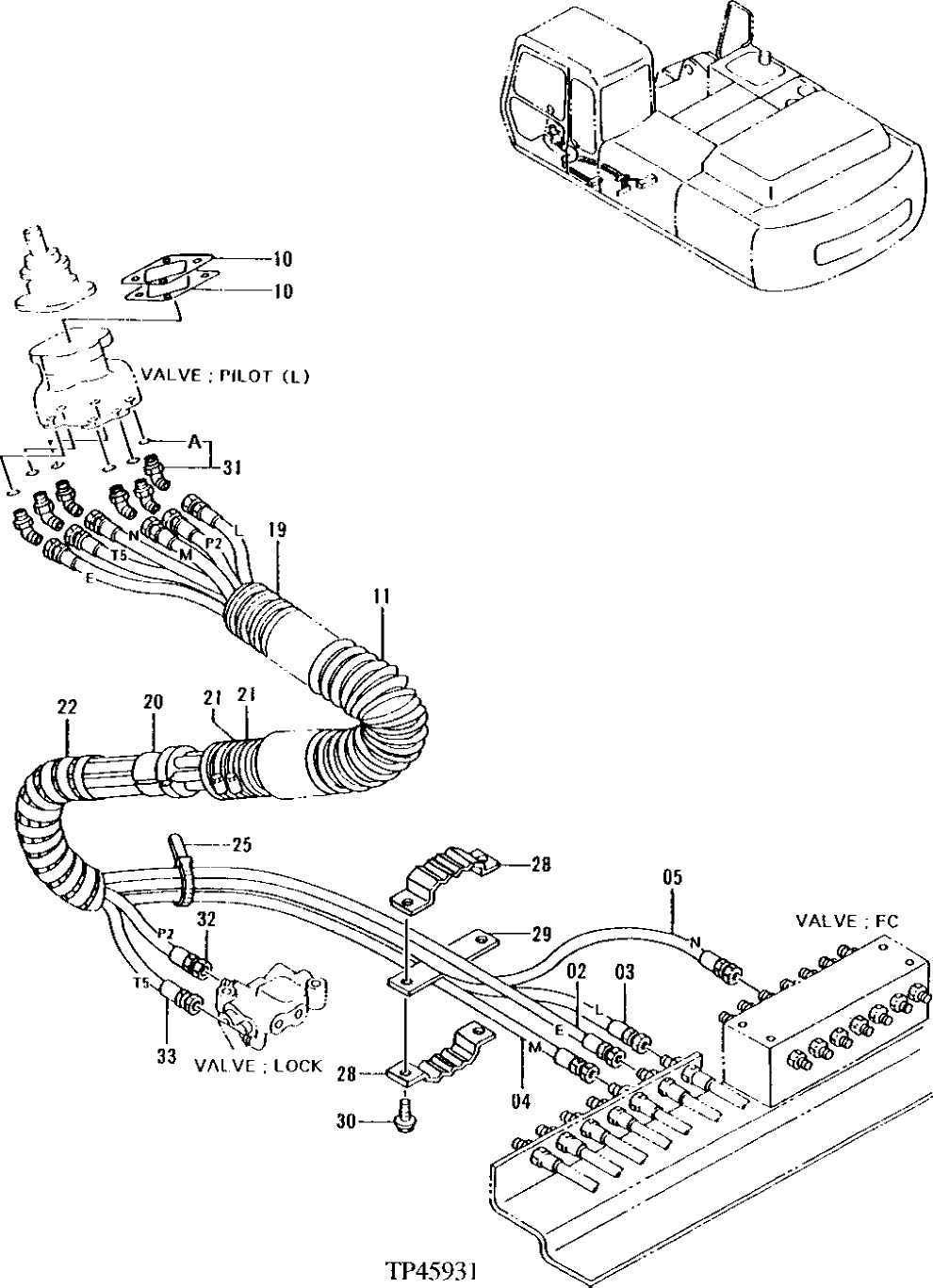

Запчасти John Deere 92ELC 275 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

2

AT201251

Hydraulic Hose

1шт.

3

AT201252

Hydraulic Hose

1шт.

4

AT201253

Hydraulic Hose

1шт.

5

AT201253

Hydraulic Hose

(SUB FOR AT201254)

1шт.

10

4317301

Spacer

(SUB FOR AT165109)

2шт.

11

4329965

Tube

(SUB FOR AT202328)

1шт.

19

4333133

Tube

(SUB FOR AT202463)

1шт.

20

3056040

Stop

(SUB FOR AT154140)

1шт.

21

TY22472

Clamp

(SUB FOR AT145651)

2шт.

22

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

1шт.

25

H77698

Tie Band

1шт.

28

9727638

Hose Clamp

(SUB FOR AT130505)

2шт.

29

9727636

Plate

(SUB FOR AT130504)

1шт.

30

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

31

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

31A

M800650

Packing

1шт.

32

AT161994

Hose

9/16" X 1300 mm (51-1/4") X 9/16"

1шт.

33

AT161994

Hose

9/16" X 1300 mm (51-1/4") X 9/16"

1шт.

34

AT23504

Hydraulic Hose

9/16" X 612 mm (24") X 9/16" Not Illustra ted (USE FOR CONVERSION FROM SAE PATTERN T O JOHN DEERE PATTERN - SEE OPERATOR'S MANU AL PAGE 35-2 FOR INSTALLATION INSTRUCTIONS )

1шт.
