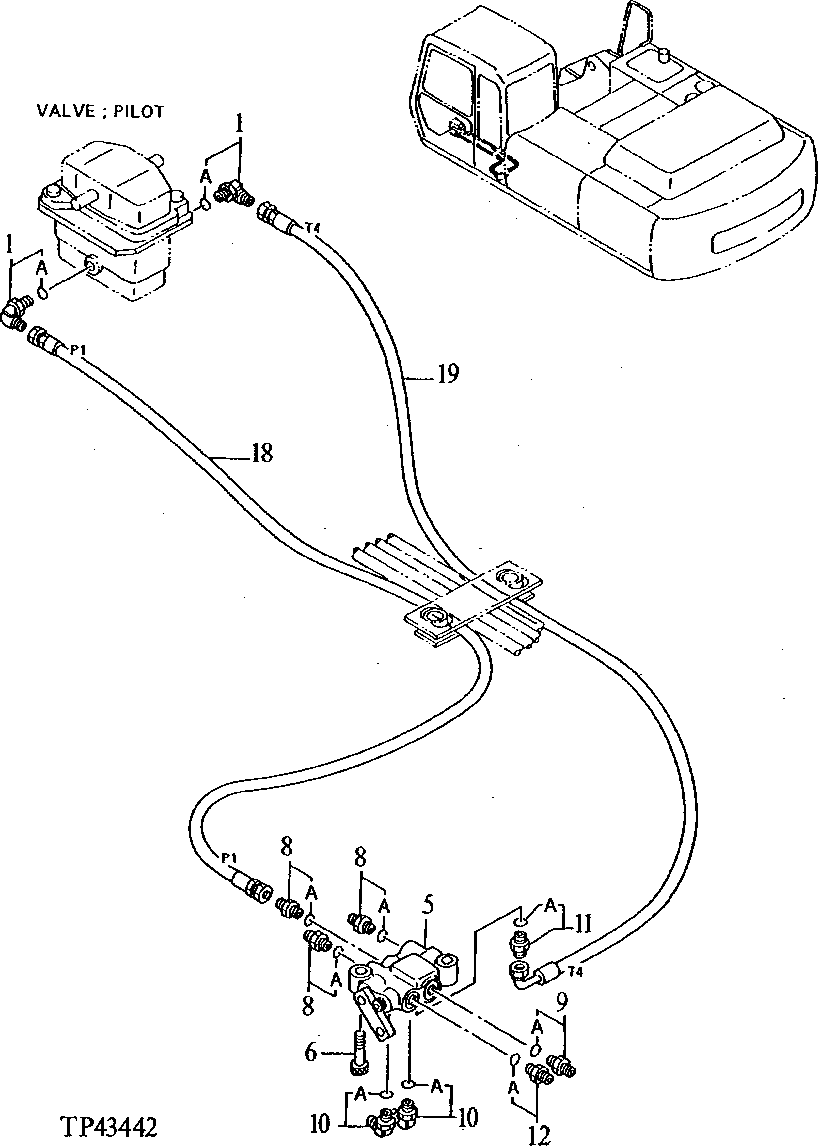

Запчасти John Deere 92ELC 273 - PILOT PIPINGS 3360 Hydraulic System

1

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

2шт.

1A

M800650

Packing

1шт.

5

4254611

Flow Control Hyd. Valve

(SUB FOR AT154216) Lock

1шт.

6

19M8904

Screw

M10 X 45 (SUB FOR M341045)

2шт.

8

4261938

Fitting

(SUB FOR AT154285)

3шт.

8A

CH11570

O-Ring

1шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

9A

CH11570

O-Ring

1шт.

10

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

2шт.

10A

CH11570

O-Ring

1шт.

11

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

11A

CH11570

O-Ring

1шт.

12

4198407

Adapter Fitting

(SUB FOR AT107395)

1шт.

12A

CH11570

O-Ring

1шт.

18

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

19

AT69452

Hydraulic Hose

9/16" X 1225 mm (48-1/4") X 9/16"

1шт.
