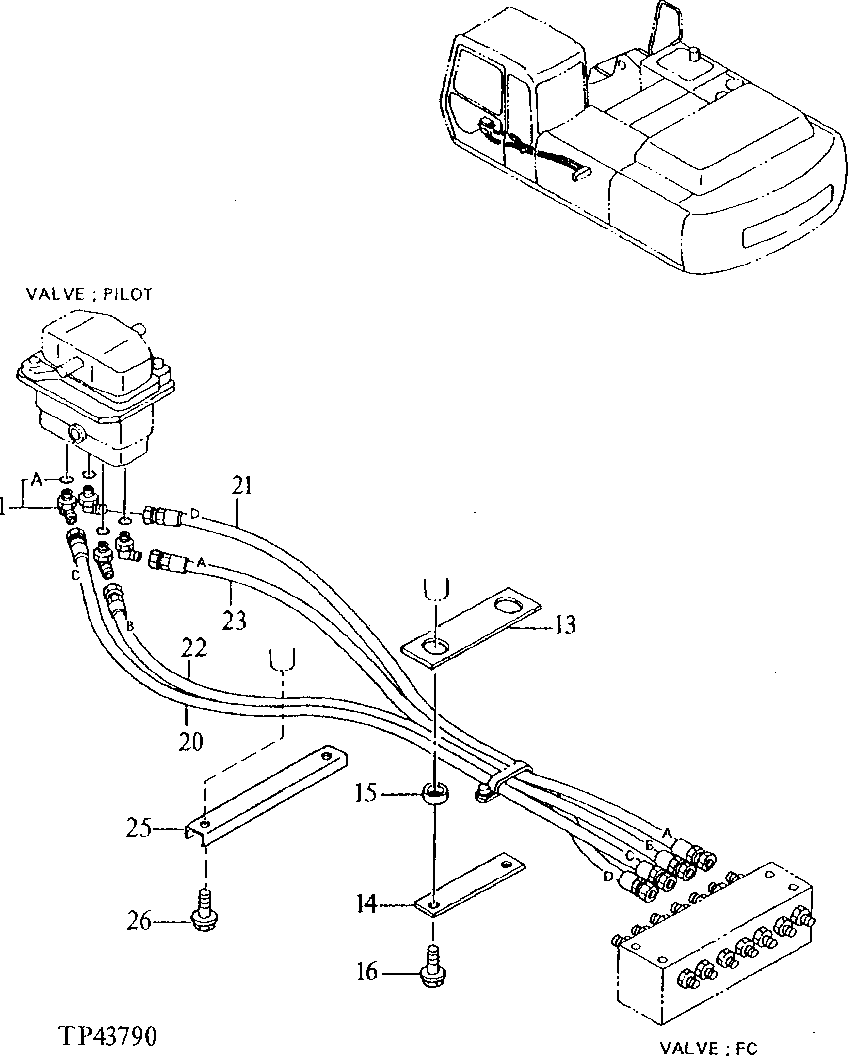

Запчасти John Deere 92ELC 271 - PILOT PIPINGS ( - 010999) 3360 Hydraulic System

1

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

4шт.

1A

M800650

Packing

1шт.

13

4270771

Plate

(SUB FOR AT154311)

1шт.

14

9736384

Plate

(SUB FOR AT154544)

1шт.

15

R54204

Half Sleeve

(SUB FOR AT154312 OR 4270773)

2шт.

16

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

20

AR103791

Hose

9/16" X 1625 mm (64") X 9/16" (SUB FOR AT201213)

1шт.

21

AR103791

Hose

9/16" X 1625 mm (64") X 9/16" (SUB FOR AT201214)

1шт.

22

4447637

Hydraulic Hose

(SUB FOR AT201215 OR AT71731)

1шт.

23

4447637

Hydraulic Hose

(SUB FOR AT201216 OR AT71731)

1шт.

25

4323723

Channel

(SUB FOR AT201277)

1шт.

26

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.
