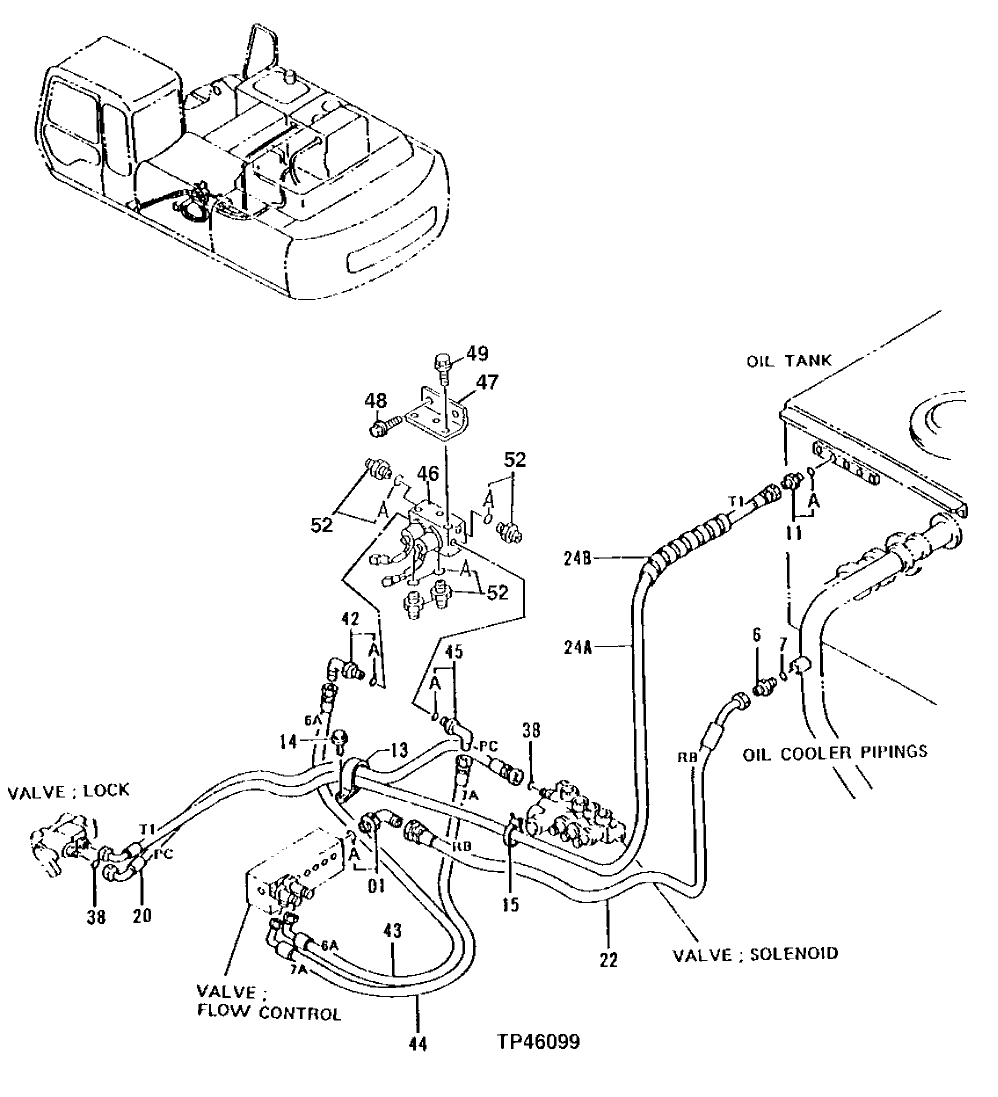

Запчасти John Deere 92ELC 270 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

1

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

1A

4506418

O-Ring

(SUB FOR U46489)

1шт.

6

X8-10F5OX

Adapter Fitting

(SUB FOR TH110204 OR TH 101006, ALONG W/ U46489)

1шт.

7

4506418

O-Ring

(SUB FOR U46489)

1шт.

11

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

11A

CH11570

O-Ring

1шт.

13

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

14

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

15

H77698

Tie Band

1шт.

20

4328989

Hydraulic Hose

(SUB FOR AT204759)

1шт.

22

4313713

Hydraulic Hose

(SUB FOR AT201229)

1шт.

24A

4632363

Hydraulic Hose

(SUB FOR AT201221) ( 4313705 NLA)

1шт.

24B

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

1шт.

38

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

42

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

42A

M800650

Packing

1шт.

43

4343347

Hydraulic Hose

(SUB FOR AT204760)

1шт.

44

4343348

Hydraulic Hose

(SUB FOR AT204761)

1шт.

45

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR AT204940) (SUB FOR TH101930)

1шт.

45A

M800650

Packing

1шт.

46

4336289

Solenoid Valve

(SUB FOR AT202575)

1шт.

47

4325520

Angle

(SUB FOR AT204956)

1шт.

48

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

49

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

52

4200467

Adapter Fitting

(SUB FOR TH108417)

4шт.

52A

M800650

Packing

4шт.
