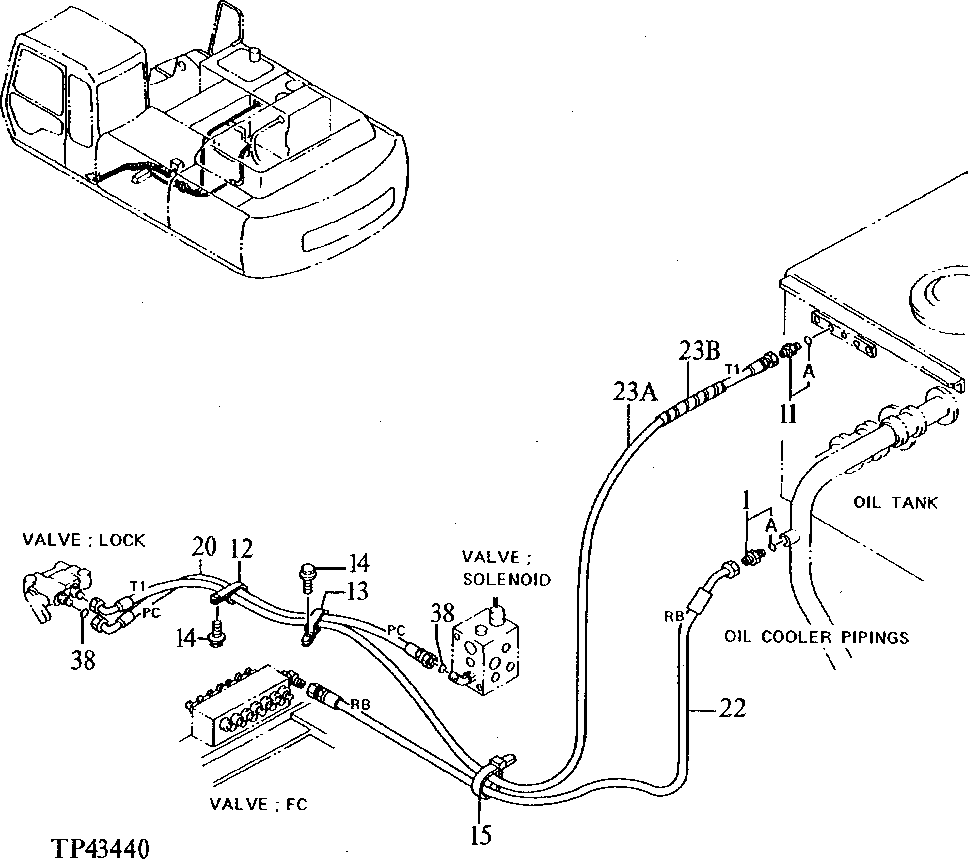

Запчасти John Deere 92ELC 269 - PILOT PIPINGS ( - 010999) 3360 Hydraulic System

1

X8-10F5OX

Adapter Fitting

SUB FOR TH101006

1шт.

1A

4506418

O-Ring

SUB FOR U46489

1шт.

11

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

11A

CH11570

O-Ring

1шт.

12

T32854

Clamp

SUB FOR TH110522 This Application

1шт.

13

T32854

Clamp

1шт.

14

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

15

H77698

Tie Band

1шт.

20

4316578

Hydraulic Hose

SUB FOR AT201248

1шт.

22

4313713

Hydraulic Hose

SUB FOR AT201229

1шт.

23A

4632363

Hydraulic Hose

SUB FOR AT201221, 4313705 NLA

1шт.

23B

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

1шт.

38

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.
