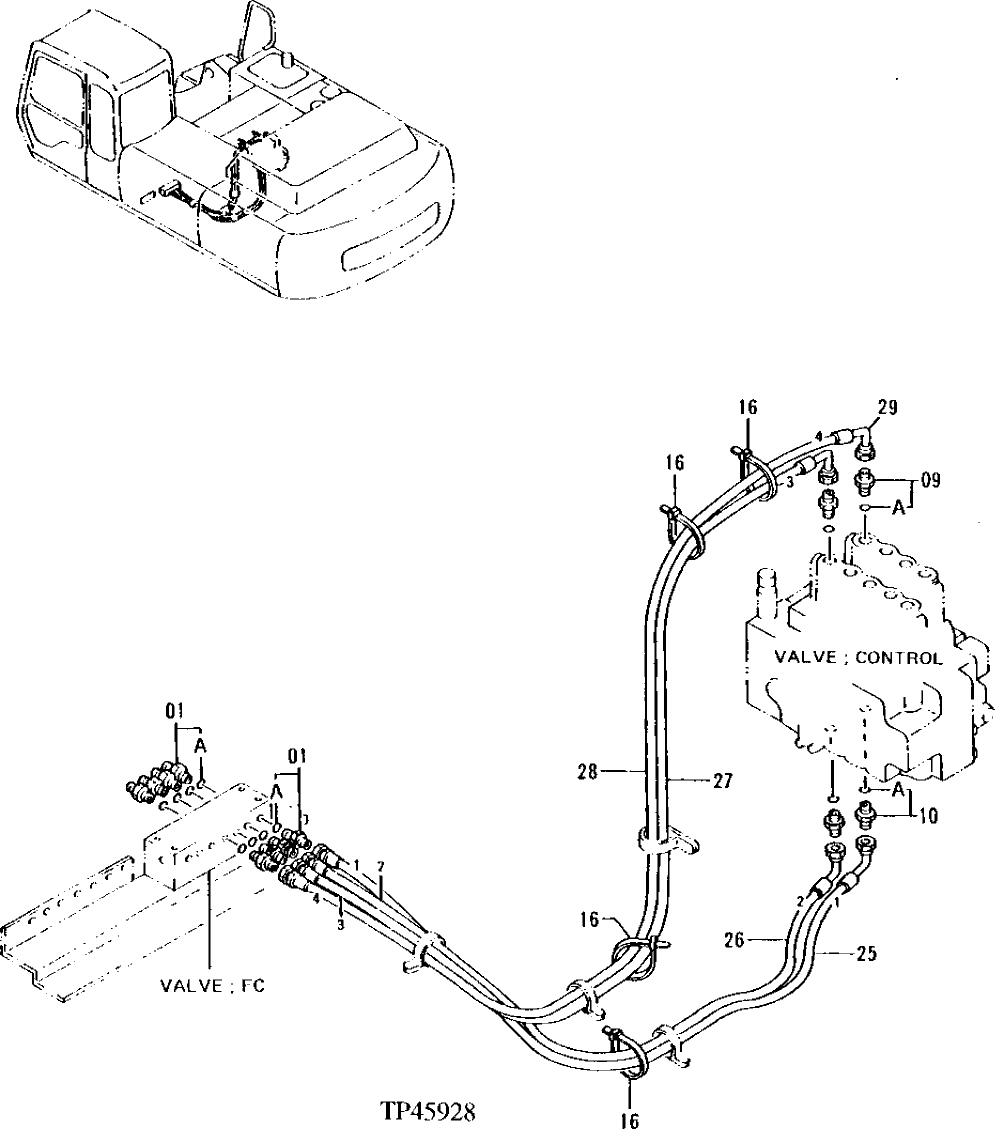

Запчасти John Deere 92ELC 268 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

1

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

1A

CH11570

O-Ring

1шт.

9

4202422

Adapter Fitting

(SUB FOR TH108440)

2шт.

9A

CH11570

O-Ring

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

10A

CH11570

O-Ring

1шт.

16

H77698

Tie Band

4шт.

25

4283435

Hydraulic Hose

(SUB FOR AT201205)

1шт.

26

4313702

Hydraulic Hose

(SUB FOR AT201218)

1шт.

27

4313703

Hydraulic Hose

(SUB FOR AT201219)

1шт.

28

AH132373

Hose

9/16" X 2199 mm (86-1/2") X 9/16" (SUB FOR 4313704, ALONG W/ AE24616)

1шт.

29

AE24616

Elbow Fitting

1шт.
