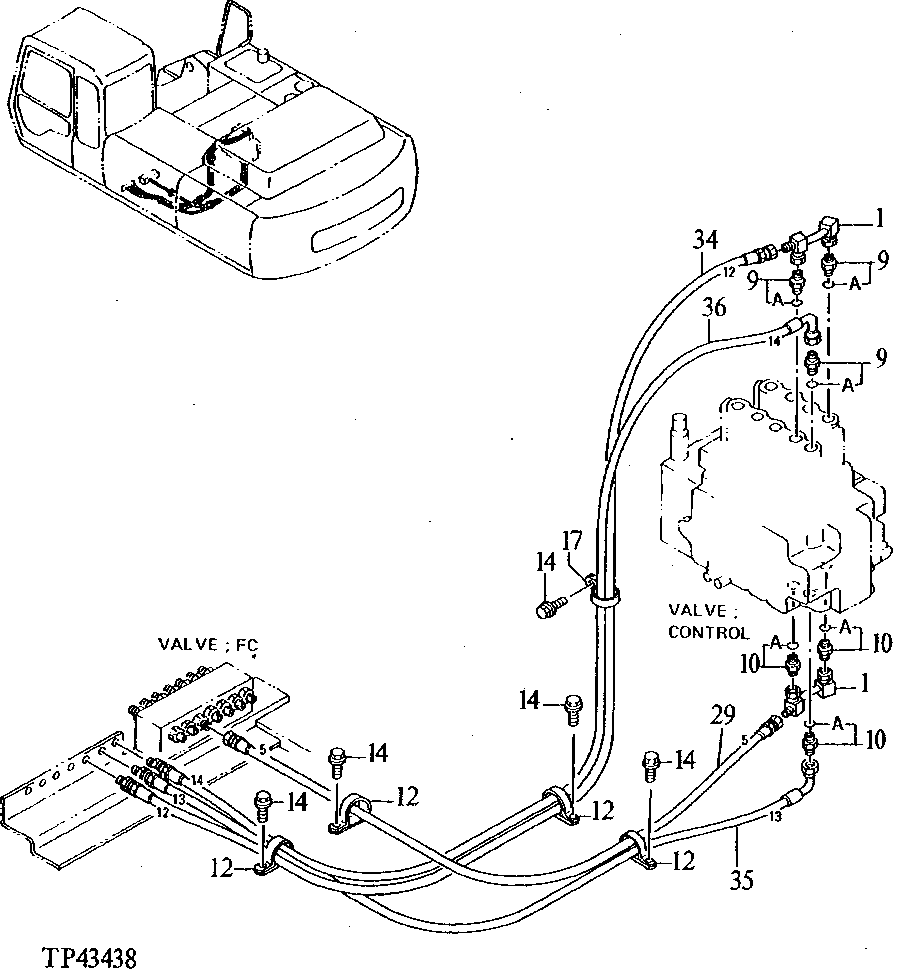

Запчасти John Deere 92ELC 265 - PILOT PIPINGS ( - 010999) 3360 Hydraulic System

1

8056426

Line

(SUB FOR AT201148)

2шт.

9

4202422

Adapter Fitting

(SUB FOR TH108440)

3шт.

9A

CH11570

O-Ring

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

10A

CH11570

O-Ring

1шт.

12

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

4шт.

14

19M7402

Cap Screw

M10 X 25

5шт.

12M7066

Lock Washer

10 mm

5шт.

17

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

29

AT201222

Hydraulic Hose

1шт.

34

AT130683

Hydraulic Hose

9/16" X 2349 mm (92-1/2") X 9/16" (SUB FO R 4313712) (ALSO ORDER R27238 AND 14H832)

1шт.

R27238

Fitting

1шт.

14H832

Nut

9/16"

1шт.

35

4313710

Hose

(SUB FOR AT201226)

1шт.

36

4313711

Hose

(SUB FOR AT201227)

1шт.
