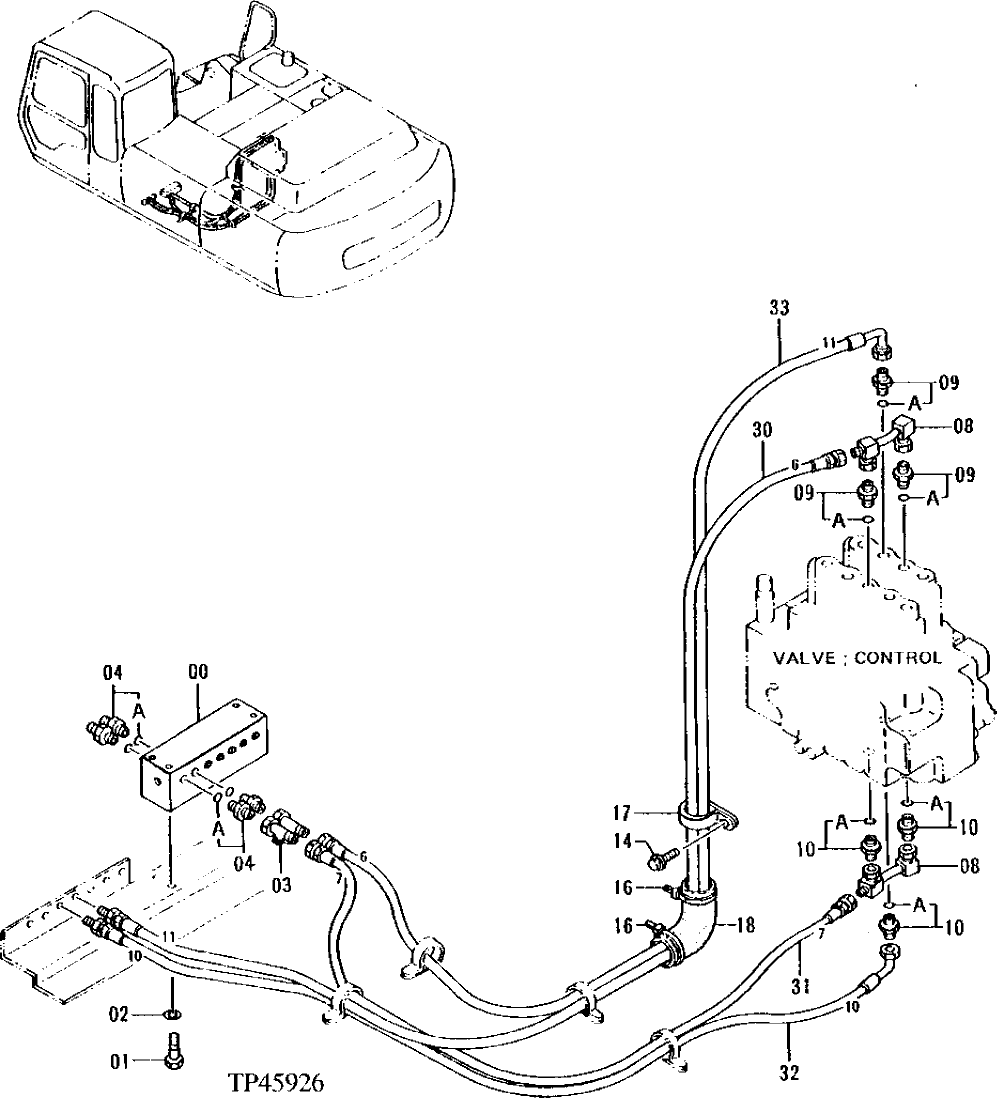

Запчасти John Deere 92ELC 264 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

0

4188552

Flow Control Hyd. Valve

(SUB FOR TH109593) Flow Control

1шт.

1

19M7938

Cap Screw

M10 X 20

4шт.

2

12M7066

Lock Washer

10 mm

4шт.

3

4246672

Tee Fitting

(SUB FOR AT200991)

2шт.

4

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

4A

CH11570

O-Ring

1шт.

8

8056426

Line

(SUB FOR AT201148)

2шт.

9

4202422

Adapter Fitting

(SUB FOR TH108440)

3шт.

9A

CH11570

O-Ring

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

10A

CH11570

O-Ring

1шт.

14

19M7402

Cap Screw

M10 X 25

1шт.

16

H77698

Tie Band

2шт.

17

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

18

4219918

Isolator

(SUB FOR TH111416)

1шт.

30

AH132373

Hose

9/16" X 2199 mm (86-1/2") X 9/16" (SUB FOR 4 313708, ALONG W/ R27238, AE24616 AND 14H832)

1шт.

31

4287735

Hydraulic Hose

(SUB FOR AT201206)

1шт.

32

AH132373

Hose

9/16" X 2199 mm (86-1/2") X 9/16"

1шт.

R27238

Fitting

1шт.

AE24616

Elbow Fitting

1шт.

14H832

Nut

9/16"

1шт.

33

4313709

Hose

(SUB FOR AT201225)

1шт.
