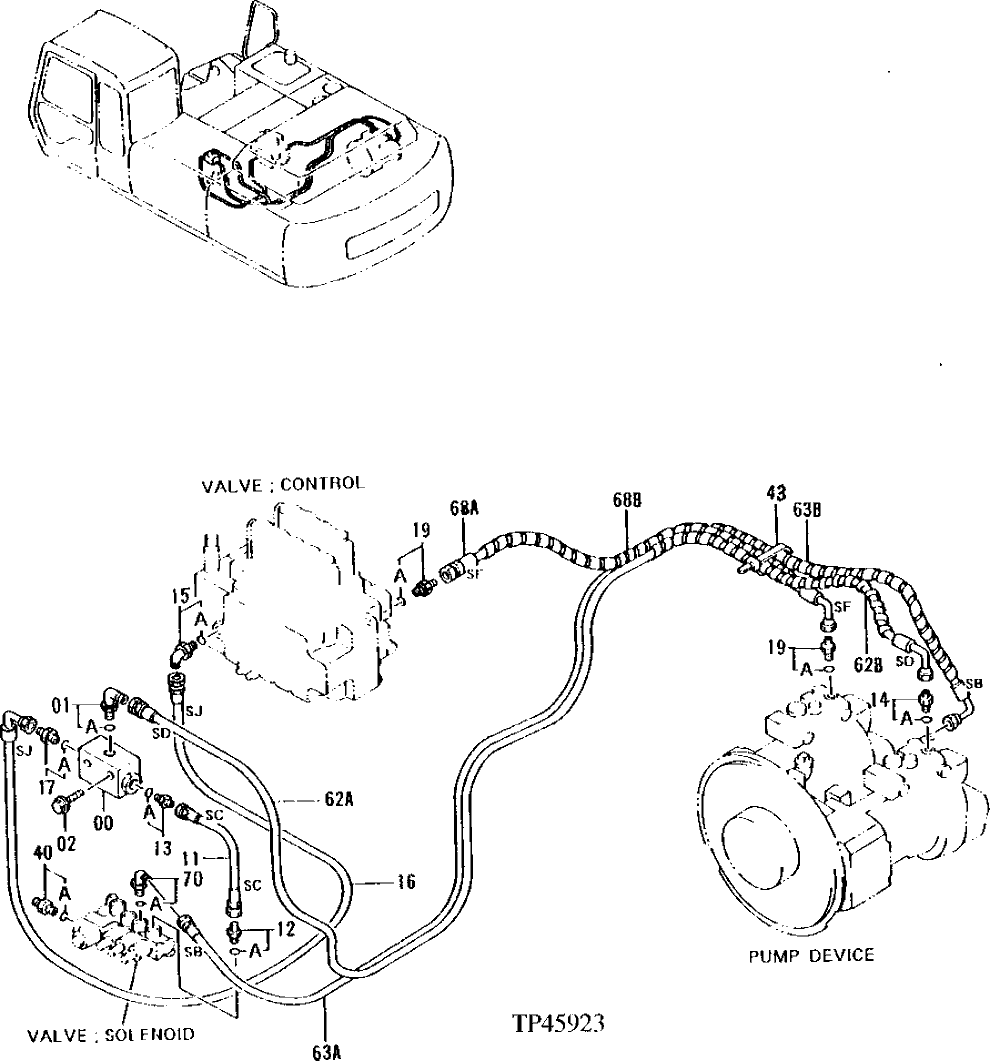

Запчасти John Deere 92ELC 258 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

0

4203447

Flow Control Hyd. Valve

(SUB FOR AT126357) Shuttle

1шт.

1

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

1A

M800650

Packing

1шт.

2

19M8359

Cap Screw

M8 X 45

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

11

4328612

Hydraulic Hose

(SUB FOR AT204751)

1шт.

12

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

12A

M800650

Packing

1шт.

13

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

13A

M800650

Packing

1шт.

14

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

14A

M800650

Packing

1шт.

15

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

15A

M800650

Packing

1шт.

16

4328610

Hydraulic Hose

(SUB FOR AT204750)

1шт.

17

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

17A

M800650

Packing

1шт.

19

4200467

Adapter Fitting

(SUB FOR TH108417)

2шт.

19A

M800650

Packing

1шт.

40

4198407

Adapter Fitting

(SUB FOR AT107395)

1шт.

40A

CH11570

O-Ring

1шт.

43

H77698

Tie Band

1шт.

62A

4343350

Hydraulic Hose

(SUB FOR AT204756)

1шт.

62B

E90991

Hose Guard

(SUB FOR AT204742 OR 4327315) (CTL)

5шт.

63A

4343349

Hydraulic Hose

(SUB FOR AT204755)

1шт.

63B

E90991

Hose Guard

(SUB FOR AT204742 OR 4327315) (CTL)

5шт.

68A

4323581

Hose

(SUB FOR AT201273)

1шт.

68B

E90991

Hose Guard

(SUB FOR AT204742 OR 4327315) (CTL)

3шт.

70

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

70A

M800650

Packing

1шт.
