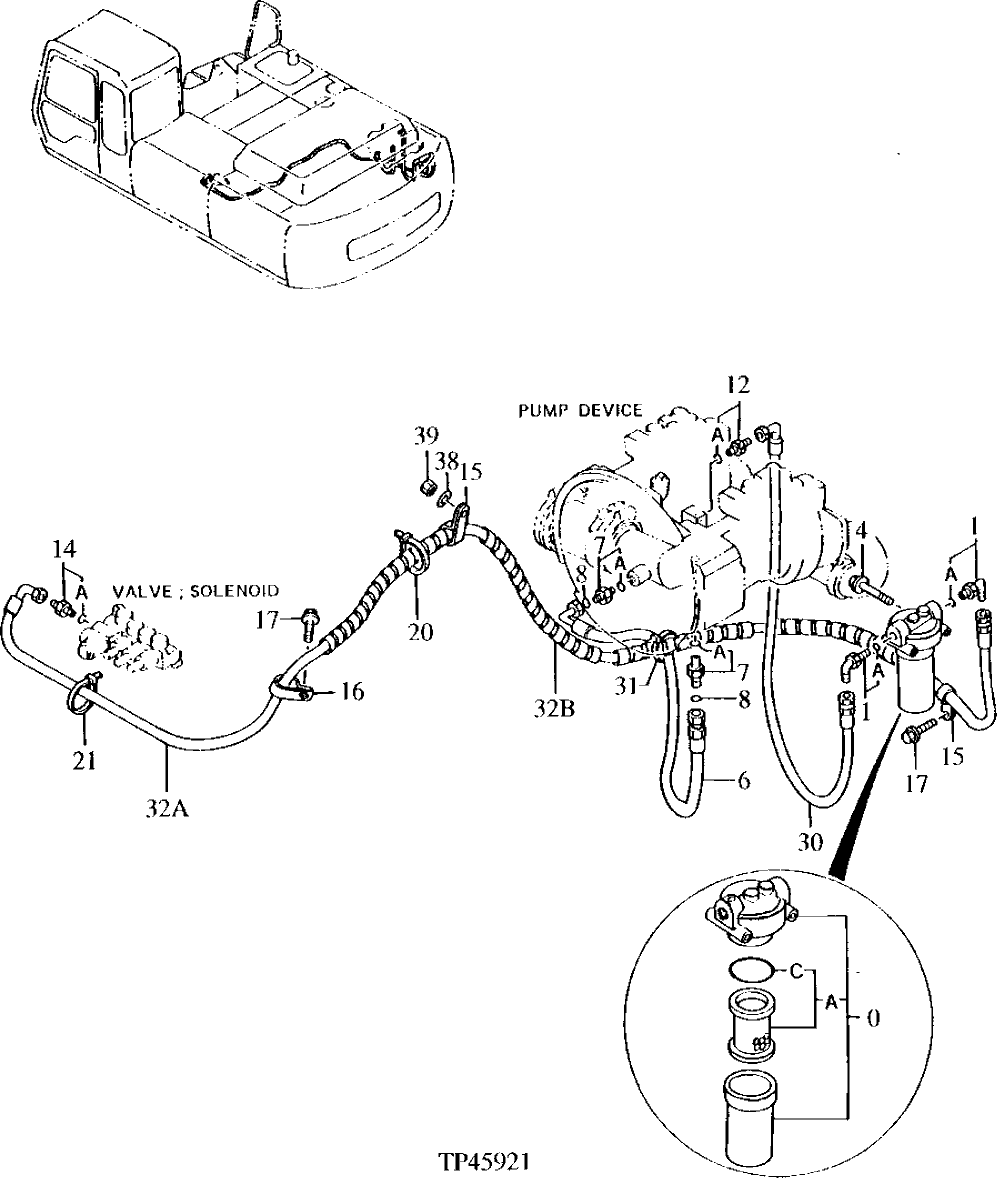

Запчасти John Deere 92ELC 255 - PILOT PIPINGS 3360 Hydraulic System

0

4631976

Oil Filter

(SUB FOR TH108402, 4191300)

1шт.

0A

AT186554

Filter Element

(SUB FOR AT147821)

1шт.

0C

AT264334

O-Ring

(SUB FOR TH100101)

1шт.

1

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

1A

4506418

O-Ring

(SUB FOR U46489)

1шт.

4

19M8093

Cap Screw

M10 X 100

2шт.

12M7066

Lock Washer

10 mm

2шт.

6

AT201241

Hydraulic Hose

1шт.

7

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

7A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

8

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

12

4221290

Adapter Fitting

(SUB FOR AT131902)

1шт.

12A

CH11570

O-Ring

1шт.

14

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

14A

4506418

O-Ring

(SUB FOR U46489)

1шт.

15

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

2шт.

16

AT121321

Hose Clamp

1шт.

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

17

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

18

R72659

Clamp

(SUB FOR AT122384 OR 4 235654) Not Illustrated

1шт.

19

19M7938

Cap Screw

M10 X 20 Not Illustrated

1шт.

12M7066

Lock Washer

10 mm Not Illustrated

1шт.

20

4254600

Clip

(SUB FOR AT154928)

1шт.

21

H77698

Tie Band

1шт.

30

4263040

Hydraulic Hose

(SUB FOR AT201203)

1шт.

31

H77698

Tie Band

1шт.

32A

4319373

Hose

(SUB FOR AT201263)

1шт.

4343351

Hydraulic Hose

(SUB FOR AT204748)

1шт.

32B

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

2шт.

38

12M7066

Lock Washer

10 mm

1шт.

39

14M7274

Nut

M10

1шт.
