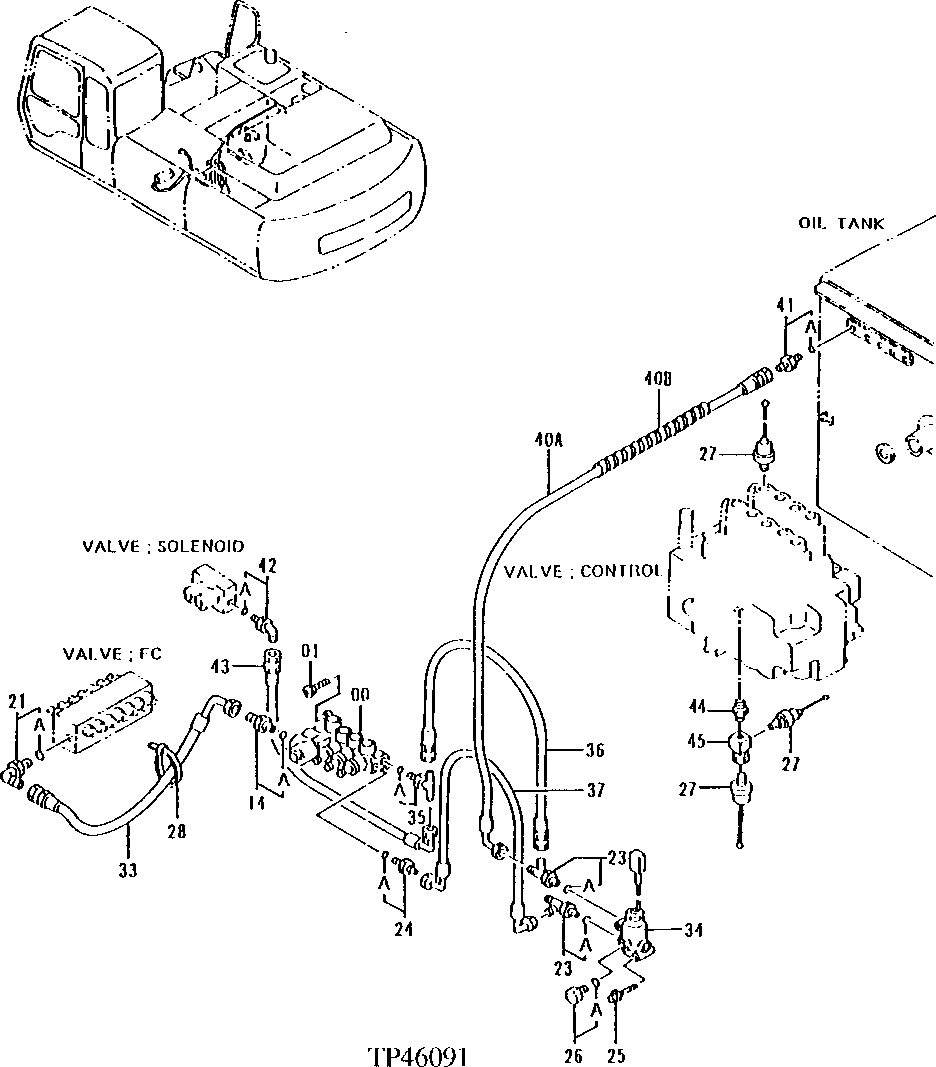

Запчасти John Deere 92ELC 254 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

0

4335667

Solenoid Valve

(SUB FOR AT202573)

1шт.

1

19M8337

Screw

M10 X 30

2шт.

14

X8-10F5OX

Adapter Fitting

(SUB FOR TH110204 OR TH 101006, ALONG W/ U46489)

1шт.

15

4506418

O-Ring

(SUB FOR U46489)

1шт.

21

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

21A

4506418

O-Ring

(SUB FOR U46489)

1шт.

23

4219346

Tee Fitting

(SUB FOR AT132516)

2шт.

23A

M800650

Packing

1шт.

24

4200468

Adapter Fitting

(SUB FOR AT126336)

1шт.

24A

CH11570

O-Ring

1шт.

25

19M7663

Cap Screw

M8 X 70 (USE ALONG W/ 12M7065) (SUB FOR AT204920 OR J010870)

2шт.

12M7065

Lock Washer

8 mm

2шт.

26

AT318013

Drain Plug

(SUB FOR 4093624) (SUB FOR TH102536)

1шт.

26A

M800650

Packing

1шт.

27

4259333

Pressure Switch

(SUB FOR TH108413) Pressure

3шт.

28

H77698

Tie Band

1шт.

33

AT48429

Hydraulic Hose

(SUB FOR AT204744, 4328608, 4278411)

1шт.

34

4342946

Solenoid Valve

(SUB FOR AT202574)

1шт.

35

4269618

Tee Fitting

(SUB FOR AT204938)

1шт.

35A

CH11570

O-Ring

1шт.

36

4442331

Hydraulic Hose

(SUB FOR AT204745 OR 4328975)

1шт.

37

4328985

Hydraulic Hose

(SUB FOR AT204747)

1шт.

40A

4328607

Hydraulic Hose

(SUB FOR AT204743)

1шт.

40B

E90991

Hose Guard

(SUB FOR AT204742 OR 4327315) (CTL)

2шт.

41

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

41A

CH11570

O-Ring

1шт.

42

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

42A

M800650

Packing

1шт.

43

4328978

Hydraulic Hose

(SUB FOR AT204746)

1шт.

44

4242510

Adapter Fitting

(SUB FOR AT126870)

1шт.

45

4242511

Tee Fitting

(SUB FOR AT126871)

1шт.
