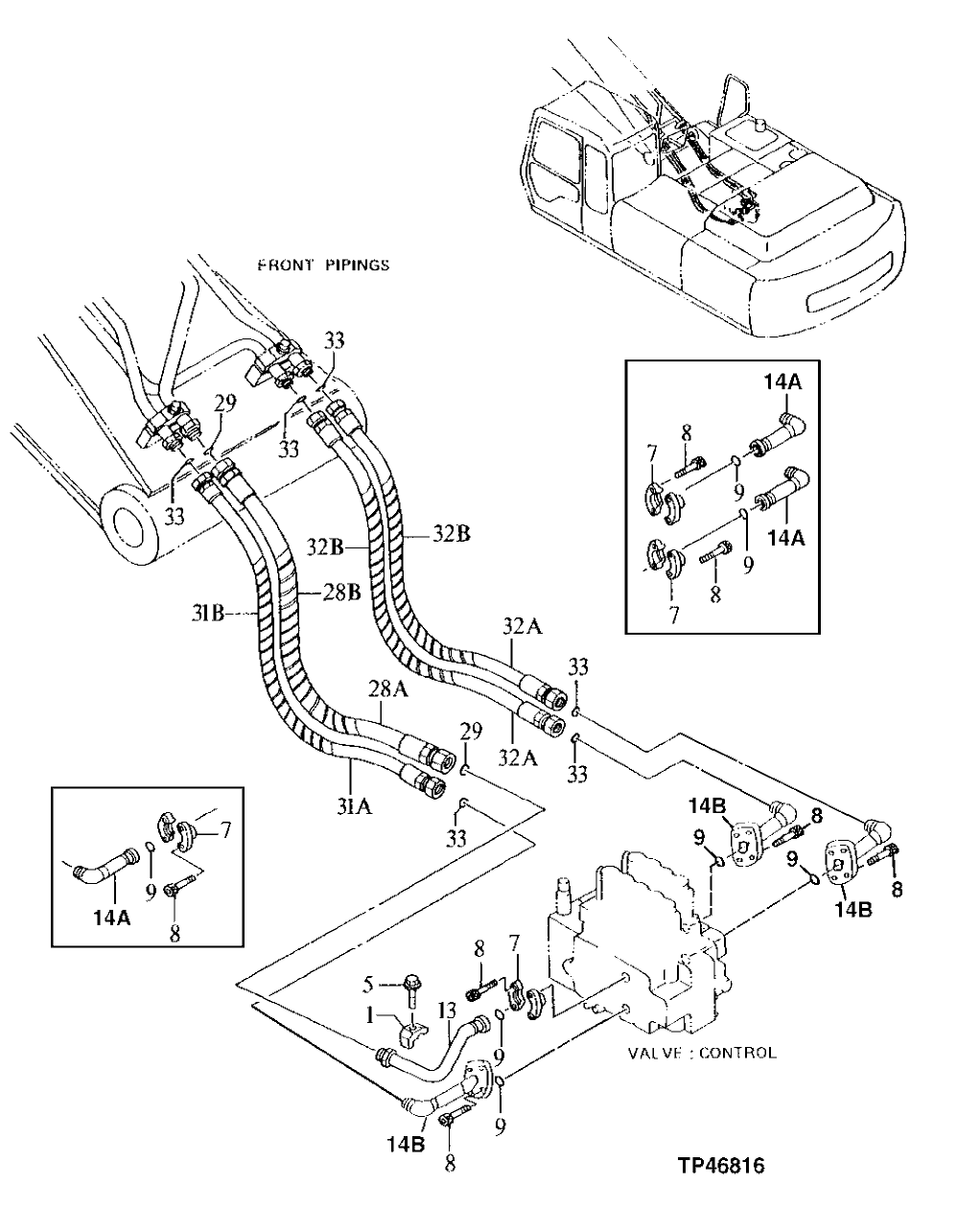

Запчасти John Deere 92ELC 249 - MAIN PIPINGS 3360 Hydraulic System

1

4190127

Clamp

(SUB FOR TH108313)

1шт.

5

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

7

R29424

Flange Fitting

8шт.

R29424

Flange Fitting

2шт.

8

19M8337

Screw

M10 X 30

16шт.

9

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

4шт.

13

8056514

Line

(SUB FOR AT201150)

1шт.

14A

Pipe

(SUB AT172838) ( AT201195 NLA)

3шт.

14B

8064228

Line

(SUB FOR AT172838)

3шт.

28A

4314977

Hose

(SUB FOR AT201233)

1шт.

28B

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

ARшт.

29

T78612

O-Ring

2шт.

31A

4314978

Hose

(SUB FOR AT201234)

1шт.

31B

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

ARшт.

32A

4314979

Hose

(SUB FOR AT201235)

2шт.

32B

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

ARшт.

33

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

6шт.
