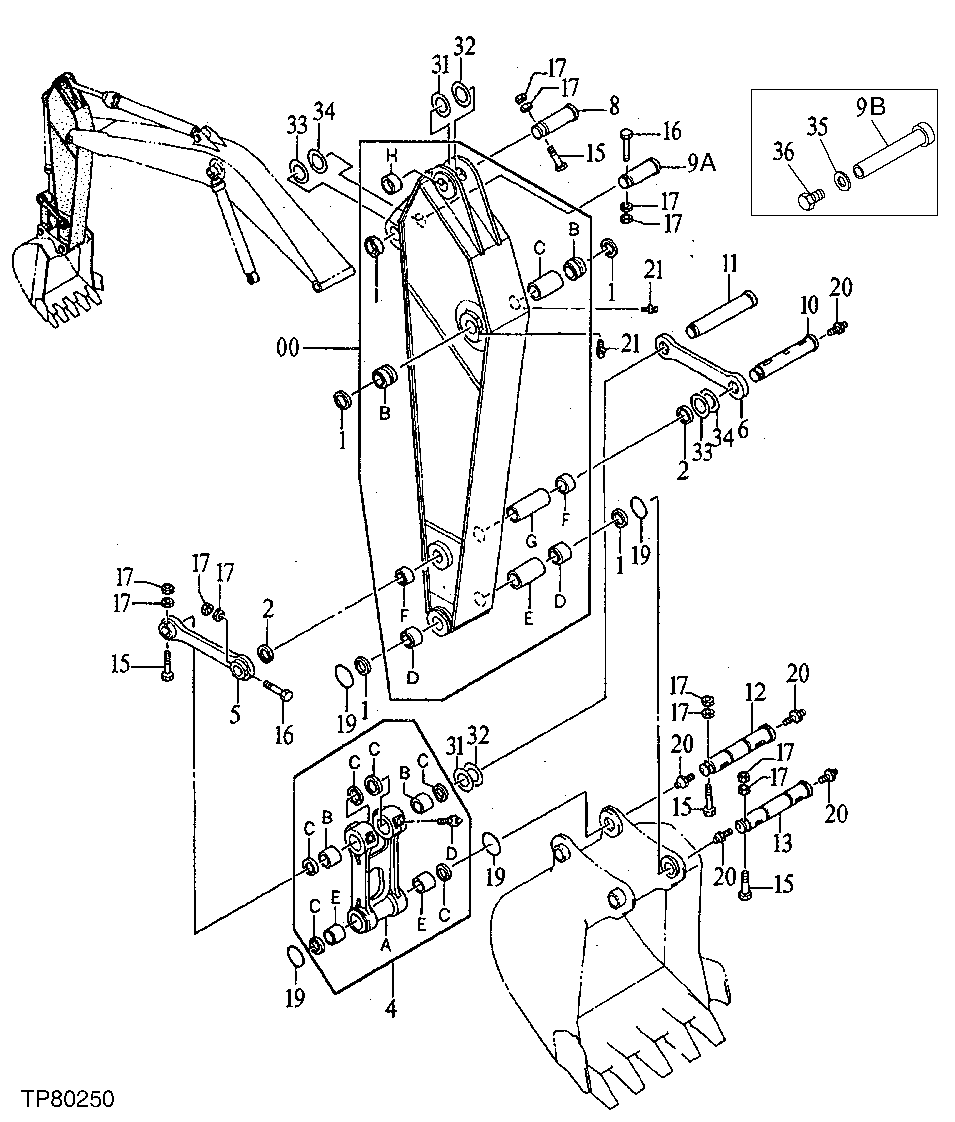

Запчасти John Deere 92ELC 245 - Short Arm 2.66M 3340 Frames

0

7027210

Arm

(SUB FOR AT201121) (SUB F OR AT161158) (WHOLEGOODS)

1шт.

0B

3069629

Bushing

(SUB FOR AT164647)

2шт.

0C

4143372

Spacer

(SUB FOR TH103213)

1шт.

0D

AT200986

Bushing

2шт.

0E

4313282

Spacer

(SUB FOR AT201049)

1шт.

0F

TH103216

Bushing

2шт.

0G

4143371

Spacer

(SUB FOR TH103217)

1шт.

0H

TH103198

Bushing

101.600 X 127 X 49.276 mm (4" X 5" X 1.940")

1шт.

0I

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

1шт.

1

TH102411

Seal

4шт.

2

TH102445

Seal

(I.D. 100 MM O.D. 115 MM)

2шт.

4

8050126

Link

(SUB FOR AT201129)

1шт.

4A

Link

1шт.

4B

TH111170

Bushing

2шт.

4C

TH102411

Seal

6шт.

4D

TH100074

Lubrication Fitting

2шт.

4E

AT200987

Bushing

2шт.

5

8050397

Link

(SUB FOR AT201130)

1шт.

6

3055521J

Link

(SUB FOR AT200979 OR 3055521)

1шт.

8

TH111180

Pin Fastener

100 X 293 mm (3-15/16" X 11.535")

1шт.

9A

TH103204

Pin

(FOR STANDARD-DUTY APPLICATIONS)

1шт.

9B

AT189262

Pin

(FOR HEAVY-DUTY APPLICATIONS) (USE W/ AT189263 AND 19M7488)

1шт.

10

TH111181

Pin Fastener

1шт.

11

TH111182

Pin Fastener

100 X 546 mm (3-15/16" X 21.496")

1шт.

12

TH112086

Pin Fastener

1шт.

13

AT164648

Pin Fastener

1шт.

15

19M8100

Cap Screw

M20 X 180

4шт.

16

19M8503

Cap Screw

M20 X 160

2шт.

17

14M7277

Nut

M20

12шт.

19

4100180

O-Ring

Standard O-Ring

4шт.

AT349467

Seal

Split O-Ring

4шт.

20

TH100074

Lubrication Fitting

5шт.

21

T116334

Lubrication Fitting

2шт.

31

4189839

Washer

(SUB FOR TH106305)

ARшт.

32

4189838

Washer

(SUB FOR TH106306)

ARшт.

33

TH106307

Washer

ARшт.

34

TH106308

Washer

ARшт.

35

AT189263

Bushing

(FOR HEAVY-DUTY APPLICATIONS) (USE W/ AT189262 AND 19M7488)

1шт.

36

19M7488

Cap Screw

M16 X 40 (FOR HEAVY-DUTY APPLICATI ONS) (USE W/ AT189262 AND AT189263)

1шт.

40

AT176005

Arm

(WHOLEGOODS) (INCLUDES SHORT ARM, BUCKE T CYLINDER AND LINKAGE) Not Illustrated Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

90

AT349467

Seal

(SUB FOR T238397)(NOT ILL USTRATED) Not Illustrated

1шт.

19M9304

Cap Screw

M5 X 90 Not Illustrated

1шт.

14M7572

Lock Nut

M5 Not Illustrated

1шт.

24M7027

Washer

5.300 X 10 X 1 mm Not Illustrated

1шт.
