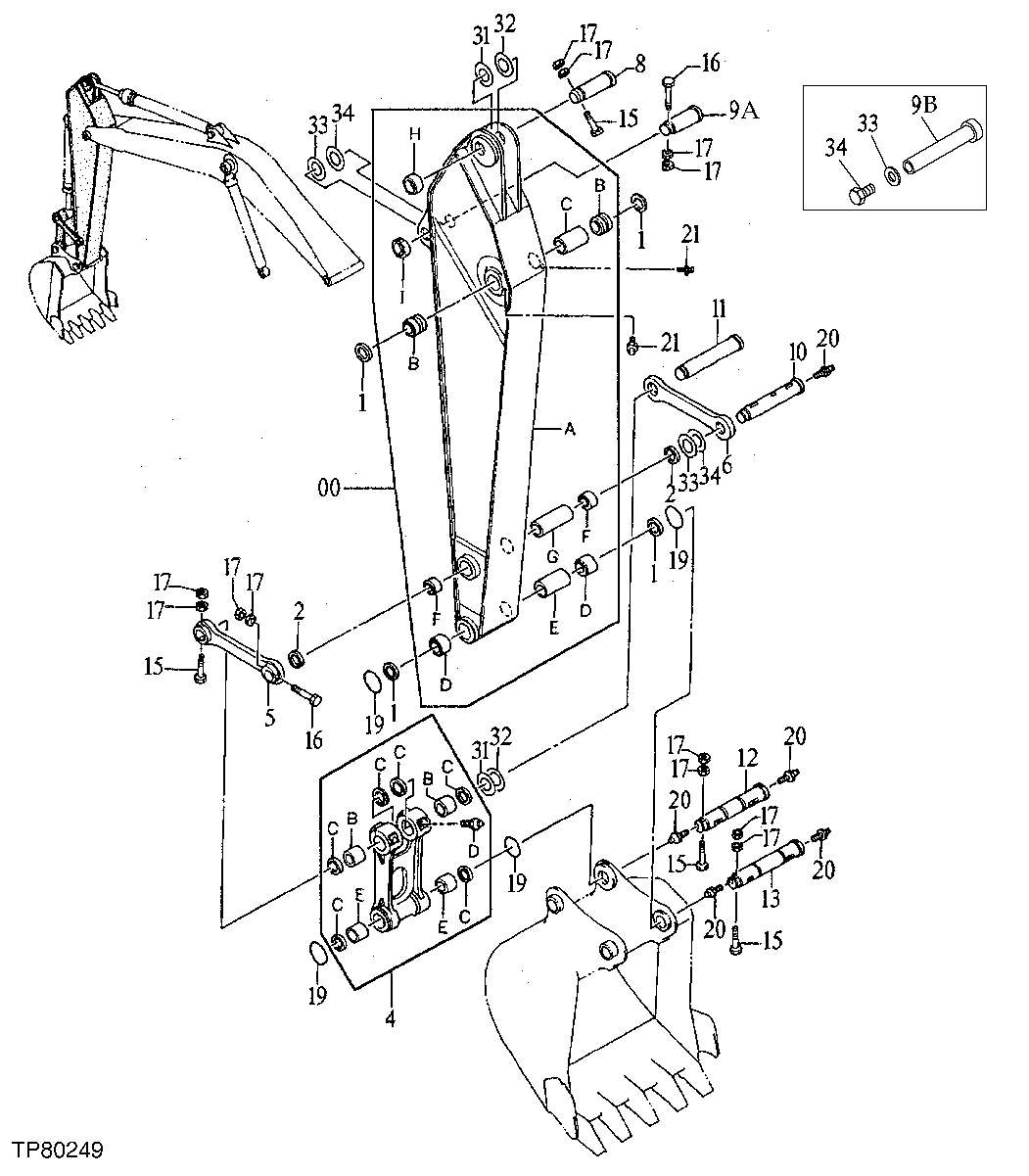

Запчасти John Deere 92ELC 244 - Standard Arm 3.2m 3340 Frames
№
Артикул
Название
Примечание
Количество
0
7027036
Arm
NLA, SUB FOR AT161159 Whole Goods
1шт.
0A
Arm
1шт.
0C
4143372
Spacer
SUB FOR TH103213
1шт.
0D
AT200986
Bushing
2шт.
0E
4313282
Spacer
SUB FOR AT201049
1шт.
0F
TH103216
Bushing
2шт.
0H
TH103198
Bushing
101.600 X 127 X 49.276 mm (4" X 5" X 1.940")
1шт.
0I
TH102409
Bushing
92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")
1шт.
1
TH102411
Seal
4шт.
2
TH102445
Seal
I.D. 100 MM O.D. 115 MM
2шт.
4
8050126
Link
SUB FOR AT201129
1шт.
4B
TH111170
Bushing
2шт.
4C
TH102411
Seal
6шт.
4D
TH100074
Lubrication Fitting
2шт.
4E
AT200987
Bushing
2шт.
5
8050397
Link
SUB FOR AT201130
1шт.
6
3055521J
Link
SUB FOR AT200979 OR 3055521
1шт.
8
TH111180
Pin Fastener
100 X 293 mm (3-15/16" X 11.535")
1шт.
9A
TH103204
Pin
FOR STANDARD-DUTY APPLICATIONS
1шт.
9B
AT189262
Pin
FOR HEAVY-DUTY APPLICATIONS, USE W/ AT189263 AND 19M7488
1шт.
10
TH111181
Pin Fastener
1шт.
11
TH111182
Pin Fastener
100 X 546 mm (3-15/16" X 21.496")
1шт.
12
TH112086
Pin Fastener
1шт.
13
AT164648
Pin Fastener
1шт.
15
19M8100
Cap Screw
M20 X 180
4шт.
16
19M8503
Cap Screw
M20 X 160
2шт.
AT349467
Seal
Split O-Ring
4шт.
20
TH100074
Lubrication Fitting
5шт.
21
T116334
Lubrication Fitting
2шт.
31
4189839
Washer
SUB FOR TH106305
ARшт.
32
4189838
Washer
SUB FOR TH106306
ARшт.
33
TH106307
Washer
ARшт.
34
TH106308
Washer
ARшт.
35
AT189263
Bushing
FOR HEAVY-DUTY APPLICATIONS, USE W/ AT189262 AND 19M7488
1шт.
36
19M7488
Cap Screw
M16 X 40 FOR HEAVY-DUTY APPLICATI ONS, USE W/ AT189262 AND AT189263
1шт.
40
AT175816
Arm
INCLUDES STANDARD ARM, BUCKET CYLIND ER AND LINKAGE Whole Goods Not Illust rated Contains All Items On This Page
1шт.
90
AT349467
Seal
Not Illustrated SUB FOR (1) T238397
1шт.
19M9304
Cap Screw
M5 X 90 Not Illustrated
1шт.
14M7572
Lock Nut
M5 Not Illustrated
1шт.
24M7027
Washer
5.300 X 10 X 1 mm Not Illustrated
1шт.
Выбрано товаров: 44
